Products > Farm Implements > Harrows > Suspension Middle-duty Disc Harrow

Product name : Suspension Middle-duty Disc Harrow

Product No. : 2017210135350

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

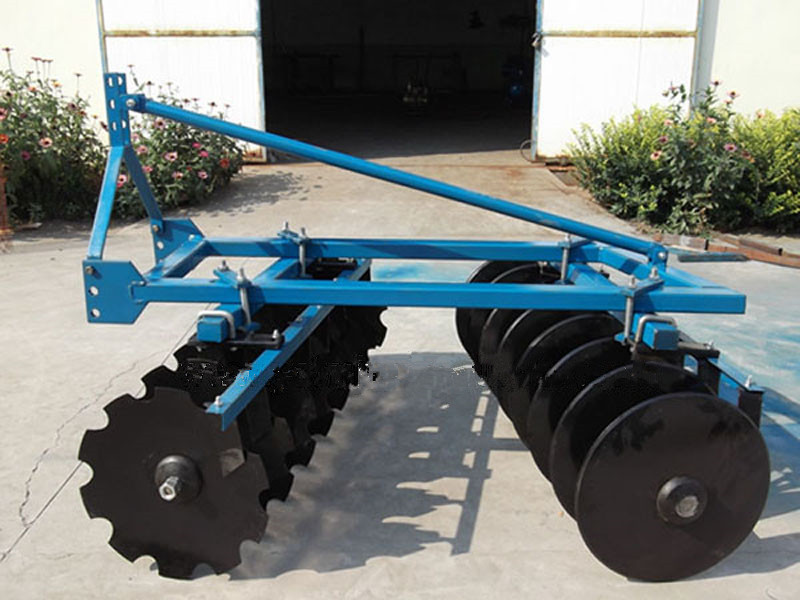

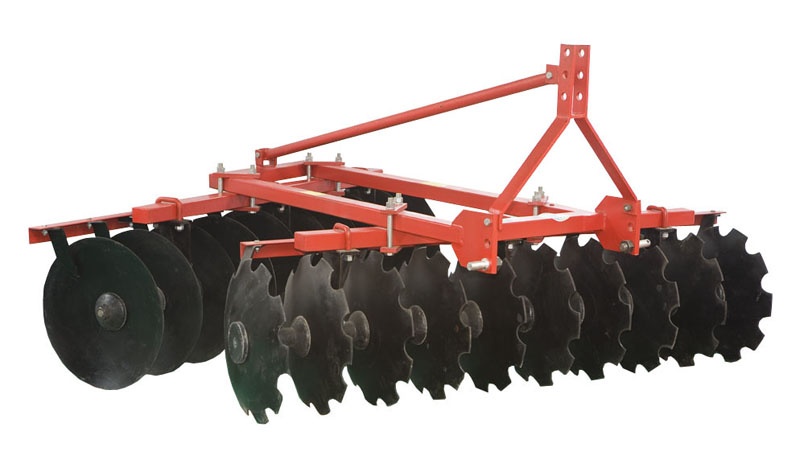

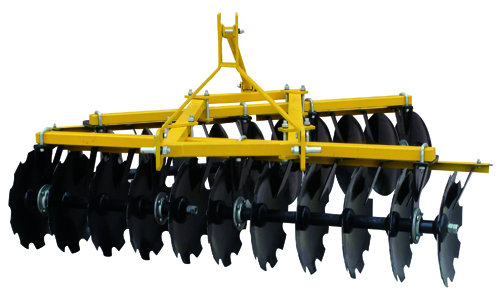

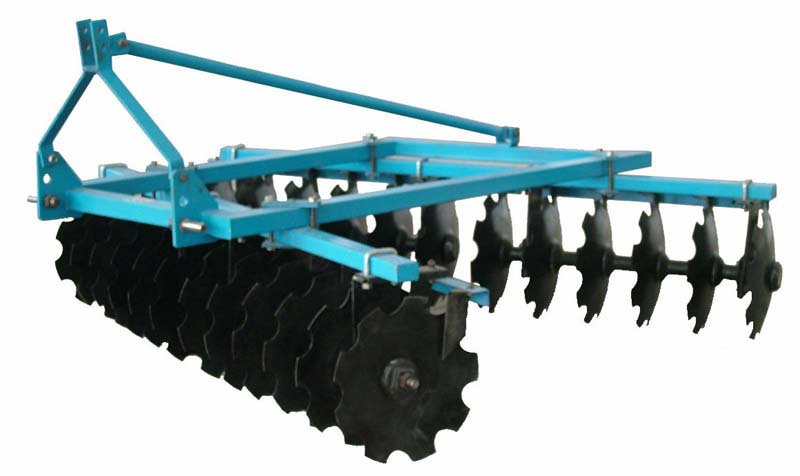

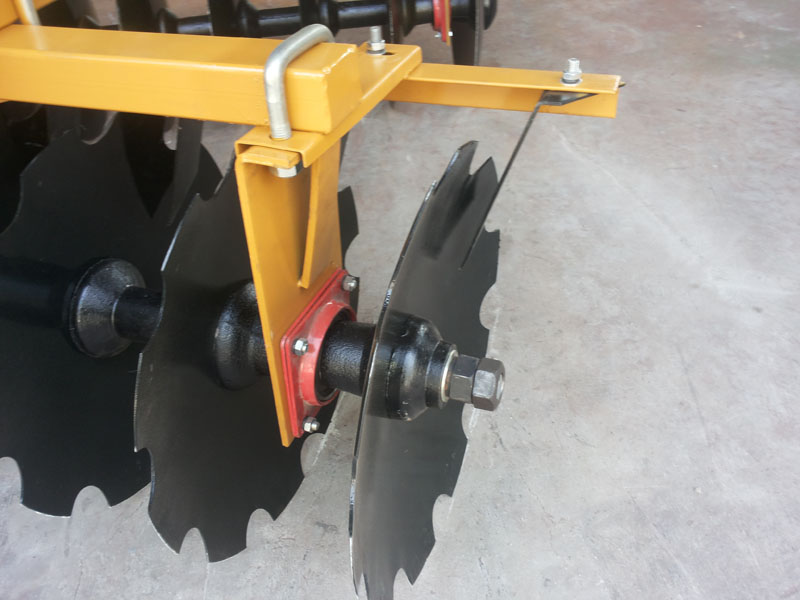

Suspension Middle-duty Disc Harrow

Name	The 16-blade harrow	The 18-blade harrow	The 20-blade harrow	The 22-blade harrow	The 24-blade harrow	The 28-blade harrow	The 32-blade harrow	The 40-blade disc harrow
Type	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5	1BJX-3.0	1BJX-3.4	1BJX-4.4
Weight(kg)	390	430	463	604	700	1300	1400	1750
Working width (m)	1.7	2.0	2.2	2.4	2.5	3.0	3.4	4.4
Working depth (cm)	14	14	14	14	14	14	14	14
Ground clearance(mm)	≥260
Working angle	14、17、20、23
Matched power (hp)	45	50	55-60	65	75	80	100	100
