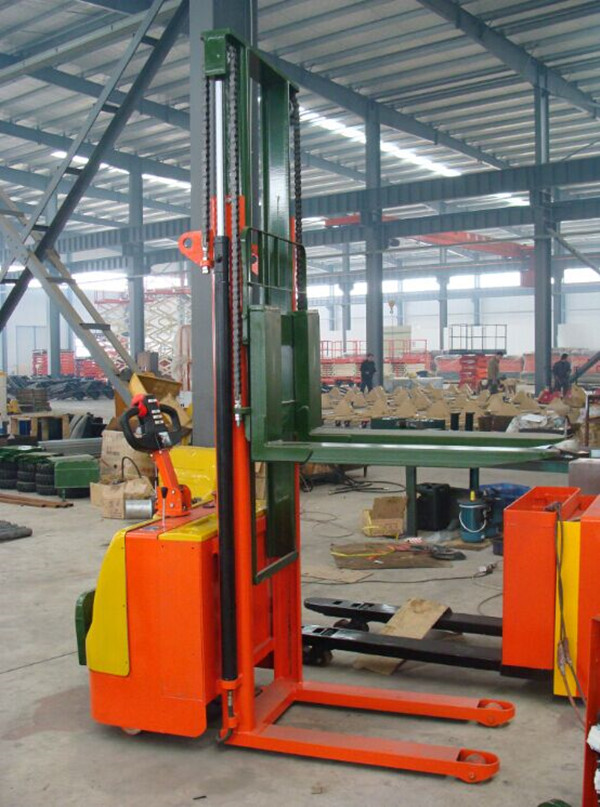

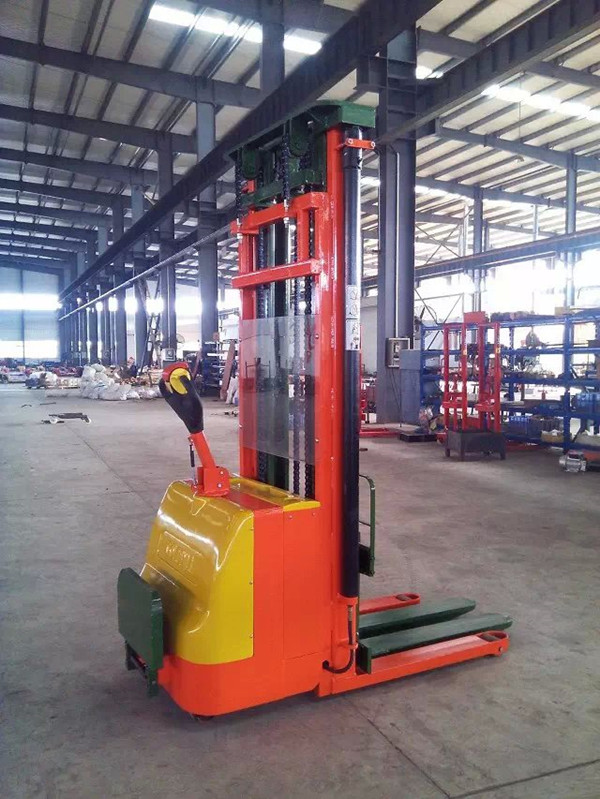

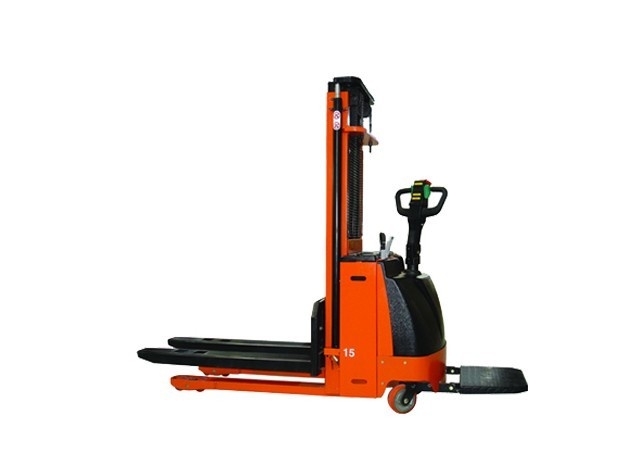

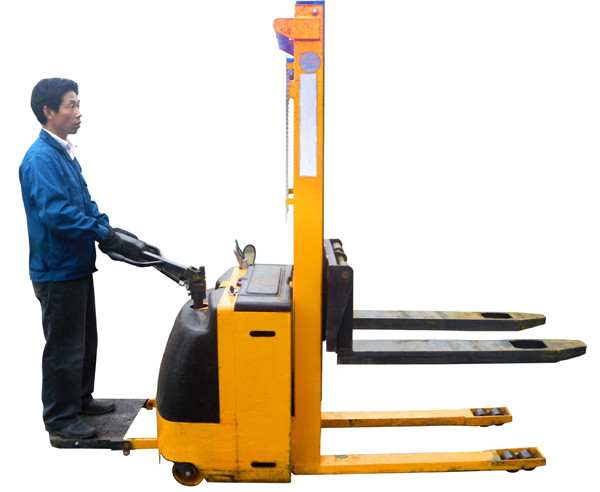

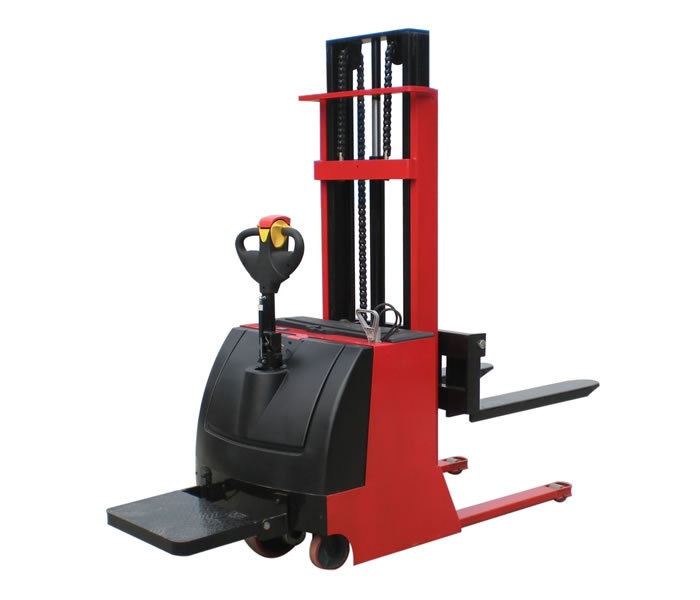

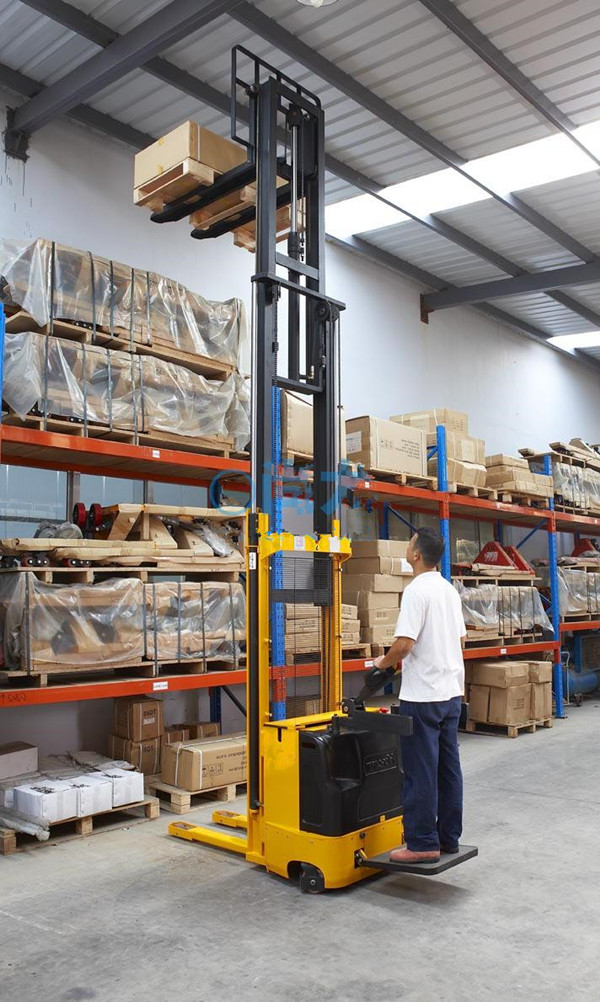

1000kg Power Stacker

1. New design,national patented products. Unique Transformers series appearance.
2. External intelligent charger,reliable and convenient;
3. High-power motor shortens lifting time and enhances efficiency;
4. Ergonomic handle design,easy to operate;
5. Low center of gravity ensures the stable operation;
6. Emergency power disconnect ensures safety;
7. Battery indicator easily monitors battery level.

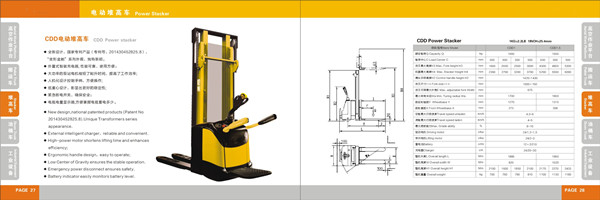

Model		CDD1				CDD1.5
Capacity	kg	1000				1500
Max.Fork height	mm	1600	2000	2500	3000	1600	2000	2500	3000	3500	4500	4800	5300
Load center		5000
Max.stacker height		2390	2790	3290	3790	2390	2790	3290	3790	4040	5290	5590	6090
Control handle height		1420-1430
Fork size		1000x160
Max.adjustable fork width		675
Min.turning radius		1700									1800
Wheelbase		1270									1315
Front wheelbase		273									308
Travel speed unladen	km/h	4.5-6
Travel speed laden		4-5
Max.grade ability	%	8-10
Driving motor	v/kw	24/1.2-1.5
Lifting motor		2024/2/3
Battery	v/Ah	12x2/210
Charger	v/A	24/20-30
Overall length	mm	1886									1960
Overall width		820									1020
Overall height		2100	1600	1850	2100	2100	1600	1850	2100	2350	2170	2270	2433
Net weight	kg	700	760	790	810	700	760	790	810	810	1100	1130	1180
