Wuhan XinKai Machinery Co.,Ltd

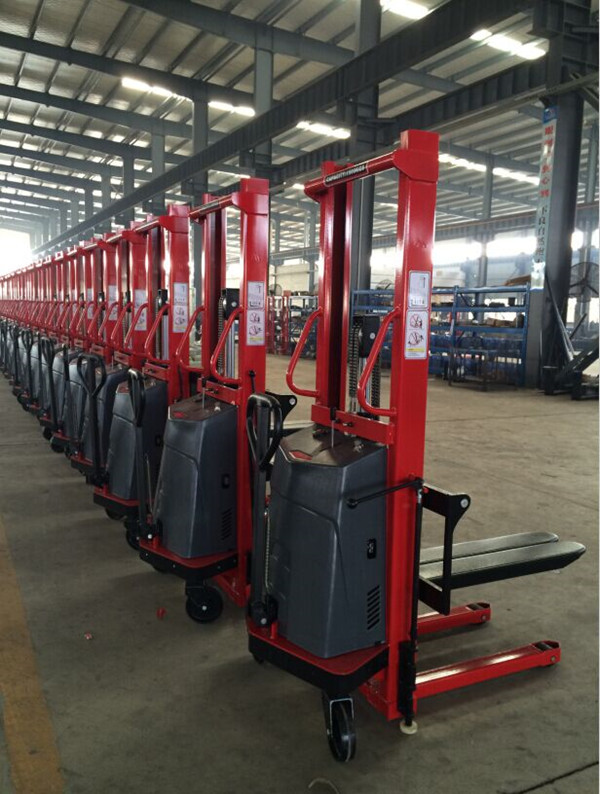

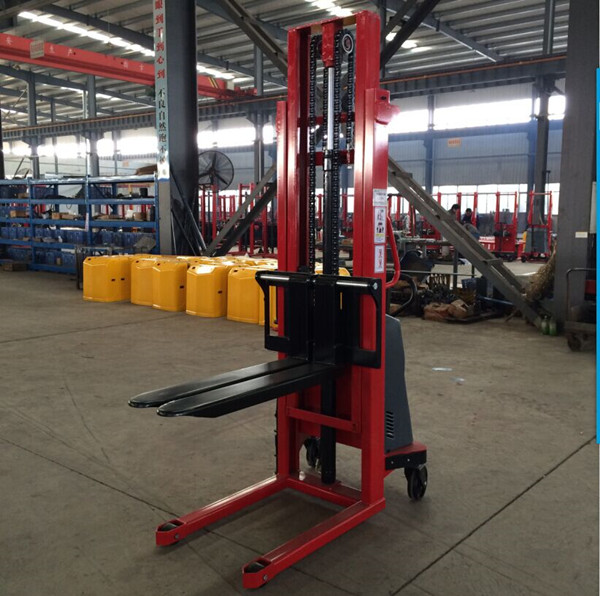

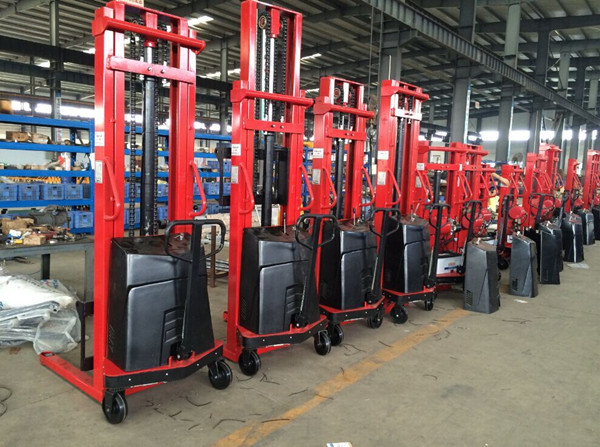

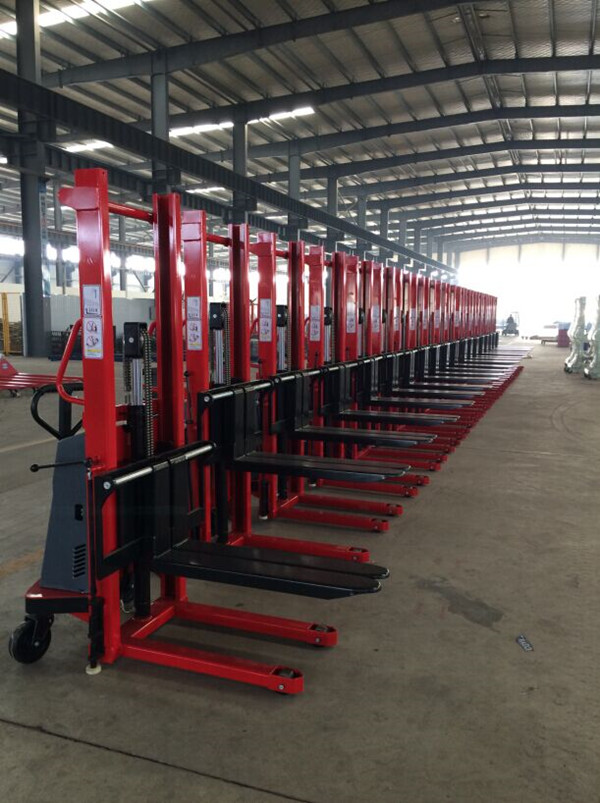

1.5ton Semi-Electric Stacker

1. New design,national patented products. UniqueTransformers series appearance.
2. C-Model steel mast, firm and safe.
3. The surface is coated with powder painting, torsion & fading-resistant.
4. Bearing type rollers and chain wheel without assembly error, flexible and nimble.

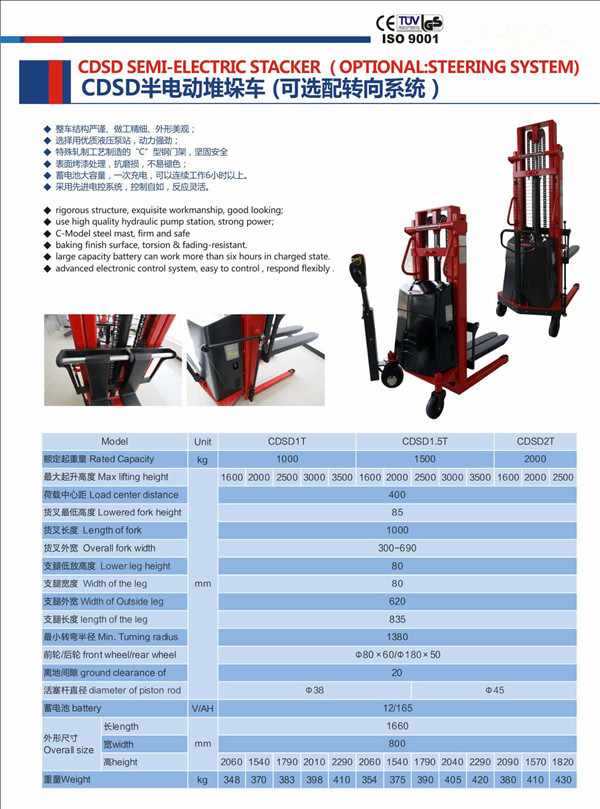

Model		Unit	CDSD1T	CDSD1.5T	CDSD2T
Capacity		kg	1000	1500	2000
Max lifting height		mm	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500	1600/2000/2500/3000
Length of forks			1000
Load center distance			400
Lowered fork height			85
Adjustable fork width			300-690
Max lifting speed		m/min	2.9
Min turning radius			1350
Front wheel / Rear wheel		mm	80x60 /180x50
Battery		V/Ah	12/165
Working voltage		V	12
Weight		kg	368/378/388/398/410	390/410/430/450/470	410/440/470/490
Overall size	length	mm	1660
	width		800
	height		2060/1540/1790/2040/2290	2060/1540/1790/2040/2290	2090/1570/1820/2070
