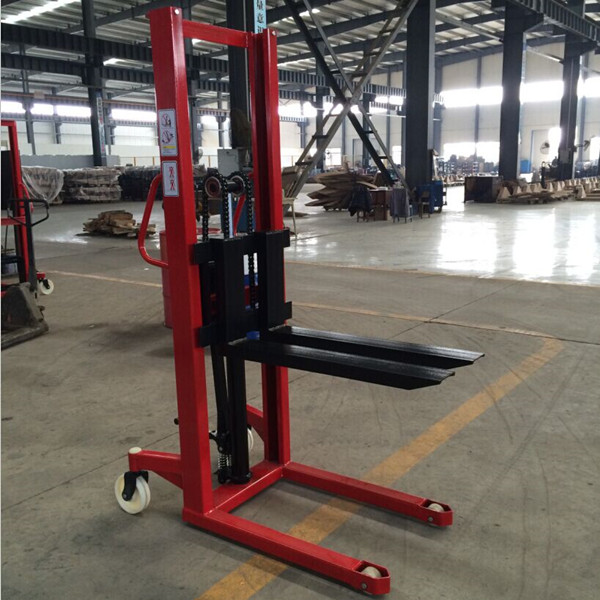

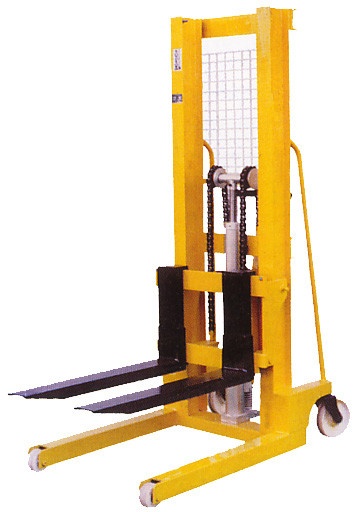

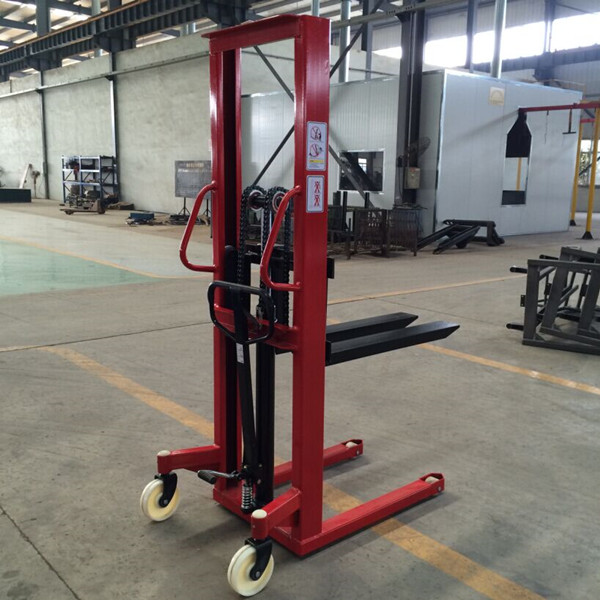

2000kg Hand Stacker

1. Lifting goods by hydraulic, light maerial handling equipment.
2. Top quality C-type steel.
3. Compact structure, good looking, high performance, flexible and safe.
4. Adjustable forks, straddle-leg design handles various widths and ensures safety.
5. The minimized turning radius allows it to be used in the most confined space and narrow aisle such as
in stores, small warehouses and factories.

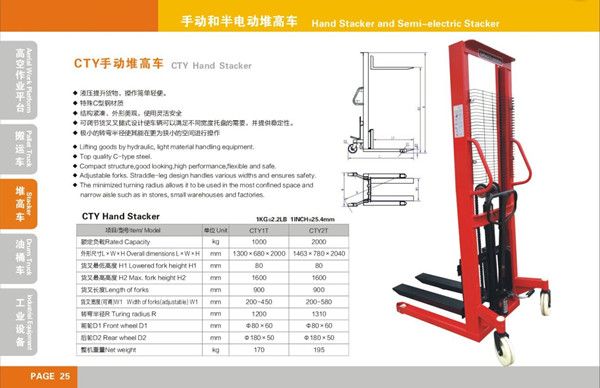

Model	Unit	CTY1T	CTY2T
Rated Capacity	kg	1000	2000
Overall Dimension	mm	1300*680*2000	1463*780*2040
Lowered fork height H1	mm	80	80
Max.fork height H2	mm	1600	1600
Length of forks	mm	900	900
Width of forks W1	mm	200-450	200-580
Turning radius R	mm	1200	1310
Front wheel D1	mm	φ80*60	φ80*60
Rear wheel D2	mm	φ180*50	φ180*50
Net weight	kg	170	195
