Electric Order Picker with 300kg Capacity and 2.7m Lifting Height

1. Designed for such narrow space as warehouses, workshops, elevators, supermarkets, subway station, etc and
also meet the needs of certain aerial work; Hydraulic lifting  pumps with high power and good quality;
2. Low gravity center provides good stability.

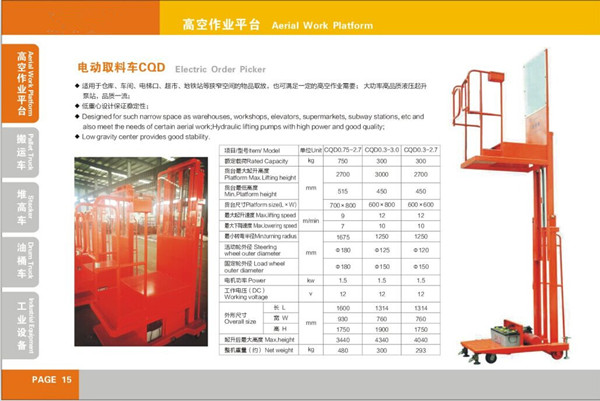

Model		Unit	CQD0.75-2.7	CQD0.3-3.0	CQD0.3-2.7
Capacity		kg	750	300	300
Max. lifting height		mm	2700	3000	2700
Min. platform height		mm	515	450	450
Platform size (LxW)		mm	700*800	600*800	600*600
Max. lifting speed		m/min	9	12	12
Max. lowering speed		m/min	7	10	10
Min.turning radius		mm	1675	1250	1250
Wheel outer diameter		mm	180	125	120
Outer diameter		mm	180	150	150
Power		kw	1.5	1.5	1.5
Working voltage		V	12	12	12
Overall size	Length	mm	1600	1314	1314
	Width	mm	930	760	760
	Hight	mm	1750	1900	1750
Max. height		mm	3440	4340	4040
Net weight		kg	480	300	293
