Wuhan XinKai Machinery Co.,Ltd

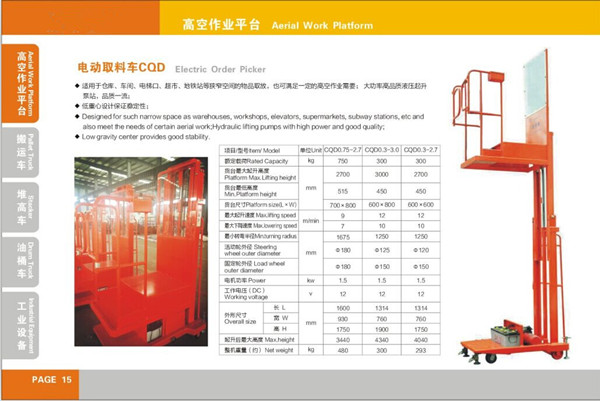

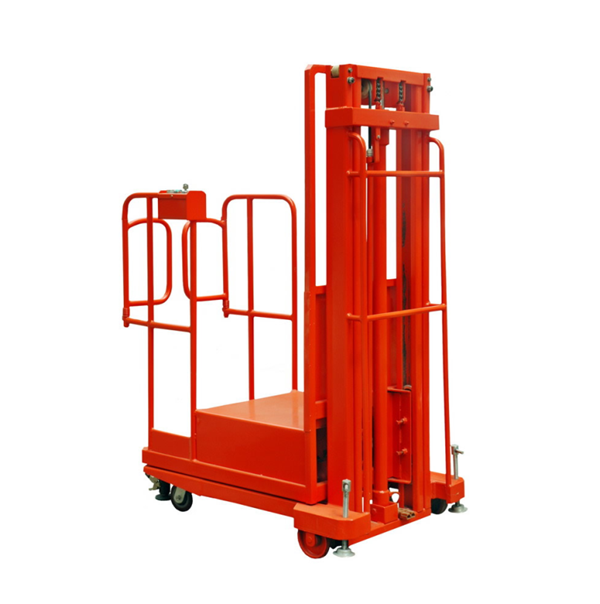

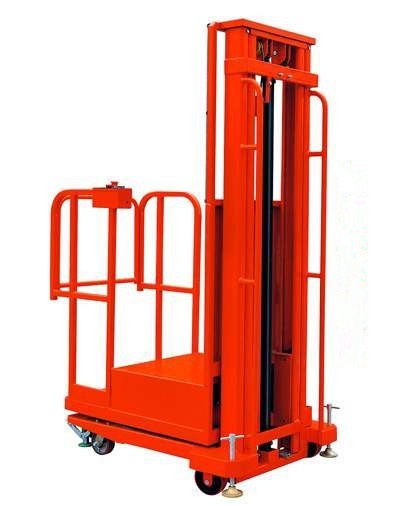

 Electric Order Picker

1. Designed for such narrow space as warehouses, workshops, elevators, supermarkets,  subway station, etc
and also meet the needs of certain aerial work; Hydraulic lifting pumps with high power and good quality;
2. Low gravity center provides good stability.

Model		Unit	CQD0.75-2.7	CQD0.3-3.0	CQD0.3-2.7
Capacity		kg	750	300	300
Max. lifting height		mm	2700	3000	2700
Min. platform height		mm	515	450	450
Platform size (LxW)		mm	700*800	600*800	600*600
Max. lifting speed		m/min	9	12	12
Max. lowering speed		m/min	7	10	10
Min.turning radius		mm	1675	1250	1250
Wheel outer diameter		mm	180	125	120
Outer diameter		mm	180	150	150
Power		kw	1.5	1.5	1.5
Working voltage		V	12	12	12
Overall size	Length	mm	1600	1314	1314
	Width	mm	930	760	760
	Hight	mm	1750	1900	1750
Max. height		mm	3440	4340	4040
Net weight		kg	480	300	293
