Wuhan XinKai Machinery Co.,Ltd

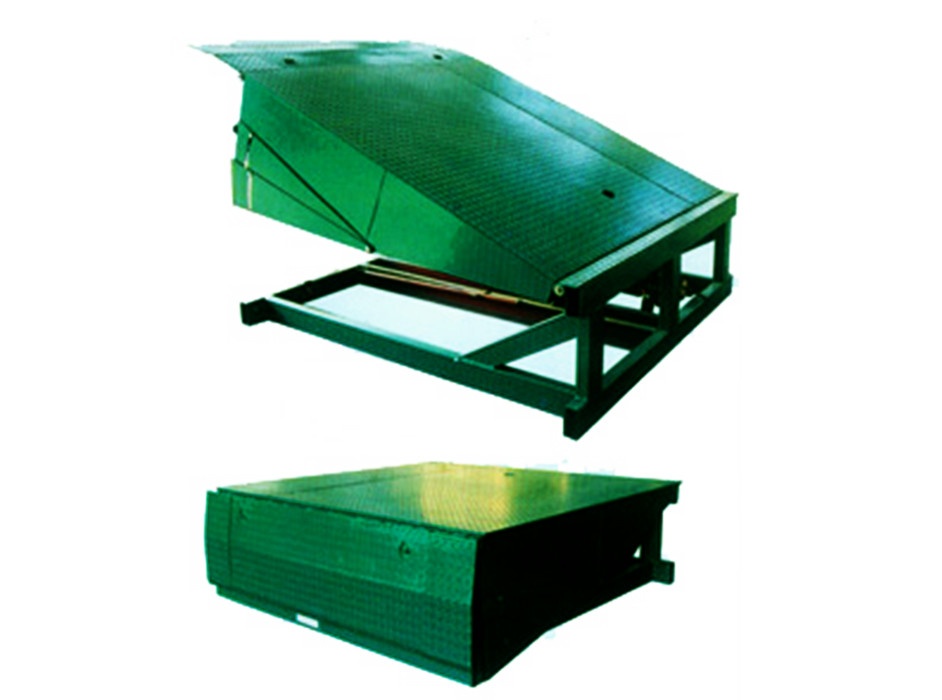

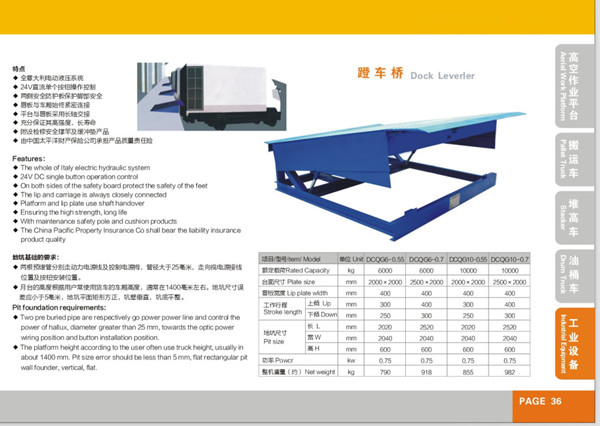

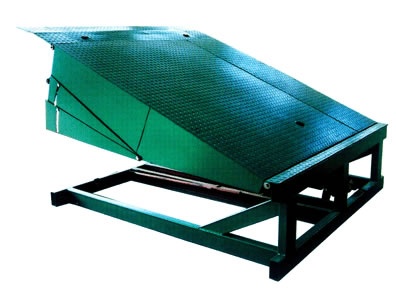

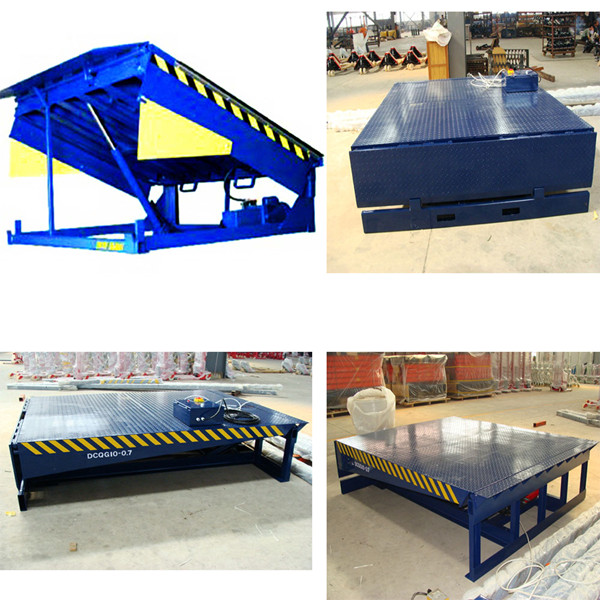

Dock Leverler DCQG6-0.55

1. The whole of Italy electric hydraulic system;
2. 24V DC single button operation control;
3. on both sides of the safety boardprotect the safety of the feet;
4. The lip and carriage is always closely connected;
5. Platform and lip plate use shaft handover;
6. Ensuring the high strength, long life;
7. With maintenance safety pole and cushion products;
8. The china Pacific Property Insurance Co shall bear the liability insurance product quality.

Model		Unit	DCQG6-0.55	DCQG6-0.7	DCQG10-0.55	DCQG10-0.7
Capacity		kg	6000	6000	10000	10000
Plate size		mm	2000*2000	2500*2000	2000*2000	2500*2000
Lip plate width		mm	400	400	400	400
Stroke length	Up	mm	300	400	300	400
	Down	mm	250	300	250	300
Pit size	Length	mm	2020	2520	2020	2520
	Width	mm	2040	2040	2040	2040
	Height	mm	600	600	600	600
Power		kw	0.75	0.75	0.75	0.75
Net weight		kg	790	918	855	982
