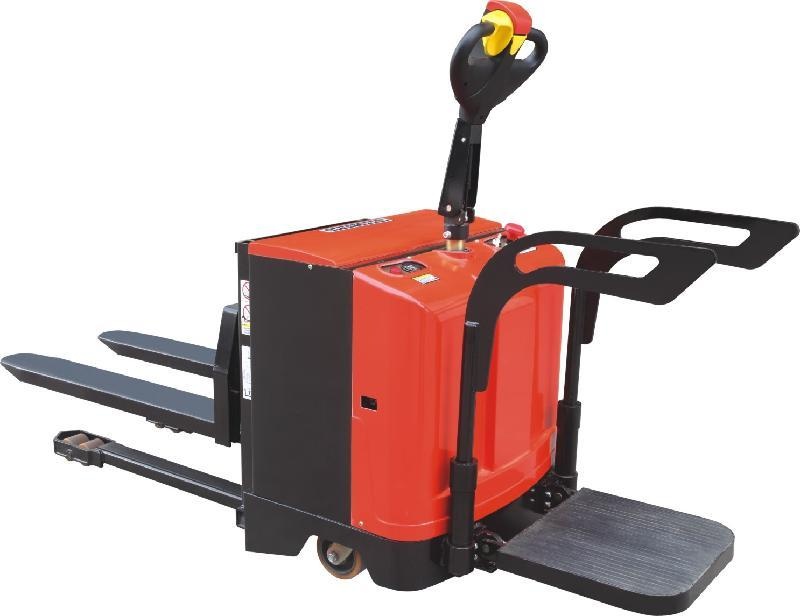

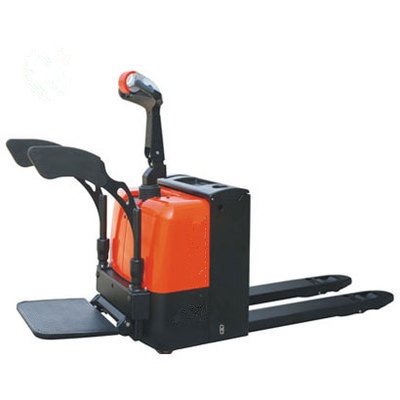

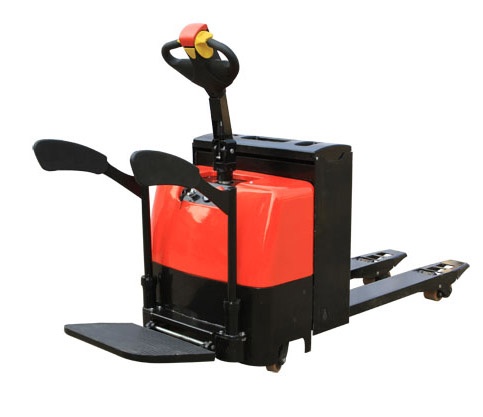

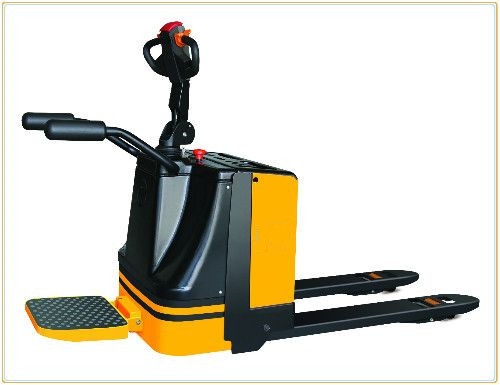

 Power  Pallet Truck

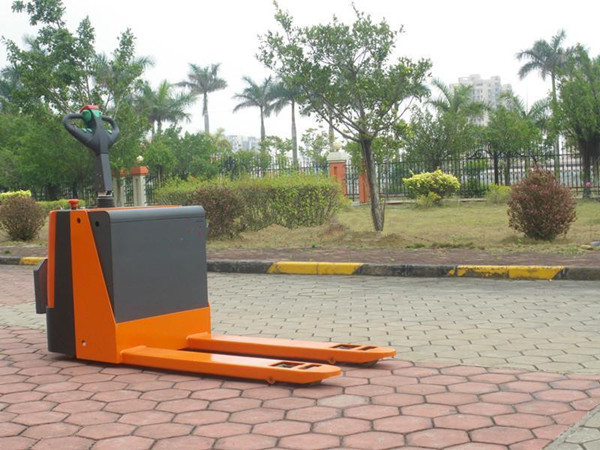

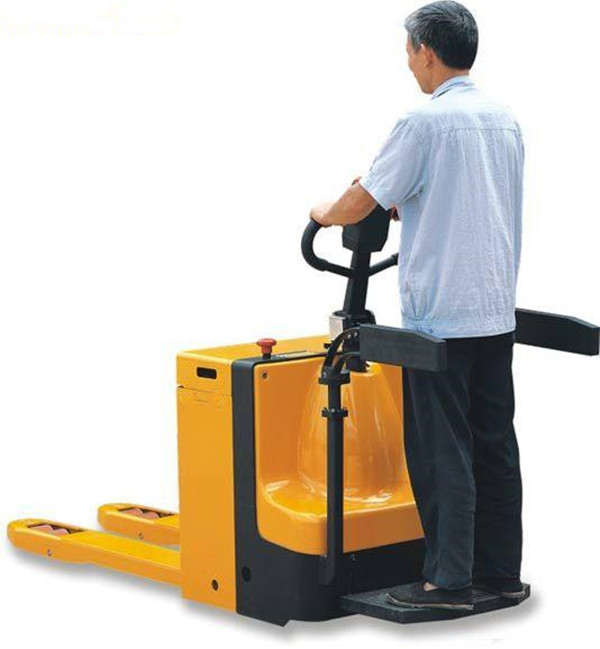

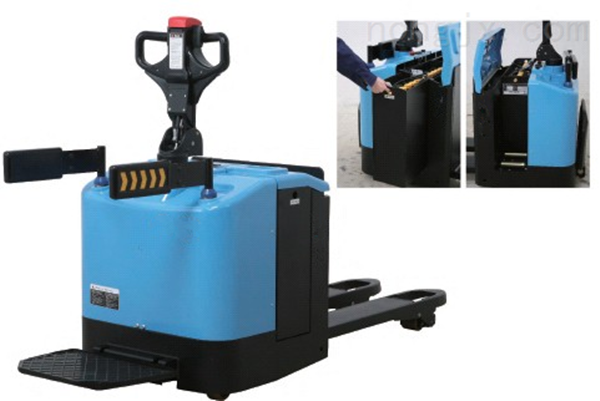

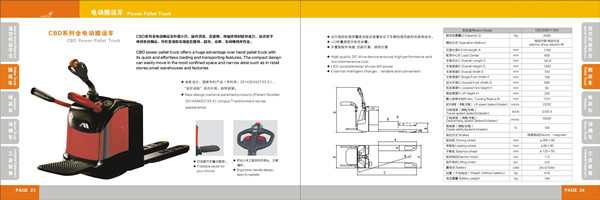

CBD power pallet truck offers a huge advantage over hand pallet truck with its quick and effortless loading and transporting features.
The compact design can easily move in the most confined space and narrow aisle such as in retail stores, small warehouses and factories.

1. New design, national pateneted products. Unique transformaers series apperance.
2. High quality  DC drive device ensures high performance and low maintenance cost.
3. LED coulombmeter shows left power.
4. External intelligent charger, reliiable and convenient.

Model		CBD (680*1150)
Capacity Q	kg	2000
Operation Method		electric drive, elcetric lift
Fork length A	mm	1150
B Load Center	mm	600
Overall Length C	mm	1919
Overall Length D	mm	1359
Overall Width E	mm	740
Single Fork Width F	mm	160
Overall Fork Width G	mm	680
Lowered fork height h	mm	85
Lift height H	mm	200
Min.Turning Radius R	mm	1701
Lift speed (loaden/unloaden)	mm/s	22/32
Travel Speed (Loaden/unloaden)	km/h	3.6/5.4
Descending speed(loaden/unloaden)	mm/s	55/50
Grade Ability (loaden/unloaden)	%	58
Brakes		Eletric-magnetic
Driving wheel	mm	φ250*80
Loading wheel	mm	φ80*80
balance wheel	mm	φ125*50
electric motor	kw	1.5
lifting motor	kw	0.8
battery	v/Ah	24V/210AH
weight(without battery)	kg	618
battery weight	kg	185
