Wuhan XinKai Machinery Co.,Ltd

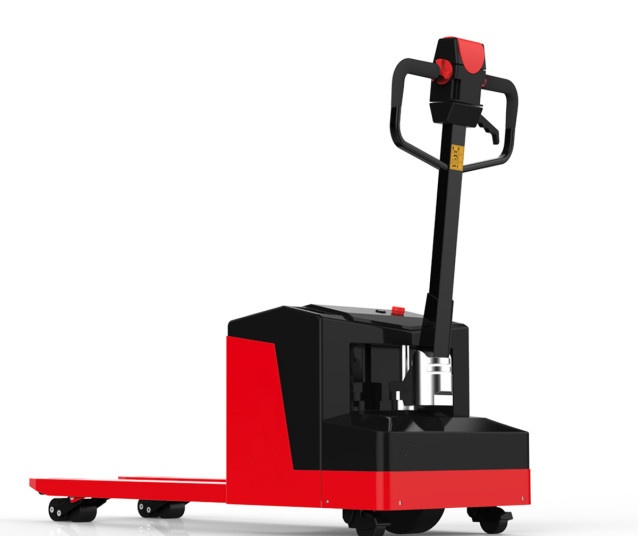

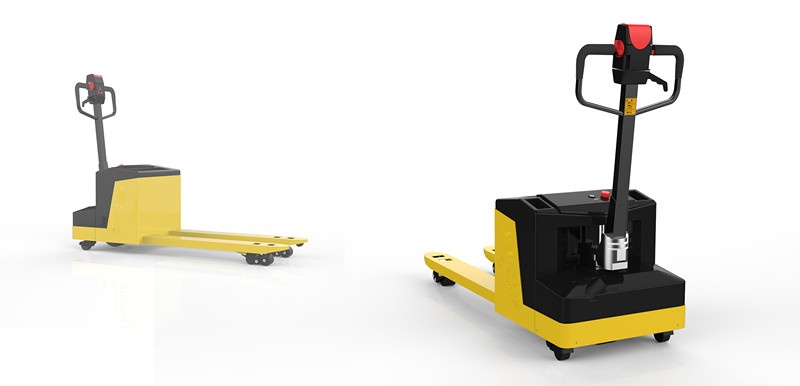

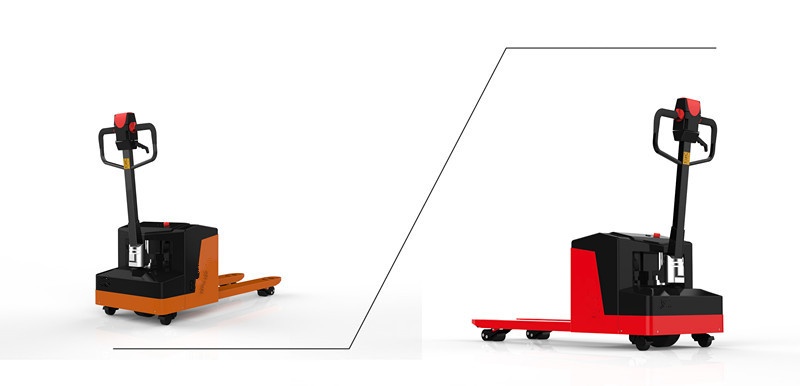

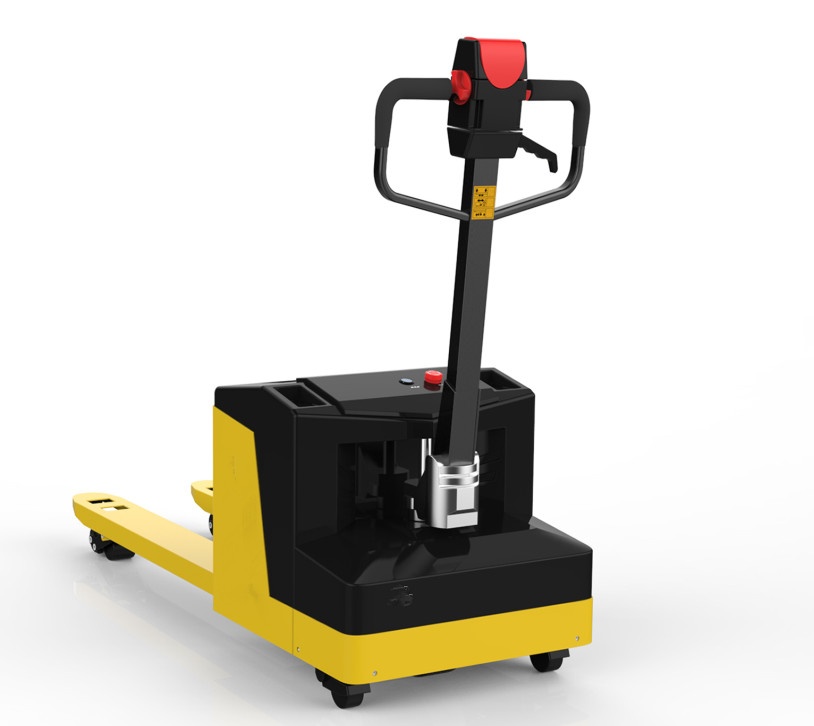

Semi-Electric Pallet Truck

1. New design, national patented products. Unique Transformers series appearance;
2. Offers ab electric drive with a manual lift;
3. Battery indicator easily monitors your battery level;
4. Compact structure, save space, easily travel at the narrow aisle;
5. Ergonomic handle design, easy to operate without professional training;
6. Easy for maintaining access and repair.

Model	Unit	CBDB
Capacity	kg	2000
Operation method		electric drive, manual lift
Fork width	mm	550
Fork length	mm	1150
Single fork width	mm	150
Load center	mm	600
Max. lifting height	mm	200
Min. height	mm	85
Min.turning radius	mm	1630
Lift speed	mm/time	8
Travel speed (laden / unladen)	km/h	4/6
Descending speed	mm	controllable
Grade ability(laden / unladen)	%	5/8
Brakes		electric-magnetic
Driving wheel	mm	250*80
Loading wheel	mm	80*68
Balance wheel	mm	80*34
Electric motor	kw	1.5
Battery	V/Ah	24V / 85Ah
Overall length	mm	1800
Overall width	mm	680
Overall height	mm	1245
Net weight	kg	280
