Products > Forklift > > 2ton LPG Forklift

Product name : 2ton LPG Forklift

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

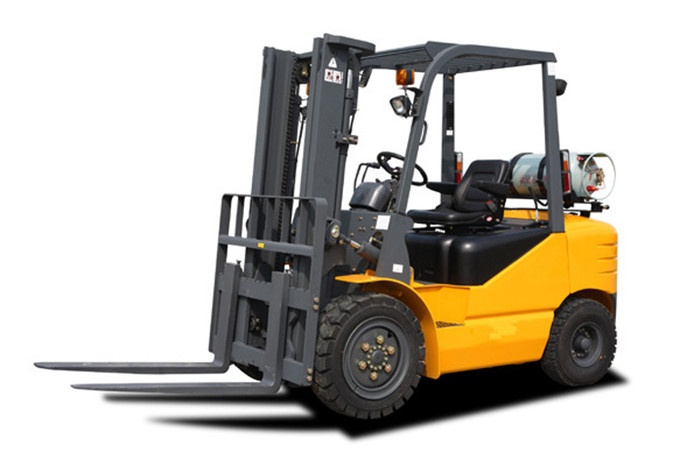

2ton LPG Forklift

Model		unit	CPQY20		CPQY25			CPQY30			CPQY35
Rated capacity		kg	2000		2500			3000			3500
Load capacity		mm	500
Power type			Gasoline/LPG/CNG Forklift
Gearbox change speed type			Hydraulic/Mechanical
Grade ability		%	21/20	27/20		18/20	23/20		20/20	20/20
Lifting height		mm	3000
Free lift		mm	140		140			145			145
Tilting angles			6/12
Min.turning radius		mm	2170		2240			2460			2540
Min.under-clearance		mm	110		110			135			135
Wheel base		mm	1650		1650			1700			1700
Tread	Front	mm	970		970			1000			1000
	Rear	mm	970		970			970			970
Dimension	Overall length	mm	2502		2576			2682			2775
	Overall width	mm	1170		1170			1225			1225
	Overall height	mm	2070		2070			2090			2090
Travel speed	With load	Km/h	17		17			18			18
	Without load		19		19			19			19
Lifting speed	With load	Mm/s	470		470			430			410
	Without load		600		600			500			450
Tire type			Pneumatic
Tyre	Front tyre		7-12-12PR		7-12-12PR			28*9-15-12PR			28*9-15-12PR
	Rear tyre		6-9-10PR		6-9-10PR			6.5-10-10PR			6.5-10-10PR
Total weight		kg	3550		3880			4380			4750
Engine	Engine model		Chinese GQ-4Y
	Rated power	kw	34
	Max. torque	nm	142
	No of cylinder		4
	Engine fuel tank capacity	L	60
