Wuhan XinKai Machinery Co.,Ltd

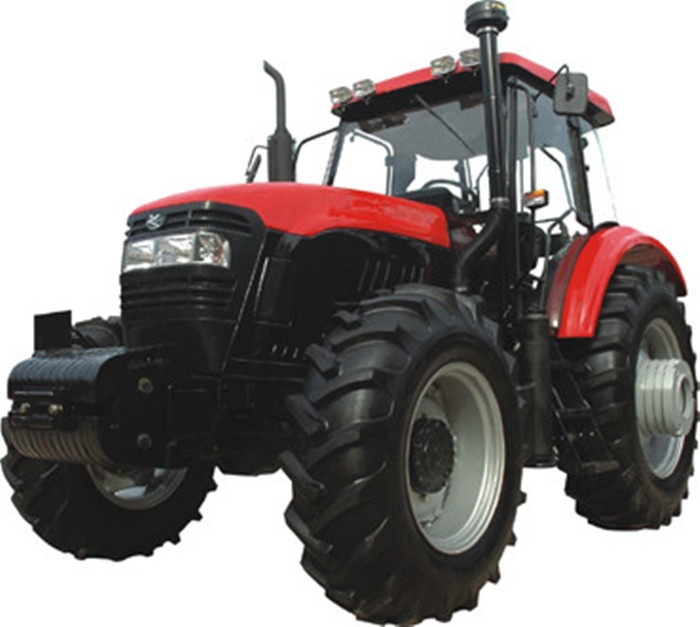

Model LT1004

Type

4x4

Diesel Engine

Diesel model

YTO DONGFANGHONG Diesel Engine LR4M3Z-23

Type

Vertical, water-cooled, 4-stroke, direct injection, natural aspiration

Engine power/speed

73.5kw & 2300r/min

Cylinder

4No.s

Fuel Consumption

≤242 g/KW.h

Engine Oil Consumption

≤2.04 g/KW.h

Weight

Structure mass

3960/3800kg(with cab/without cab)

Min. using mass

4250/4090kg(with cab/without cab)

Front counterweight

max.270kg

Rear counterweight

max.470kg

Parameters (1&2&3&4)

1).Min. turning circle radius

4.2+ 0.3m/ 4.9+0.3m (unilateral/ not unilateral brake)

2).Rated traction force

23.2KN

3).Speed range(Forward/Reverse)

33.69-1.58/34.67-2.41 km/h

Gear

16F+8R

4). Front & Rear Wheel Specification

Front wheel spec.

11.2-24

Rear wheel spec.

16.9-34

Overall Dimensions

Min. Ground clearance

379mm (low-side from front driving axle)

Wheelbase

2195mm

Front wheel tread

1610mm

Rear wheel tread

1620-2020mm (1620mm dispatching from factory)

Overall dimension (L*W*H)

4396*2038*2810mm

Note: L includes front counterweight;

H includes exhaust outlet.
