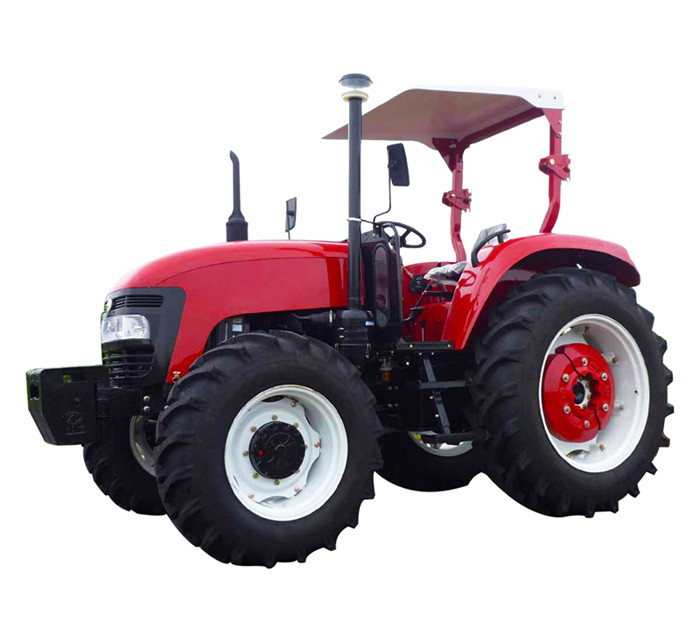

Tractor

Parameters

Model

JM-904

Drive Type

4WD

Overall Dimensions

L*W*H(mm)

4396×2038×2810

Wheel  Track

(mm)

Front

1610

Rear

1620-2020

Wheel Bass(mm)

2195

Ground Clearance(mm)

379

Rated Traction Force(N)

20800

Construction Mass(kg)

3620

Min. Turning Radius(m)

4.0

Theoretical

Speed(km/h)

Forward

(creep)

2.31 2.6 5.76 8.03 10.04 15.61 24.98 34.85 0.46 0.72 1.15 1.61 2.00 3.12 4.99 6.97

Reverse

(creep)

3.10 4.83 7.73 10.78 0.62 0.97 1.54 2.16

Engine

Model

4MC-T79A1

Type

4-Cylinder Vertical, Water Cooled, 4 Stroke Cycle

Rated Power(kw/hp)

66.2(90)

Rated Speed(rpm)

2300

Bore×Stroke(mm)

110×135

Total Displacement(L)

5.13

Drive

System

Clutch

Dual stage

Gear Box

(4+1) ×2×2 Sleeve Gear Shift

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Different Lock

Sliding Pin, Foot Operated

Final Transmission

Planeatry Reduction Gear

Traveling

Mechanism

Type

Front

11.2-24 or 12.4-24

Rear

16.9-34

Steering Gear

Hydraulic Steering

Brake

Disc Type

Working Device

Hydraulic System

Lifting Capacity

at 610mm

Behind Lift Point(N)

16000

3-Point Suspension

Category:11

P.T.O

Shaft

Roating Speed(rpm)

540/1000 or

720/1000

Spline Size

6-φ38Rectangle

Options

Roll bar, Canopy, Shuttle, Hydraulic, Steering, Dual stage clutch,

Turf Tyer, Cab
