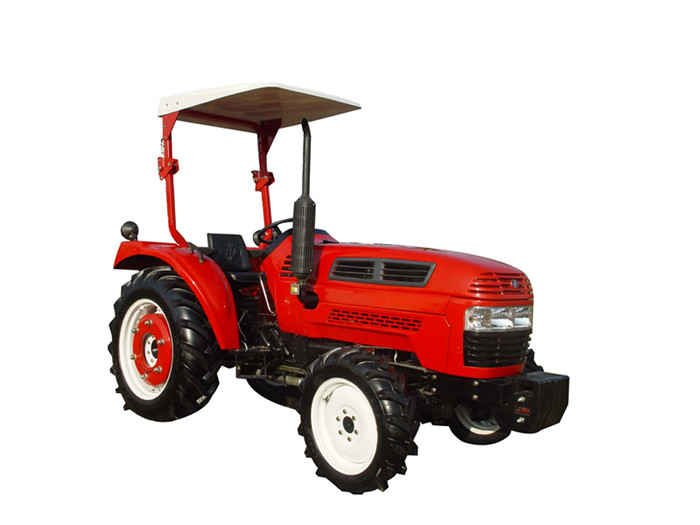

Tractor
Parameters


Model


JM-554


Drive Type


4WD


Overall Dimensions
L*W*H(mm)


4010×1640×2220


Wheel   Track
(mm)


Front


1300


Rear


1315-1615


Wheel Bass(mm)


2073


Ground Clearance(mm)


325


Rated Traction Force(N)


14200


Construction Mass(kg)


2172


Min. Turning Radius(m)


3.7


Theoretical
Speed(km/h)


Forward
(creep)


2.243 3.293 5.355 7.031 10.07 14.793 24.049 31.579 0.336 0.493 0.802 1.053 1.508 2.214 3.6 4.725


Reverse
(creep)


3.327 4.888 7.945 10.433 0.5 0.732 1.19 1.562


Engine


Model


SL4105BT


Type


4-Cylinder Vertical, Water Cooled, 4 Stroke Cycle


Rated Power(kw/hp)


40.4/55


Rated Speed(rpm)


2300


Bore ×Stroke(mm)


105 ×110


Total Displacement(L)


3.81


Drive
System


Clutch


Single-Function Dry Constant Meshing


Gear Box


4 ×(2+1)Sleeve Gear


Main Drive


One Pair of Spiral Bevel Gearing


Differential


Bevel Gear


Different Lock


Sliding Pin, Foot Operated


Final Transmission


Planeatry Reduction Gear


Traveling
Mechanism


Type


Front


8.3-20


Rear


12.4-28/13.6-28


Steering Gear


Hydraulic Steering


Brake


Oil Lmmerszd Multiplated Disc


Working Device


Hydraulic System


Lifting Capacity
at 610mm
Behind Lift Point(N)


9100


  3-Point Suspension

Category:11


P.T.O
Shaft


Roating Speed(rpm)


540/720 or
540/1000


Spline Size


6- φ35Rectangular Spline


Options


Roll bar, Canopy, Shuttle, Hydraulic, Steering
