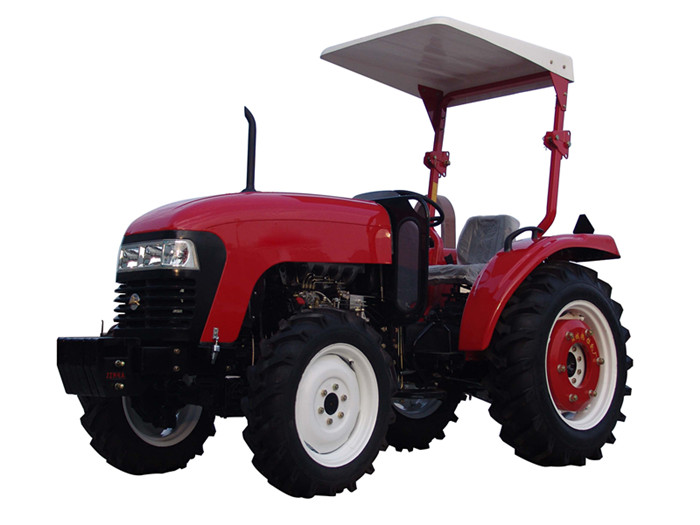

Tractor
Parameters
|
Model
|
JM-454
|
|
Drive Type
|
4WD
|
|
Overall Dimensions
L*W*H(mm)
|
3880×1625×2160
|
|
Wheel Track
(mm)
|
Front
|
1300
|
|
Rear
|
1300-1600
|
|
Wheel Bass(mm)
|
1877.5
|
|
Ground Clearance(mm)
|
325
|
|
Rated Traction Force(N)
|
11700
|
|
Construction Mass(kg)
|
2116
|
|
Min. Turning Radius(m)
|
3.5
|
|
Theoretical
Speed(km/h)
|
Forward
(creep)
|
2.145 3.15 5.122 6.725 9.632 14.15 23.003 30.203 0.321 0.472 0.767 1.007 1.4421 2.118 3.443 4.52
|
|
Reverse
(creep)
|
3.182 4.675 7.600 9.979 0.476 0.7 1.138 1.491
|
|
Engine
|
Model
|
SL3105ABT/490BT
|
|
Type
|
3/4-Cylinder Vertical, Water Cooled, 4 Stroke Cycle
|
|
Rated Power(kw/hp)
|
33.1/45
|
|
Rated Speed(rpm)
|
2200/2400
|
|
Bore×Stroke(mm)
|
105×117/90×105
|
|
Total Displacement(L)
|
3.039/2.672
|
|
Drive
System
|
Clutch
|
Single-Function Dry Constant Meshing
|
|
Gear Box
|
4×(2+1)Sleeve Gear
|
|
Main Drive
|
One Pair of Spiral Bevel Gearing
|
|
Differential
|
Bevel Gear
|
|
Different Lock
|
Sliding Pin, Foot Operated
|
|
Final Transmission
|
Planeatry Reduction Gear
|
|
Traveling
Mechanism
|
Type
|
Front
|
8.3-20
|
|
Rear
|
12.4-28
|
|
Steering Gear
|
Mechanical or Hydraulic Steering
|
|
Brake
|
Oil Lmmerszd Multiplated Disc
|
|
Working Device
|
Hydraulic System
|
Lifting Capacity
at 610mm
Behind Lift Point(N)
|
7500
|
|
3-Point Suspension
|
Category:1
|
|
P.T.O
Shaft
|
Roating Speed(rpm)
|
540/720 or
540/1000
|
|
Spline Size
|
6-φ35Rectangular Spline
|
|
Options
|
Roll bar, Canopy, Shuttle, Hydraulic, Steering, Dual stage clutch,
Turf Tyer, Cab
|
