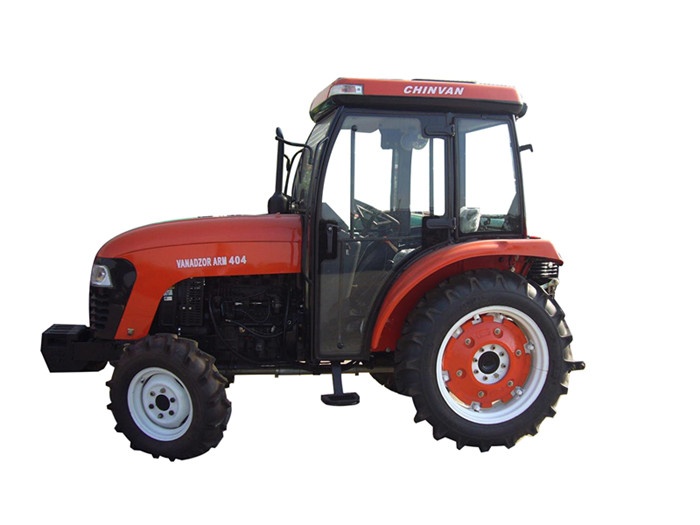

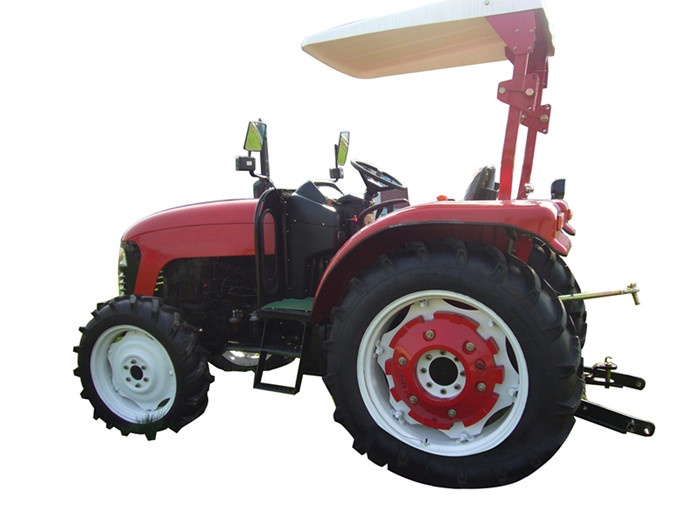

Tractor Basic Parameters

Model

 JM-404E

Drive Type

4WD

Overall Dimensions L*W*H(mm):

3824x1760x2505

Wheel Track(mm)

Front

1300

Rear

1400

Wheel Base(mm)

2010

Ground Clearance (mm)

325

Rated Traction Force(N)

10320

Construction Mass(kg)

2062

Min.Turning Radius(m)

4.3

11.2-28 Tyre

Forward

2.01,2.95,4.79,6.29,9.06,13.23,21.55,28.24

Reverse

1.52,2.23,3.62,4.75,6.81,10.00,16.27,21.35

13.6-28 Tyre

Forward

2.43,3.57,5.80,7.61,10.97,16.01,26.09,34.18

Reverse

1.84,2.70,4.38,5.75,8.24,12.11,19.69,25.85

Engine
Specifications

Model

   C490BT

Type

4-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

29.4/40

Rated Speed (rpm)

2400

Bore*Stroke(mm)

90*105

Total Displacement(L)

2.671

Drive
System

Clutch

Dual-Stage

Gear Box

4*2*(1+1)

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Sliding pin

Final Transmission

Planetry Reduction Gear

Traveling
Mechanism

Tyre

Front

7.50-16

Rear

11.2-28

Steering Gear

Full Hydraulic Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

6700

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000

Spline Size

6-35Rectangular Spline
