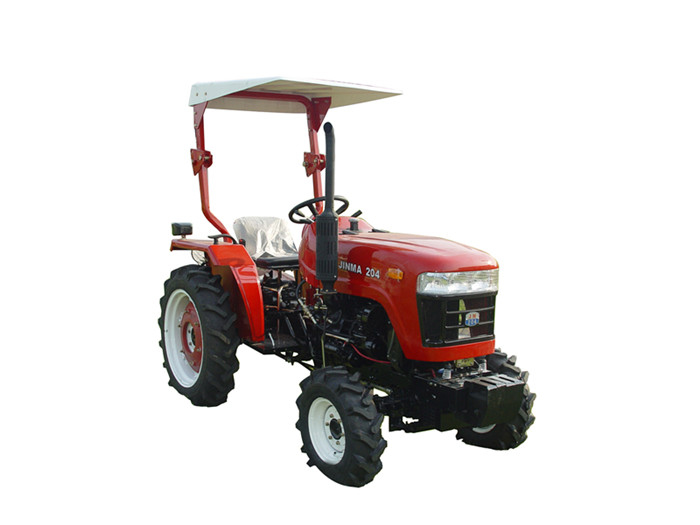

Tractor

Parameters

Model

JM-204E

Drive Type

4WD

Overall Dimensions

L*W*H(mm)

3185×1440×2530

Wheel  Track

(mm)

Front

1000-1100

Rear

1040-1200

Wheel Bass(mm)

1645

Ground Clearance(mm)

295

Rated Traction Force(N)

4800

Construction Mass(kg)

1380

Min. Turning Radius(m)

2.5

Theoretical

Speed(km/h)

Forward

(creep)

1.68 3.31 5.52 7.75 15.30 25.50 0.31 0.62 1.03 1.45 2.85 4.76

Reverse

(creep)

1.33 6.15 0.25 1.15

Engine

Model

KM385TE1

Type

3-Cylinder Vertical, Water Cooled, 4 Stroke Cycle

Rated Power(kw/hp)

14.7/20

Rated Speed(rpm)

2350

Bore×Stroke(mm)

85×90

Total Displacement(L)

1.532

Drive

System

Clutch

Dual-Stage

Gear Box

(3+1)×2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Different Lock

Jaw Lock

Final Transmission

Spur Gear, External Gearing

Traveling

Mechanism

Type

Front

6.00-12

Rear

8.3-24

Steering Gear

Full Hydraulic Steering

Brake

Shoe Type

Working Device

Hydraulic System

Lifting Capacity

at 610mm

Behind Lift Point(N)

3600

3-Point Suspension

Category:1

P.T.O

Shaft

Roating Speed(rpm)

540/1000

Spline Size

6-φ35Rectangular Spline

Options

Roll bar, Canopy, Shuttle, Hydraulic, Steering, Dual stage clutch, Turf Tyre, Cab
