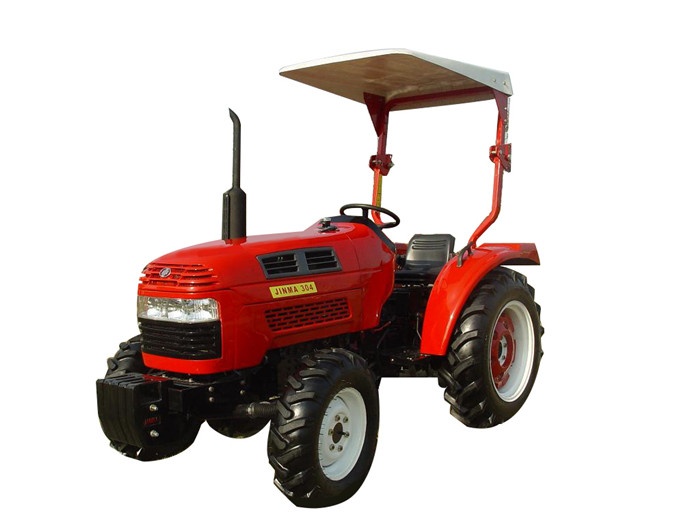

JINMA 304E Four Wheel Tractors Technical Parameters

Tractor
Parameters

Model

JM304E

Drive Type

4WD

Overall Dimensions   L*W*H(mm):

3230x1435x1985

Wheel Track (mm)

Front

1200

Rear

1150-1450

Wheel Base(mm)

1833.5

Ground Clearance (mm)

292

Rated Traction Force(N)

6400

Construction Mass(kg)

1780

Min.Turning Radius(m)

4.2

The oretical Speed
(Without creeper gear(km/h)

Forward

2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867

Reverse

2.861,13.2

Engine
Specifications

Model

TY395

Type

3-cylinder, Vertical water-cooled,4 stroke cycle

Rated Power(kw/hp)

22.1/30

Rated Speed (rpm)

2200

Bore*Stroke(mm)

95*105

Total Displacement(L)

2.23

Drive
System

Clutch

Dual stage

Gear Box

(4+1)*2

Main Drive

One pair of spiral bevel gearing

Differential

Bevel gear

Differential Lock

Jaw Lock

Final Transmission

Spur Gear,External,Gearing

Travelling
Mechanism

Tyre

Front

7.5-16

Rear

11.2-24

Steering Gear

Power Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at
610mm Behind Lift Pioint (kN)

4900

3-Point Suspension

Category:I

P.T.O Shaft

Rotating Speed (rpm)

540/720 or 540/1000

Spline Size

6-φ35Rectangular Spline

OPTIONS

ROLL BAR,CANOPY,CAB
