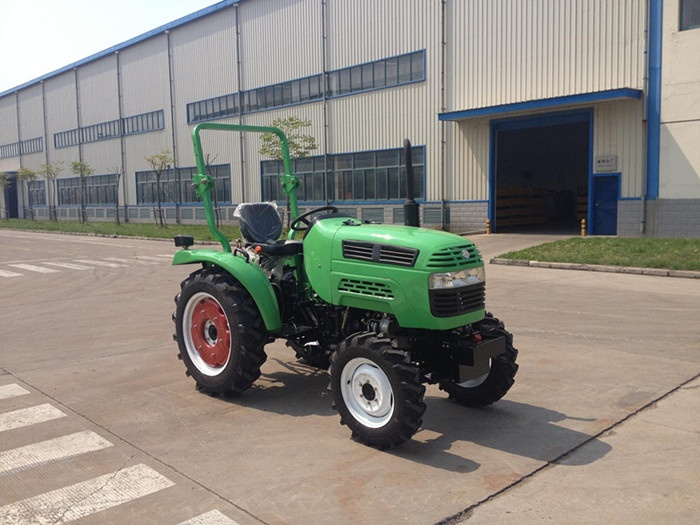

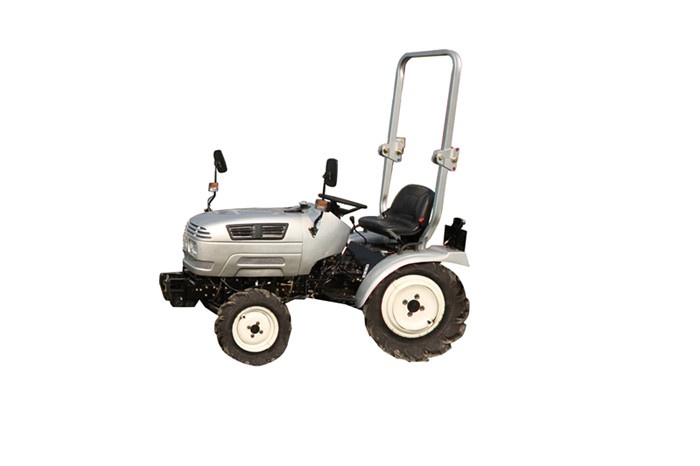

16HP Mini Farm Tractor with CE
|
JINMA 164Y Four Wheel Tractors Technical Parameters
|
|
Tractor
Parameters
|
Model
|
JM164Y
|
|
Drive Type
|
4WD
|
|
Overall Dimensions L*W*H(mm):
|
2602X1050X2403
|
|
Wheel Track (mm)
|
Front
|
750
|
|
Rear
|
840,940
|
|
Wheel Base(mm)
|
1290
|
|
Ground Clearance (mm)
|
248
|
|
Rated Traction Force(N)
|
3500
|
|
Construction Mass(kg)
|
890
|
|
Min.Turning Radius(m)
|
2.4
|
|
The oretical Speed
(Without creeper gear(km/h)
|
Forward
|
1.32,1.95,3.04,6.01,8.9,13.92
|
|
Reverse
|
1.63,7.46
|
|
Engine
Specifications
|
Model
|
3M78
|
|
Type
|
3-Cylinder Vertical,water cooled,4 stroke cycle
|
|
Rated Power(kw/hp)
|
11.8/16
|
|
Rated Speed (rpm)
|
2400
|
|
Bore*Stroke(mm)
|
78X78.4
|
|
Total Displacement(L)
|
1.123
|
|
Drive
System
|
Clutch
|
7'Single Stage
|
|
Gear Box
|
(3+1)X2
|
|
Main Drive
|
Columniform gear
|
|
Differential
|
Bevel gear
|
|
Differential Lock
|
Jaw Lock
|
|
Final Transmission
|
Spur Gear,External,Gearing
|
|
Travelling
Mechanism
|
Tyre
|
Front
|
5.00-12
|
|
Rear
|
7.5-16
|
|
Steering Gear
|
Power Steering
|
|
Brake
|
Disc type
|
|
Working
Device
|
Hydraulic System
|
Lifting Capacity at
610mm Behind Lift Pioint (kN)
|
2640
|
|
3-Point Suspension
|
Category:0
|
|
P.T.O Shaft
|
Rotating Speed (rpm)
|
540/720/1000
|
|
Spline Size
|
6-φ35Rectangular Spline
|
|
OPTIONS
|
ROLL BAR,CANOPY
|
|
Trailers
Post Hole Digger
