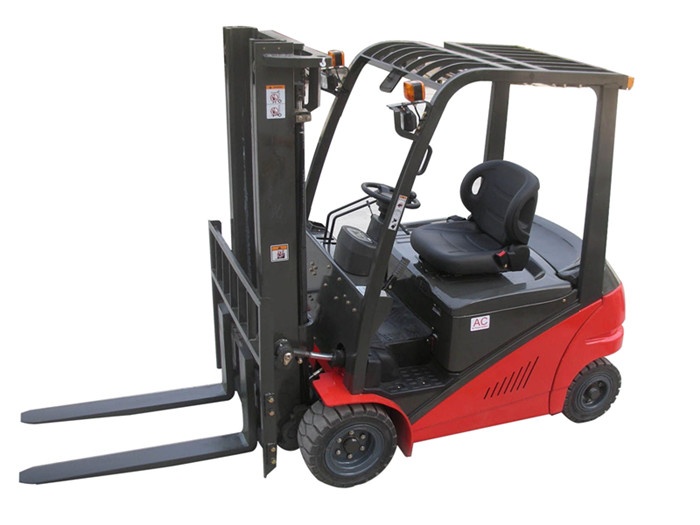

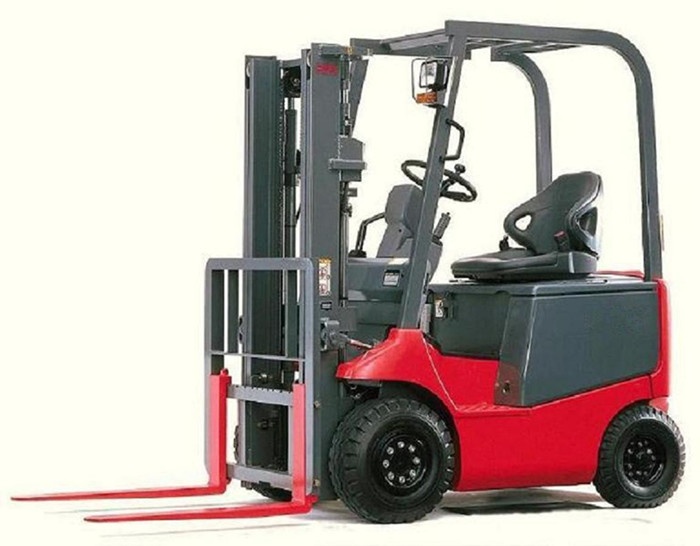

3500kg Electric Forklift with Competitive Price
|
Min. turning radius mm
|
2200
|
2250
|
2350
|
2400
|
|
Min. right angle aisle width mm
|
2050
|
2100
|
2280
|
3900
|
|
Min. under-clearance mm
|
110
|
110
|
140
|
140
|
|
Dimensions
|
A Overall length (inincluding fork) mm
|
3350
|
3380
|
3705
|
3745
|
|
B Overall width mm
|
1160
|
1160
|
1225
|
1240
|
|
H Overall height(mast lowered) mm
|
2130
|
2130
|
2200
|
2200
|
|
H2 Overall height(mast extend) mm
|
4040
|
4040
|
4260
|
4260
|
|
H3 Overall height to overhead guard mm
|
2130
|
2130
|
2200
|
2200
|
|
B3 Fork width mm
|
100
|
122
|
125
|
125
|
|
H4 Fork thickness mm
|
40
|
40
|
45
|
50
|
|
A3 Fork length mm
|
920(1070)
|
920(1070)
|
1070(1220)
|
1070(1220)
|
|
A1 Fork overhang mm
|
451
|
451
|
494
|
495
|
|
A2 Wheel base mm
|
1550
|
1550
|
1700
|
1700
|
|
Tread
|
Front tread mm
|
970
|
970
|
1000
|
1000
|
|
Rear tread mm
|
950
|
950
|
980
|
980
|
|
Tyre
|
Front tyre
|
7.00-12
|
7.00-12
|
28×9-15
|
28×9-15
|
|
Rear tyre
|
18×7-8
|
18×7-8
|
18×7-8
|
18×7-8
|
|
Total weight kg
|
3950
|
4300
|
4900
|
5160
|
|
Motor
|
Traction motor
|
XQ-8
|
XQ-8
|
XQ-10-1C
|
XQ-10-1C
|
|
Lifting motor
|
XQD-10-3S
|
XQD-10-3S
|
XQD-13-3S
|
XQD-13-3S
|
|
Battery
|
Battery type
|
D-600(700)
|
D-700
|
40-DA-500
|
40-DA-500
|
|
Battery voltage/Capacity V/Ah
|
48/600(700)
|
48/700
|
80/500
|
80/500
|
