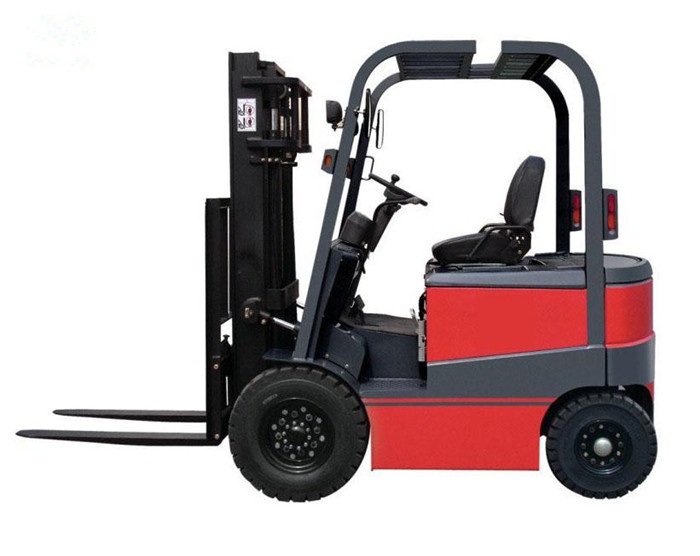

Model
|
|
|
CPD10
|
CPD15
|
CPD20
|
CPD25
|
CPD30
|
|
Power type
|
|
|
Battery
|
Battery
|
Battery
|
Battery
|
Battery
|
|
Rated capacity
|
|
kg
|
1000
|
1500
|
2000
|
2500
|
3000
|
|
Load center
|
d
|
mm
|
500
|
500
|
500
|
500
|
500
|
|
Lift height
|
h2
|
mm
|
3000
|
3000
|
3000
|
3000
|
3000
|
|
Mast tilt angle (forward/backward)
|
α/β
|
Deg
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
|
Front overhang
|
L3
|
mm
|
425
|
425
|
483
|
483
|
485
|
|
Wheel-base
|
L4
|
mm
|
1370
|
1370
|
1500
|
1500
|
1700
|
|
Tread(front/rear)
|
b4/b5
|
mm
|
890/920
|
890/920
|
970/950
|
970/950
|
1000/970
|
|
Travel brake
|
|
|
Hydraulic-Foot pedal
|
|
Parking brake
|
|
|
Mechanical-Hand level
|
|
Lift speed(with/without load)
|
|
mm/s
|
260/400
|
260/400
|
260/400
|
260/400
|
280/420
|
|
Lower speed (with/without load)
|
|
mm/s
|
(with load),600 <(without load)>300
|
|
Travel speed (with/without load)
|
|
km/h
|
11/12
|
11/12
|
11/12
|
11/12
|
13/15
|
|
Max. gradeability (with load)
|
|
%
|
15
|
10
|
10
|
10
|
13
|
|
Max. Towing (with/without load)
|
|
kN
|
6/5
|
6.5/5.5
|
9.4/7.5
|
9.8/8
|
11/9
|
|
Weight Distribution with load(front/rear)
|
|
|
3350/500
|
3900/600
|
5250/720
|
5900/840
|
6920/1080
|
|
Weight Distribution without load(front/rear)
|
|
|
1200/1650
|
1300/1700
|
1720/2250
|
1825/2415
|
2150/2850
|
