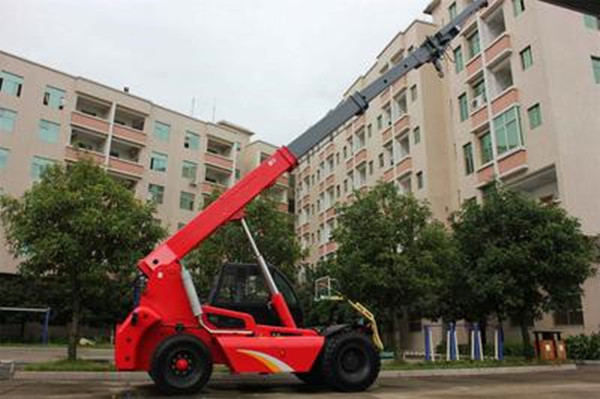

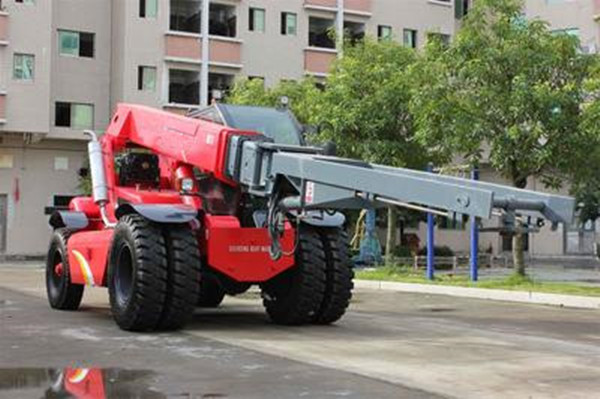

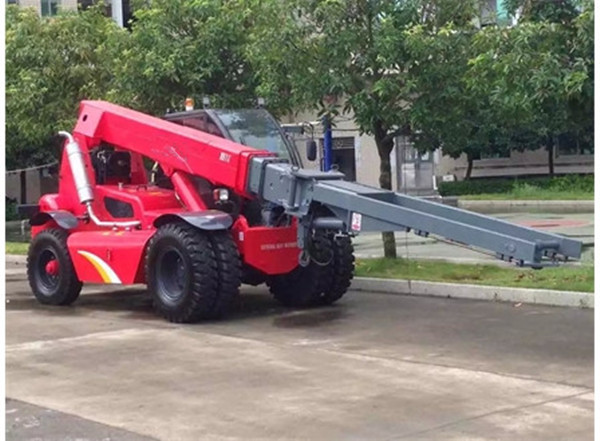

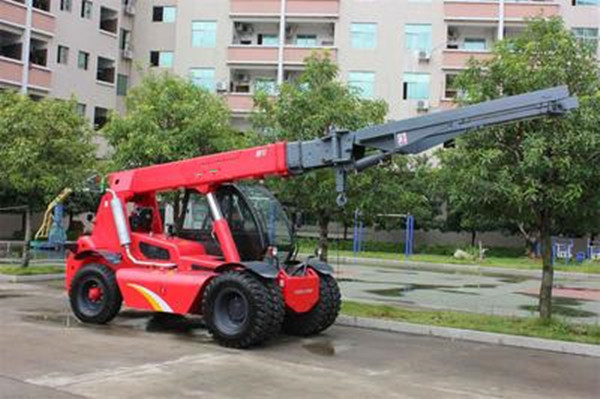

TELESCOPIC CRANE LOADER
|
|
Item
|
HNT110-2C
|
|
Rated lifting capacity
|
≤11000kg
|
|
Load center distance (between the front edge of tyre and the load center) / Lifting capacity
|
M
|
0.5
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
Boom (kg)
|
11000
|
8500
|
6000
|
4500
|
3500
|
3000
|
2500
|
1500
|
|
Fork (kg)
|
|
|
5000
|
|
|
2500
|
|
|
|
Max. lifting height of main hook (between the main lifting hook and the ground) / Max. lifting height of full-extended arm (front lifting point)
|
Fork
|
Boom
|
|
7400mm
|
7300mm/10440mm
|
|
Max. horizontal reach of main hook (between the front edge of tyre and the main lifting hook) / Max. reach of full-extended arm
|
Fork
|
Boom
|
|
6900mm
|
4900mm/8400mm
|
|
Max. travel speed
|
25kw/h
|
|
Min. ground clearance
|
365mm
|
|
Min. turning radius
|
6800mm
|
|
Gradeability
|
≥20 %
|
|
Tipping angle (upward/downward)
|
Fork
|
12°/20°
|
Boom
|
24°/22°
|
|
Wheel tread
|
1825mm
|
|
Wheel base
|
2998mm
|
|
Dead weight
|
13000kg
|
|
Overall dimensions (L * W * H)
|
5400mm*2200mm*2530mm
|
|
Inner width of the cab
|
740mm
|
|
Boom Length
|
3435mm
|
|
Engine (Dongfeng Cummins)
|
Model
|
4BT3.9-C100
|
|
Rated power
|
75KW
|
|
Rated speed
|
2200r/min
|
|
Displacement
|
3.9L
|
|
Tyre
|
Front wheel *4
|
(9.00R-20)
|
|
|
Rear wheel *2
|
(9.00R-20)
|
