Products > Farm Implements > Harvesters > Rotary Tiller with Side Gear Transmission

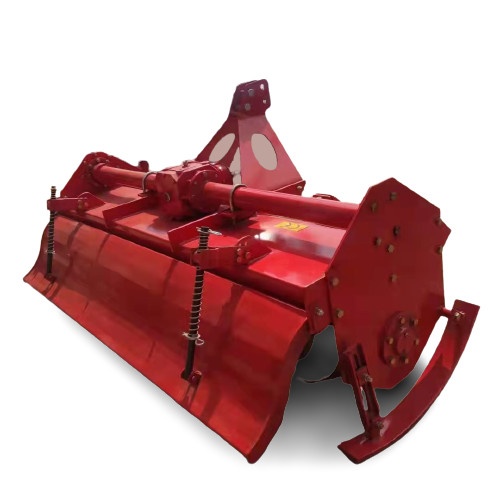

Product name : Rotary Tiller with Side Gear Transmission

Product No. : 2022729191811

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

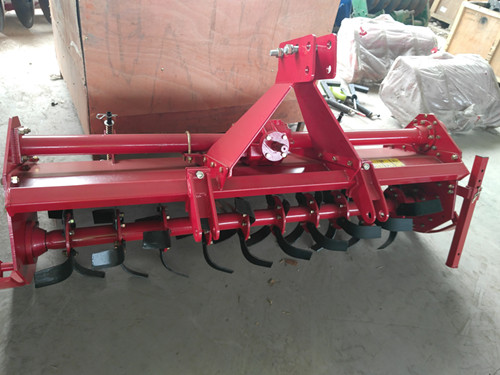

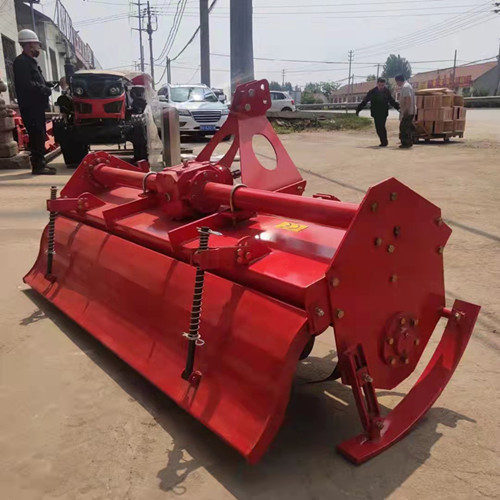

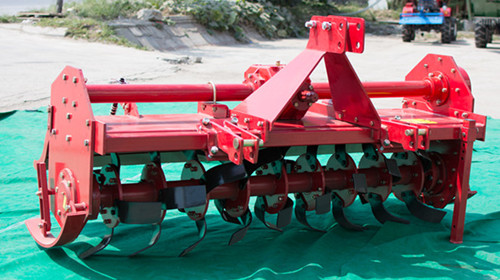

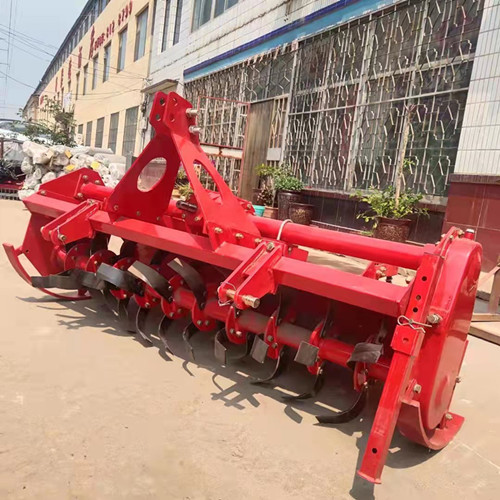

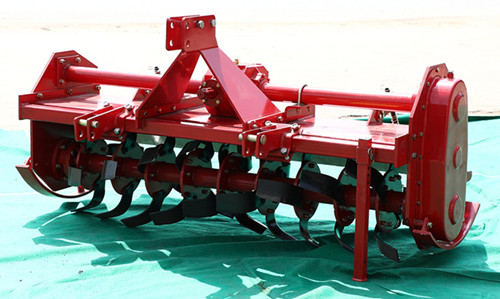

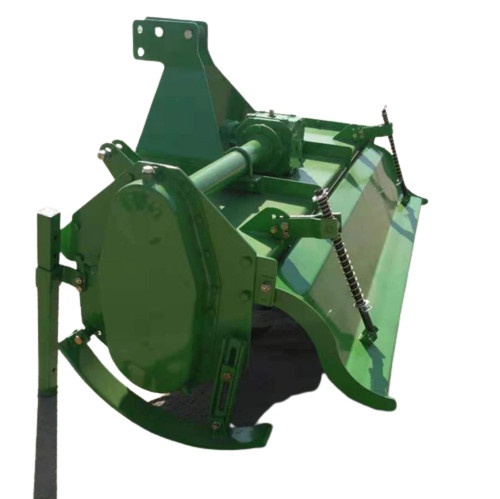

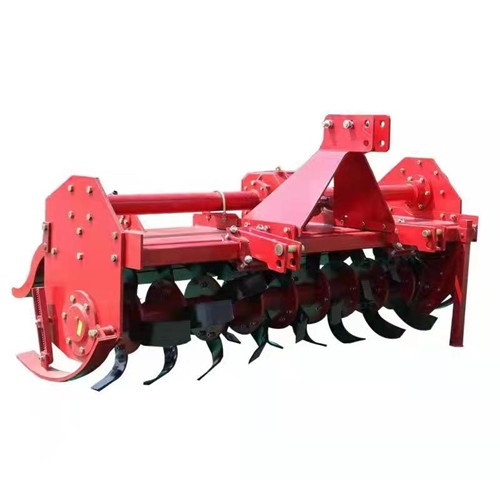

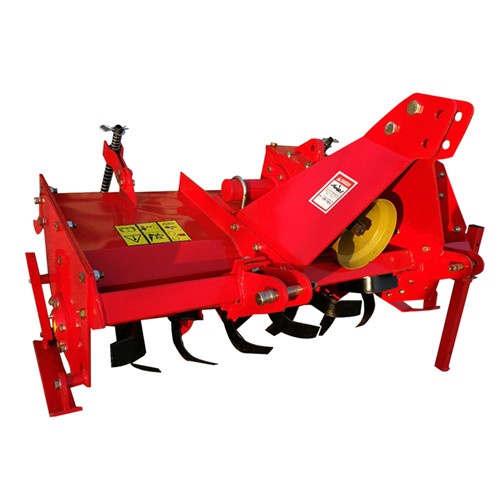

Rotary Tiller with Side Gear Transmission

Product Description

1GLN series European rotary tiller with side gear transmission. 1GLN series rotary tiller with sidegear transmission, it can be mounted with the tractor 12-100 hp. We can’t see the wheel trackson the soil after it worked. The quality of the rotary tiller is good and the function very well. It issuited to dry land and paddy field. It can save time, labor and money etc. strong point.

Specification Detail

Models	Unit	1GLN-85	1GLN-105	1GLN-125	1GLN-140	1GLN-150	1GLN-160	1GLN-180	TGLN-200	TGLN-220	TGLN-240
Matched power	hp	20	20-30	25-35	30-40	30-45	40-50	50-80	55-85	65-85	75-90
Working width	mm	800	1000	1200	1350	1450	1550	1750	1950	2150	2350
Working depth	mm	100-160
No. of disc	PCS	16	20	24	28	32	36	42	54	60	66
PTO Input speed	(r/min)	540
Total weight	Kg	200	220	240	260	280	320	440	560	590	620
Linkage		Standard three point mounted
