Products > Farm Implements > Harvesters > Tractor Mounted Silage Chopper Harvester 4JQH-180

Product name : Tractor Mounted Silage Chopper Harvester 4JQH-180

Product No. : 20211015121927

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

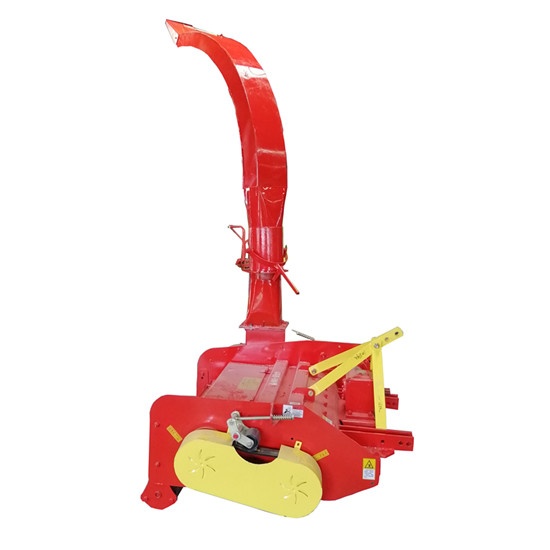

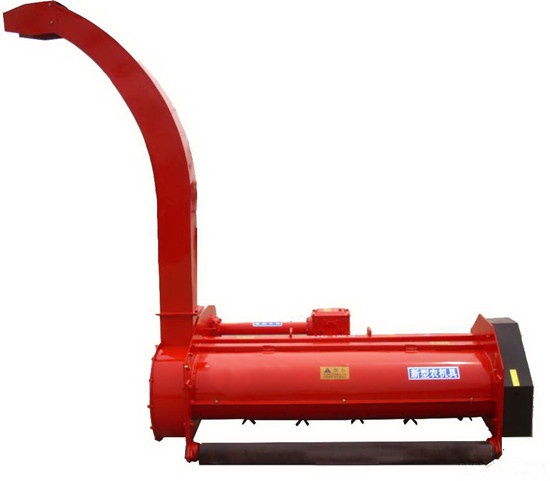

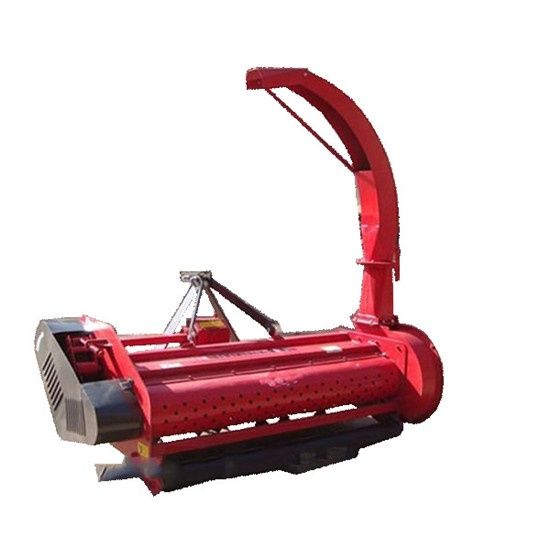

Tractor Mounted Silage Chopper Harvester 4JQH-180

Product Description

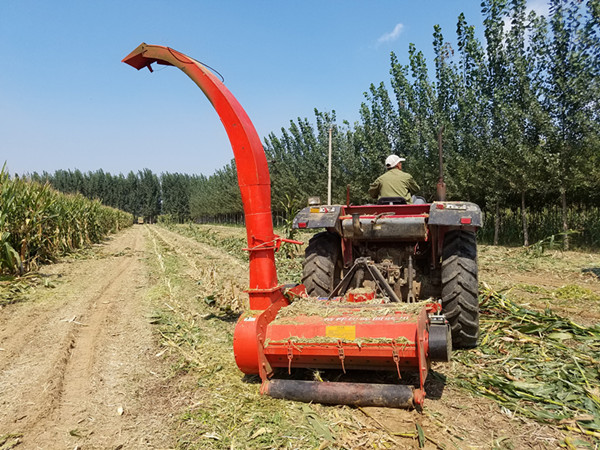

This straw silage harvester mounts with a tractor. It can complete cutting, harvesting, crushing, throwing, and collecting
continuously. It is mainly used for erect or tiled corn straw, sorghum stalk, or pasture grass.

1. It is suitable for harvesting and crushing various upright or fallen dry and wet crops such as corn straw, sorghum straw,
grain straw, forage grass, etc.

2. The harvested and crushed crop straw can be directly used in livestock farms, silage feed processing factories. It can also
be used in the production of biomass power generation fuels such as charcoal and straw coal. It can also be used as the culture
medium for mushroom growers and other industries.

Specification Detail

Model	4JQH-100	4JQH-130	4JQH-150	4JQH-165	4JQH-180	4JQH-200
Harvesting width	1m	1.3m	1.5m	1.65m	1.8m	2m
Power	30-50HP	40-60HP	50-70HP	60-80HP	80-100HP	90-120HP
Capacity (acres/h)	≥3	≥4	≥5	≥6	≥7	≥7
Stubble height (mm)	100-150	100-150	100-150	100-150	100-150	100-150
Recovery rate	≥89%	≥89%	≥85%	≥85%	≥85%	≥85%
Working Speed(kw/h)	3-4	3-4	3-4	3-4	3-4	3-4
Ground clearance(mm)	3400	3400	3400	3400	3400	3400
Throwing vertical distance	10m	10m	10m	10m	10m	10m
Throwing horizontal distance	20m	20m	20m	20m	20m	20m
Stalk chopping length	3-8cm	3-8cm	3-8cm	3-8cm	3-8cm	3-8cm
Height of remaining stalk	≥400mm	≥400mm	≥400mm	≥400mm	≥520mm	≥520mm
Blades quantity	24pcs	32pcs	40pcs	44pcs	48pcs	52pcs
Spindle speed	2160r/min	2160r/min	2160r/min	2160r/min	2160r/min	2160r/min
Weight	400kg	480kg	540kg	620kg	700kg	800kgs
Dimension (mm)	125017003150	125018003150	1250x1950x3150	1250x2100x3150	1250x2250x3150	1250x2250x3150
