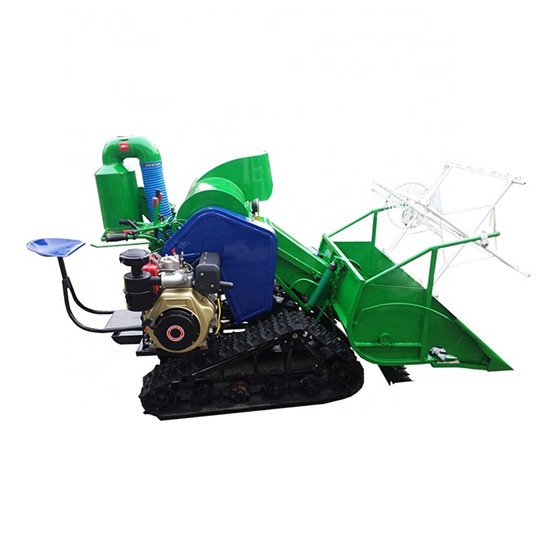

The Small mini harvester can be used to harvest wheat ,rice and paddy. It combines three functions, cutting, threshing
and collecting grains into the bag. It is Very popular for the small land and mountainous area and it is the big helper for
the farmers.

It consists of scrabbling the grains feeder, cutter, delivery cylinder, threshing cylinder,sieve, grain convey screw, grain
conveying outlet, wheels, engine, straw outlet .With small size,  light, easy to operate.

Crawler type harvester has good working performance at wet rice field.  We also can install driver seat with the small
wheat/rice combine harvester to operate more easily.

Specification Detail

4L-1.2

Productivity（hm2/h）: 0.13～0.17

Working Speed（km/h）:   1.0-3.0

Oil Consumption（kg/hm2）:  15.0～22.0

Gearbox:   (2+1) mechanical

Power：192F diesel engine(9.2kw/13.5HP)

Cutting Width（mm）：1200

Feeding Capacity(kg/s):   0.8

Breakage Rate：0.5%

Lose Rate：〈3%

Dirt Rate：〈7%

Overall Dimension（mm）：2700×1420×1350

Weight：Net/Gross weight 350kg/470kg

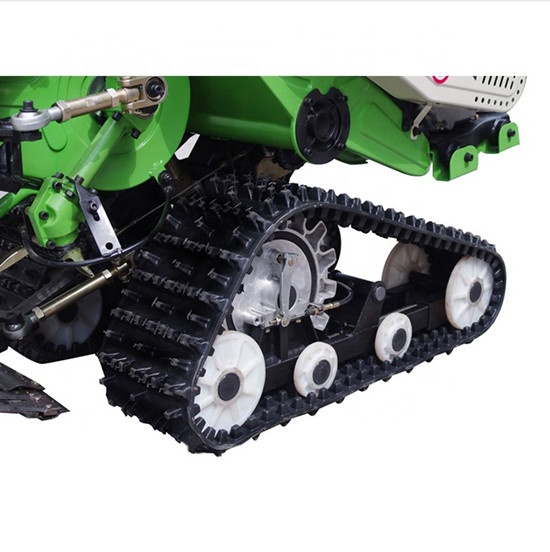

Track Size：80mm×34pvs×255mm width，All length 2.4m

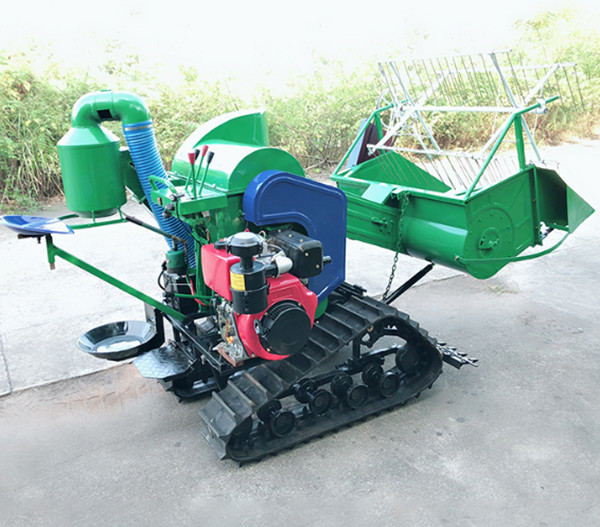

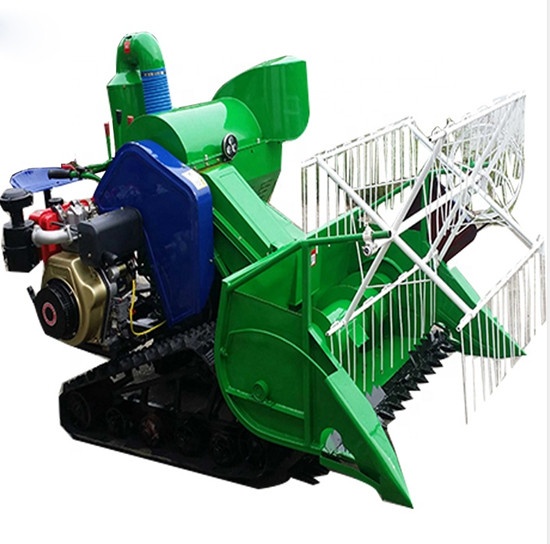

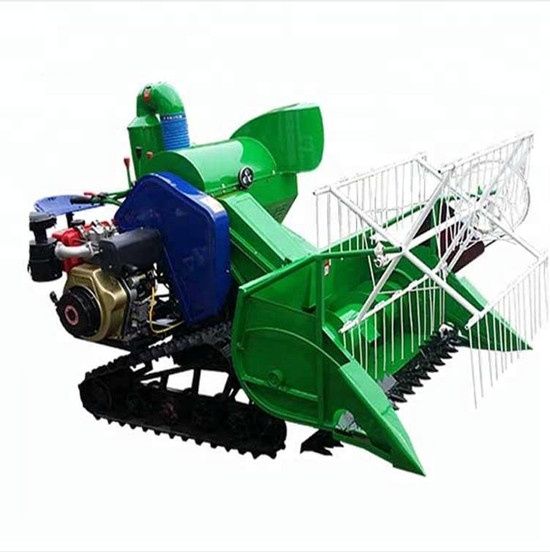

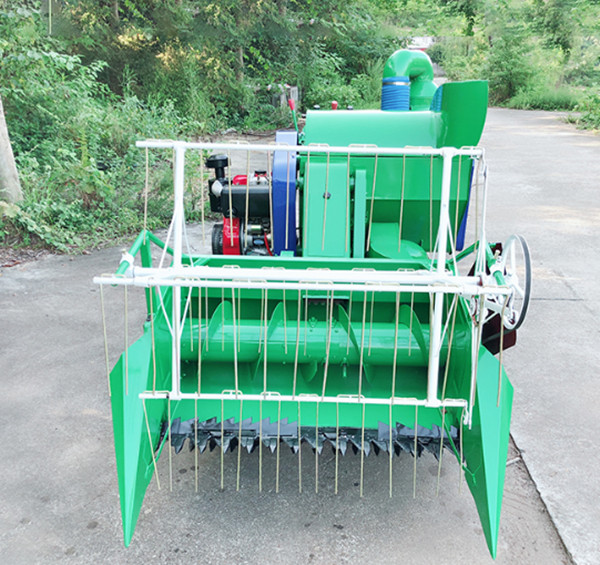

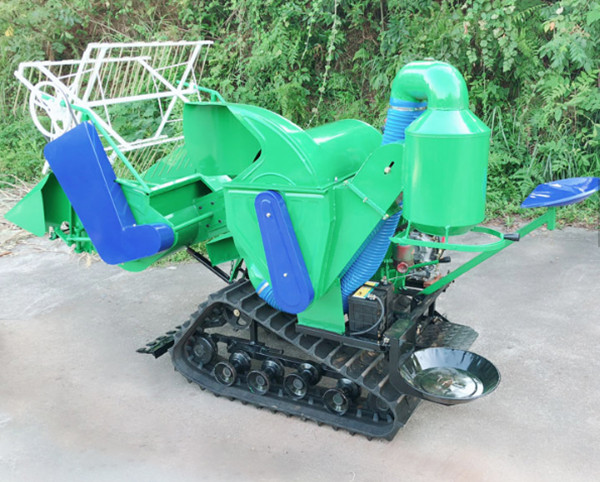

Detailed Images

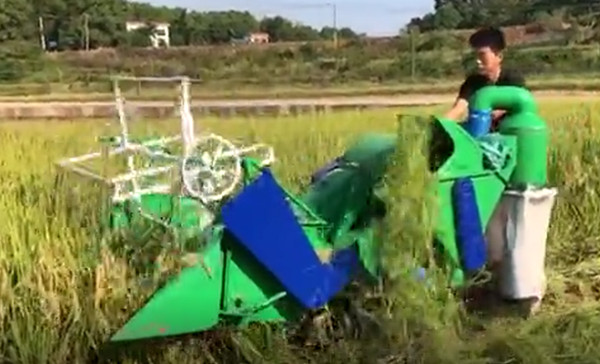

Working on Site

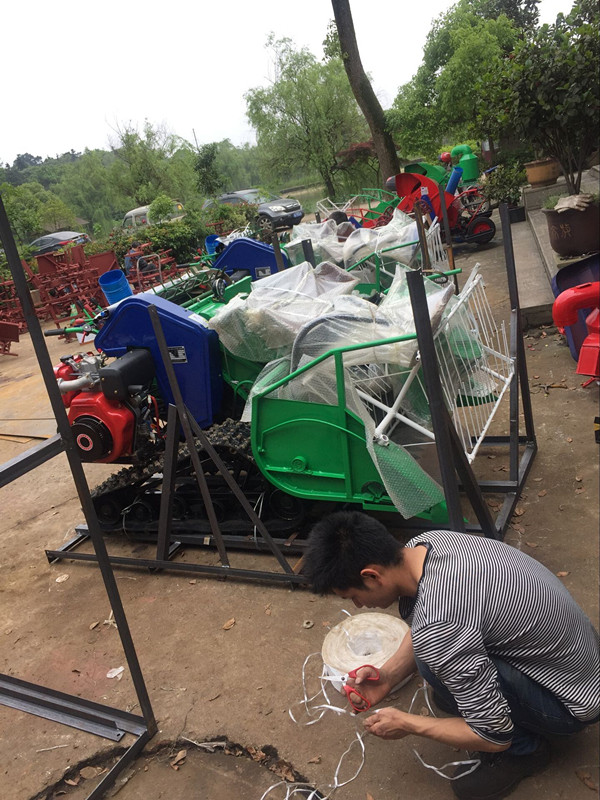

Packaging & Shipping
