Products > Warehouse Equipment > > Hand Pallet Jack

Product name : Hand Pallet Jack

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

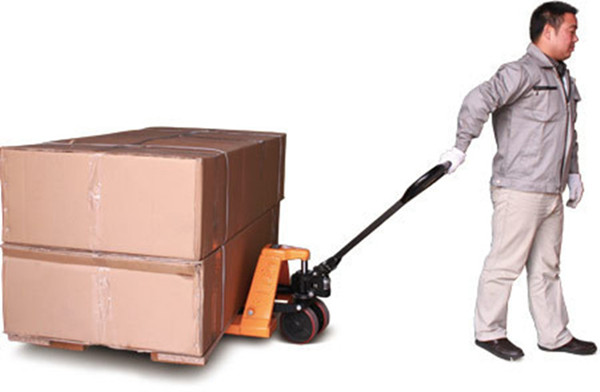

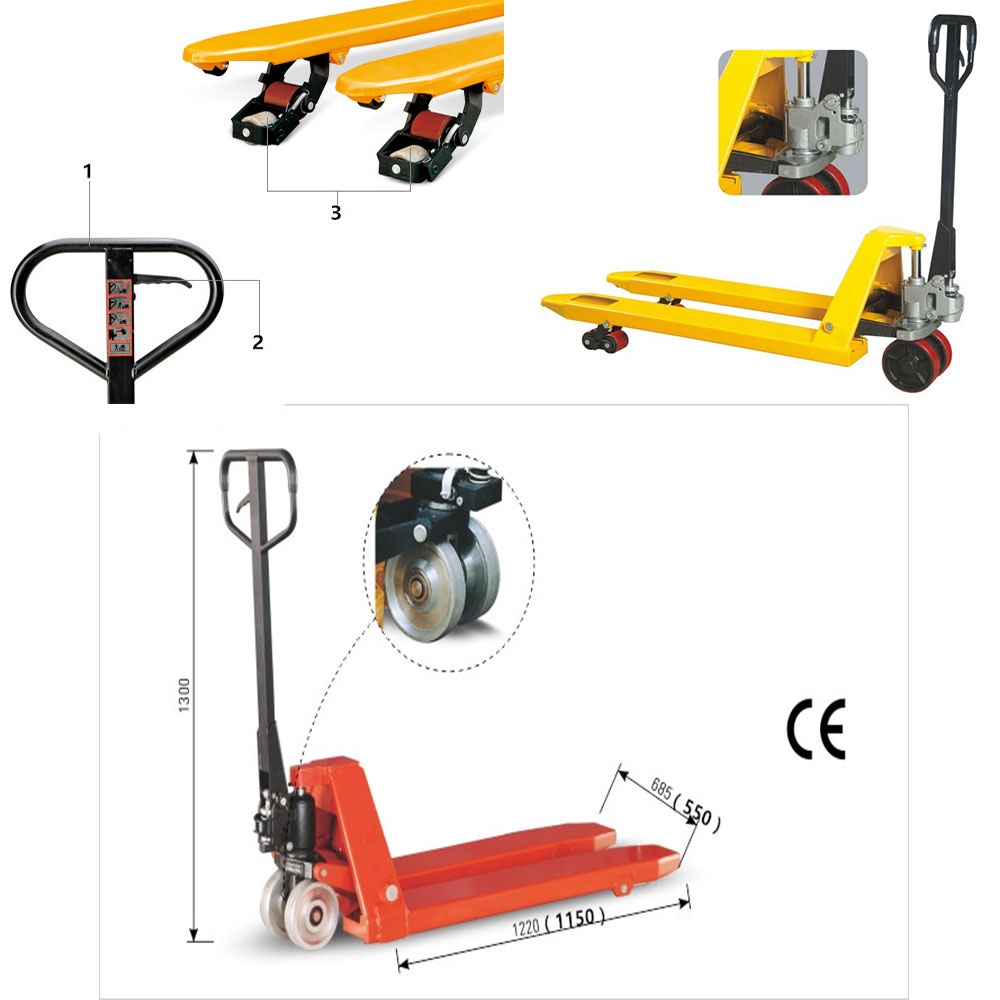

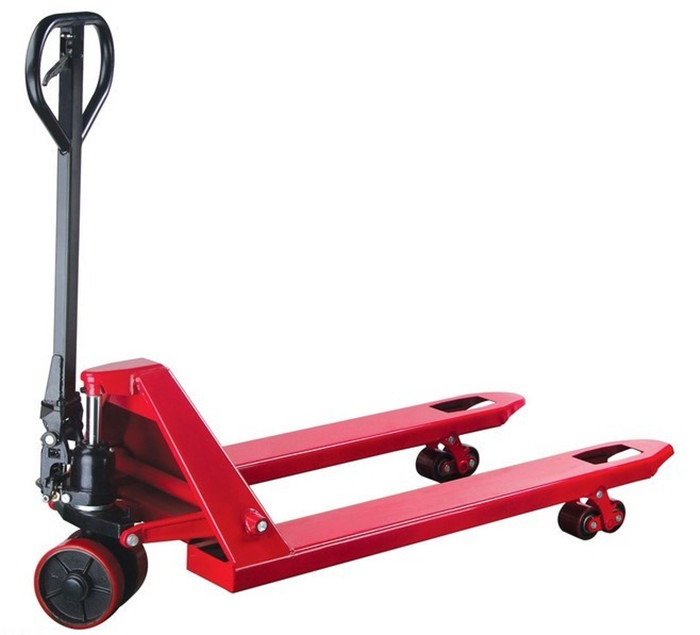

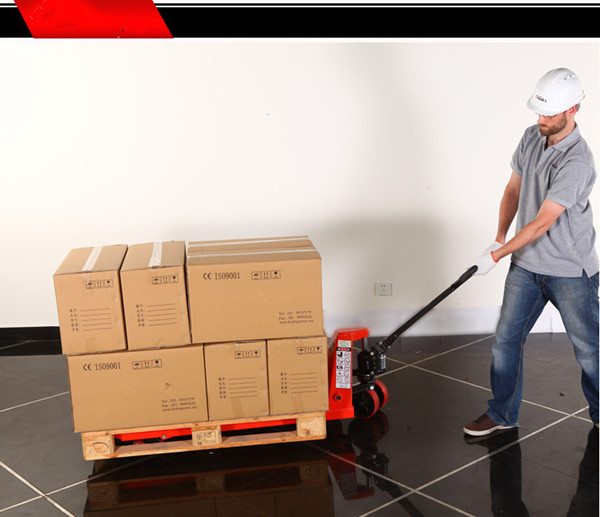

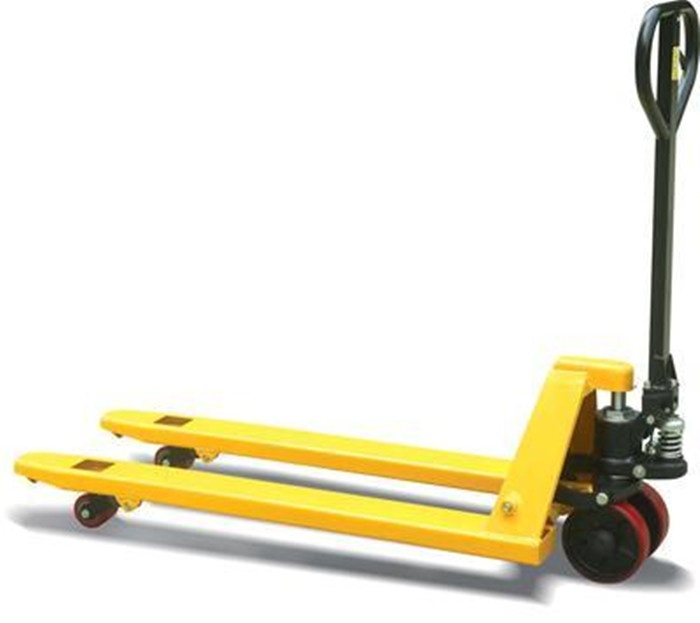

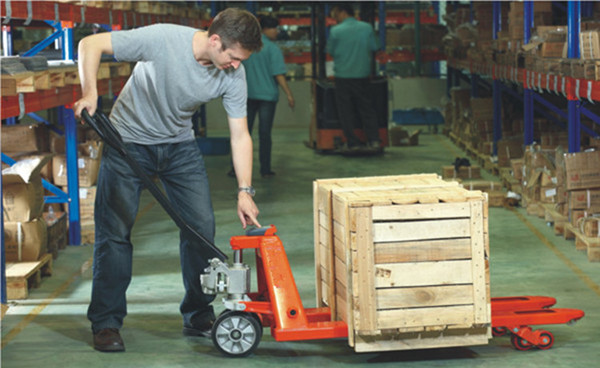

Hand Pallet Jack
1. Option of single and double load wheels according to customers' requirements.
2. Forks are processed with whole press forming technology and are coated with powder painting,wear-proofing & fading-resistant.

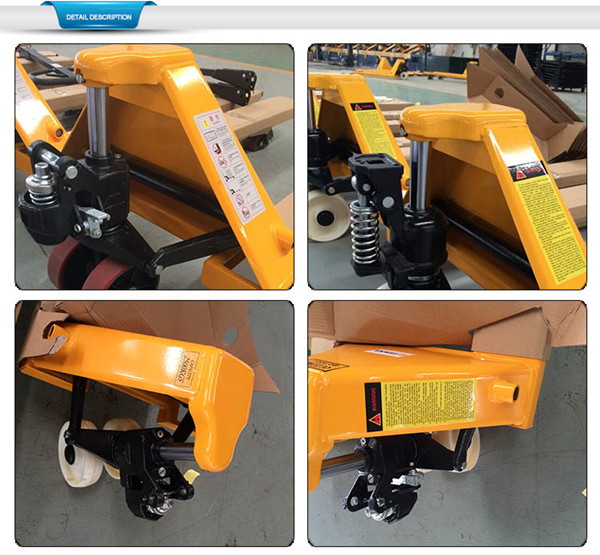

3. Excellent whole casting hydraulic pump and welded pump for your choice, robust and durable, with fine control of lowering speed and overload valve. Single-piece hydraulic valve cartridge has more advantages than scattered components such as easy maintenance, which is more preferred by the market.

Model	Unit	CBYM
Capacity	kg	2000	3000	5000
Min.fork height	mm	83		100
Max.fork height	mm	195		210
Overall fork width	mm	550	685	700
Overall fork length	mm	1150	1220	1310
Each fork width	mm	150	150	180
Steering wheel	mm	180*50 Nylon/Polyurethane		180*60
Load wheel	mm	80*68 Nylon/Polyurethane		88*106
Net weight	kg	62-70		200
