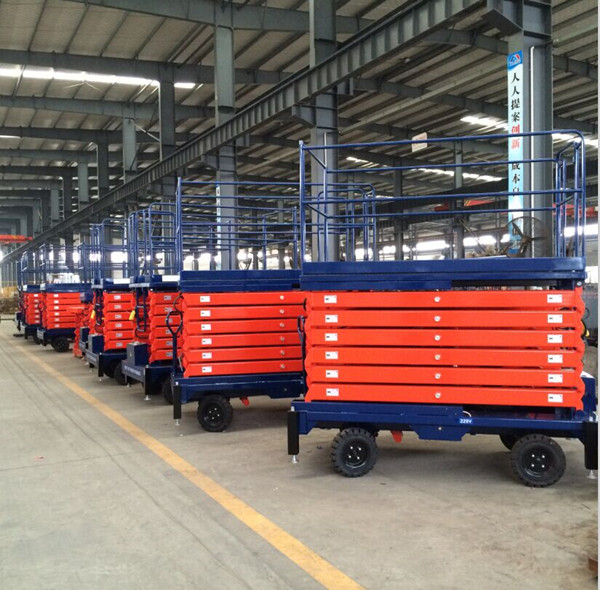

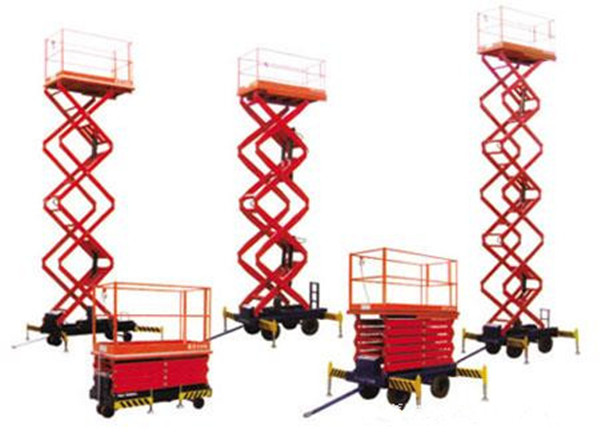

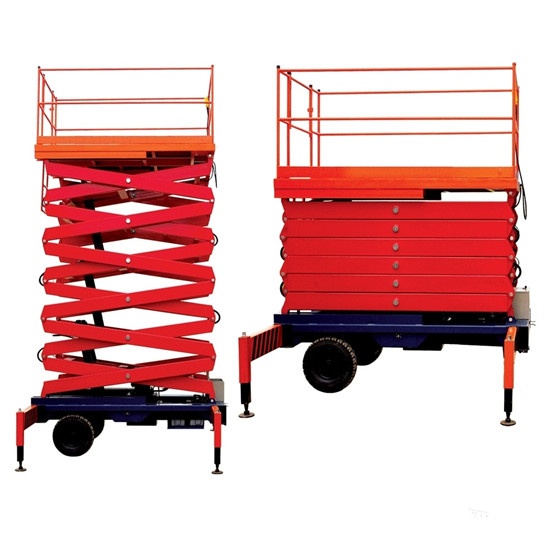

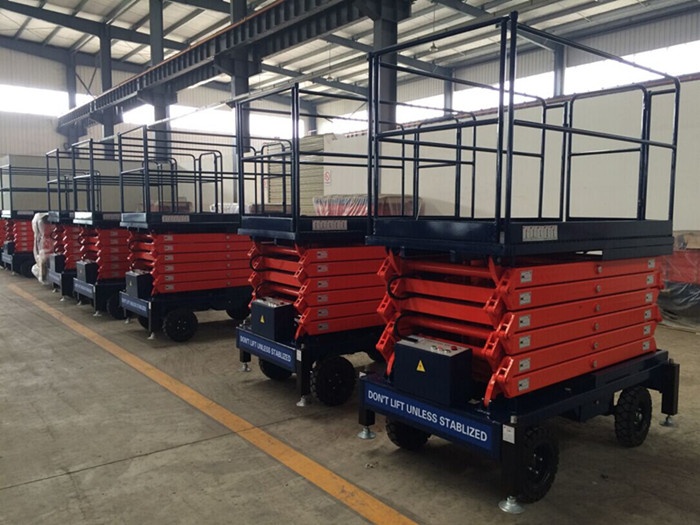

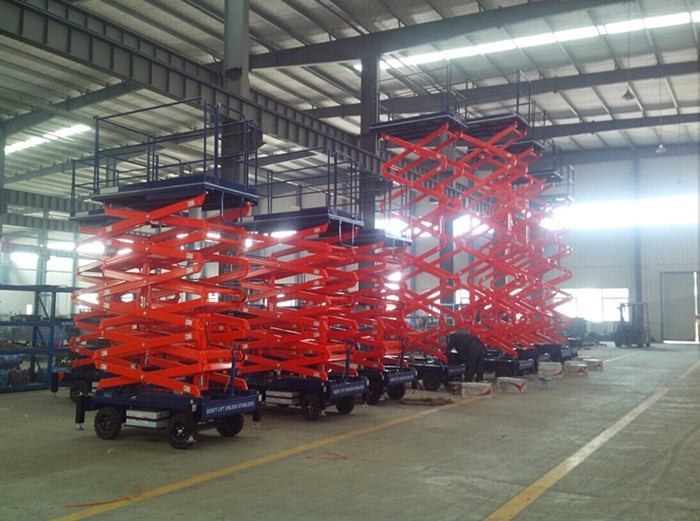

 Mobile Aerial Work Platform

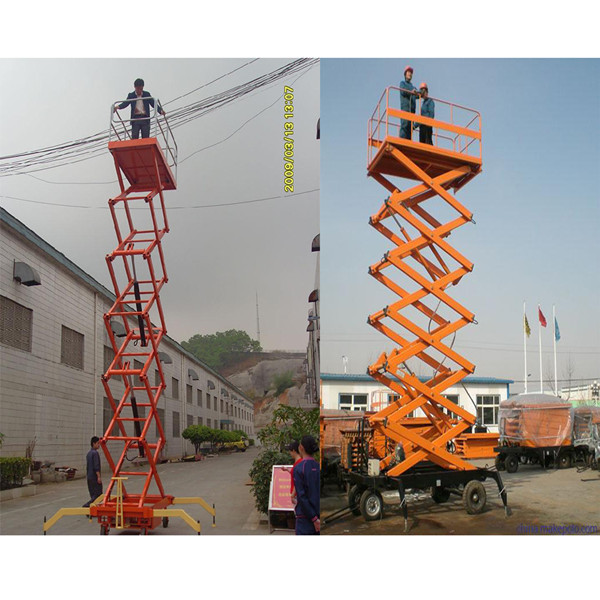

1. SJY mobile scissor scissor lift is widely used for high-altitude equipment installation, maintenance, decoration and so on, also
multi-layer workshop, warehouses, production lines, transfer of goods with height difference and truck loading and unloading, etc.
2. Lifting Oil Cylinder is equipped with unloading flow-limiting valves to ensure the steady falling when lifted to the highest.
3. Electic switch or remote control lift switch  (optional) for people both on the ground and platform to operate.
4. Equipped with manual oil pump  (optional) to ensure operation without power supply.

Model			SJY1-6	SJY1-9	SJY1-11	SJY2-6	SJY2-9	SJY0.3-16
Rated Capacity (kg)			1000			2000		300
Max. Plate Height(mm)			16000	9000	11000	6000	9000	16000
Min.Plate Height(mm)			1404	1752	1769	1626	2075	2350
Plate size( LxW) mm			2000*1000		2200*1180	2000*1200		2750*1600
(Optional) Manual Pump	Discharge					/
	Lifting Height		10	13.1	/	/	/	/
(Optional)Motor	380V	Power(kw)			2.2
	220V	Power(kw)						/
Overall Dimensions	Length(mm)		2000		2280	2000		3020
	Width(mm)		1200		1400	1400		1960
	Height(mm)		2440/2718		2805	2662	3110	3386
Net. Weight(kg)			1400	1700	1810	1700	2110	3750
