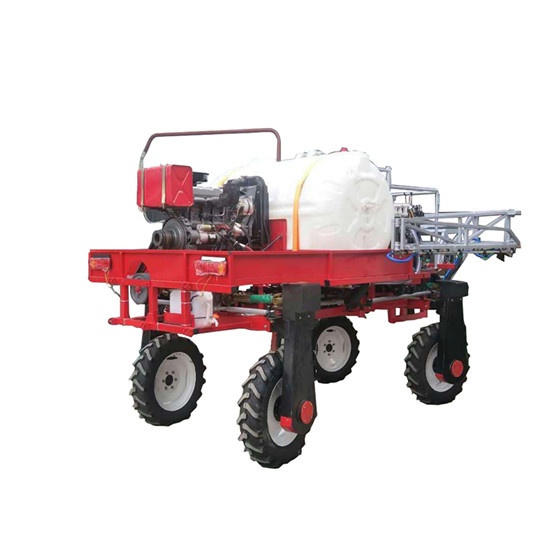

1600L Self-propelled Sprayer
Product Description
The herbicide sprayers are used in dry land and rice fields. Good performance and high efficiency. The sprayer is mainly
dedicated to solving the spraying operation of crops and pests such as wheat, corn, rice, soybean, cotton, tobacco, sugar
cane and sorghum. It can effectively spray large-area crops, which is flexible and convenient to operate and high in efficiency.
Herbicide sprayers are suitable for a wide range of crops. The sprayer requires a differential lock. Once it is captured in the
rice fields, the differential lock can help remove it. In addition, the manure paving device can be easily fertilized.
Specification Detail
|
proformance
|
Model
|
3WPZ-1000
|
3WPZ-1600
|
|
Type
|
self-propelled
|
self-propelled
|
|
working size
|
4550×11700×3240
|
4550×11700×3240
|
|
trasnport size
|
4550×2200×2610
|
4550×2200×2610
|
|
Weight
|
1500kgs
|
1600kgs
|
|
Min ground clearance
|
1.2m
|
1.0m
|
|
wheel base
|
1.70-2.0m adjustable
|
1.45m or 2.15m
|
|
spraying working pressure
|
0.3-0.5mpa
|
0.3-0.5mpa
|
|
spraying working width
|
12m(Hydraulic cylinder)
|
12m(Hydraulic cylinder)
|
|
Engine
|
Model
|
diesel engine
|
diesel engine
|
|
Type
|
water-cooling,four-cylinders
|
water-cooling,four-cylinders
|
|
Kw/rpm
|
36.8/2400
|
36.8/2400
|
|
start method
|
electrical starting
|
electrical starting
|
|
driving system
|
drive type
|
Four-wheel driving
|
Four-wheel driving
|
|
steering type
|
four-wheel steering
|
four-wheel steering
|
|
break type
|
Disc brake
|
Disc brake
|
|
clutch type
|
Dry multi-plate friction type
|
Dry multi-plate friction type
|
|
medicinal tank box
|
capacity
|
1000L
|
1600L
|
|
stirring method
|
return flow agitation
|
return flow agitation
|
|
pump
|
Type
|
diaphragm pump
|
diaphragm pump
|
|
working pressure
|
0-2.5mpa
|
0-2.5mpa
|
|
rate of flow
|
60 l/min
|
60 l/min
|
|
spray nozzle
|
Type
|
sector
|
sector
|
|
Qty
|
23pcs
|
23pcs
|
|
interval
|
500mm
|
500mm
|
|
tyre
|
|
Solid Tyre 123*8mm
|
pneumatic tyre 89.5*12mm
|
|
working efficiency
|
ha/h
|
2.5-4ha/h
|
2.5-4ha/h
|
|
Remarks
|
|
Especially for wheat or maize,please kindly check the ridge distance of maize
|
This grade is pneumatic tyre,here clients for soybean/cotton
|

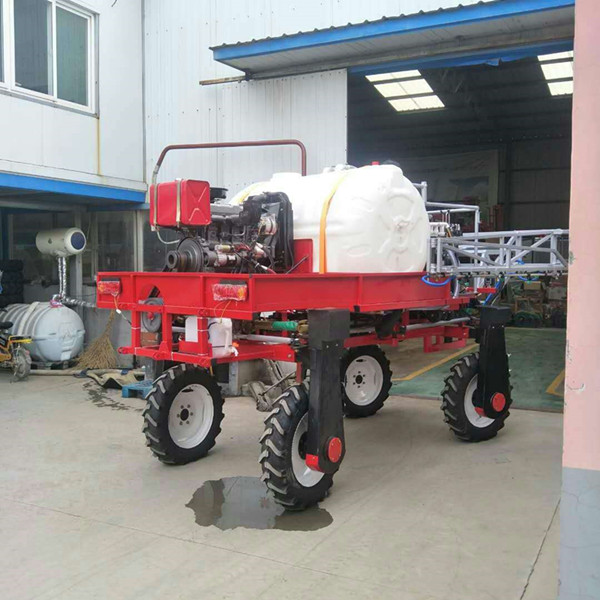

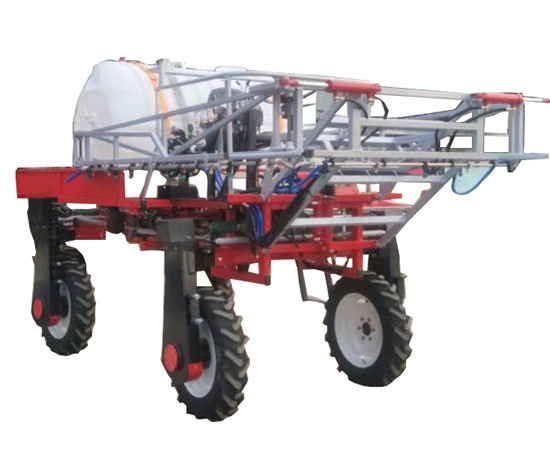

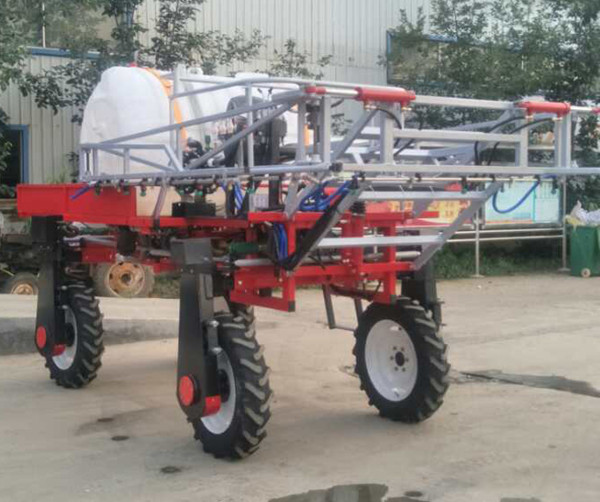

Detailed Images

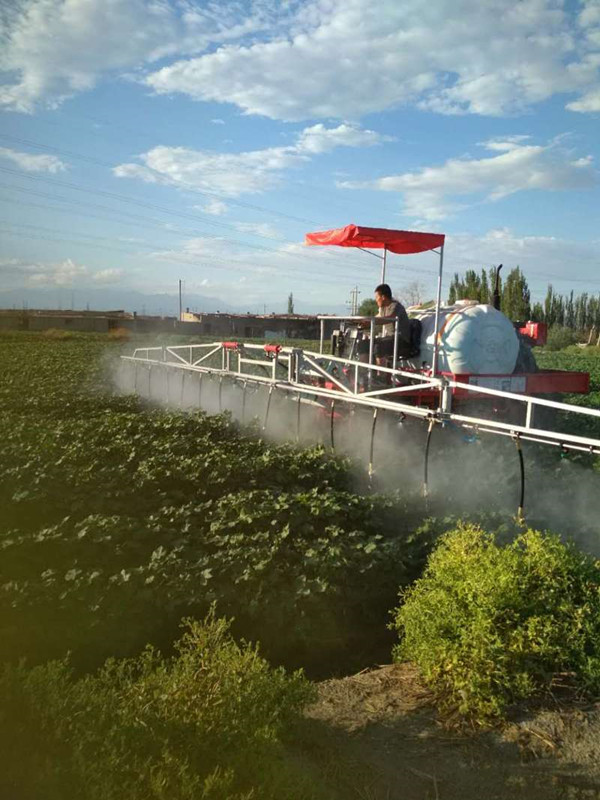

Working on Site

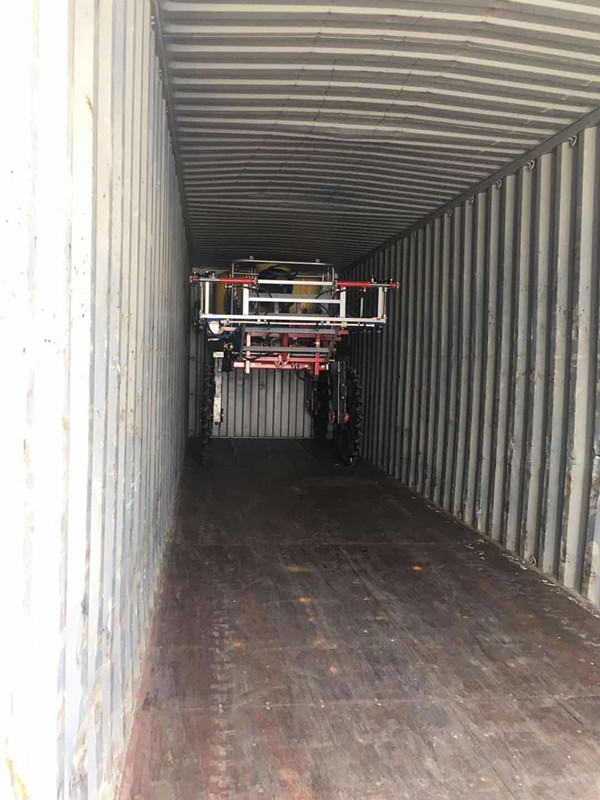

Packaging & Shipping
