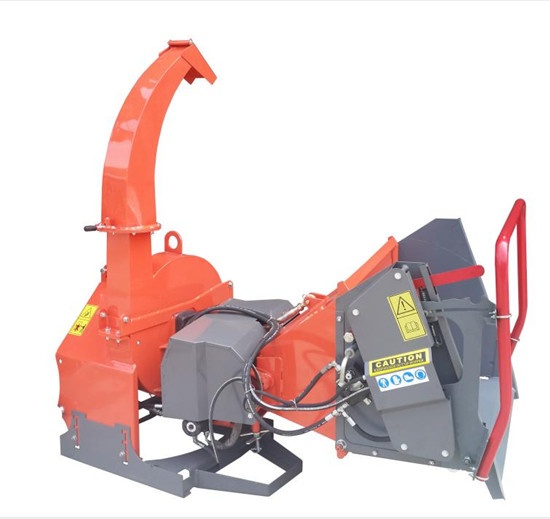

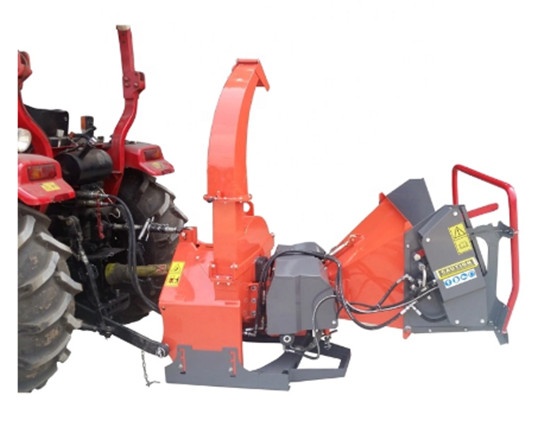

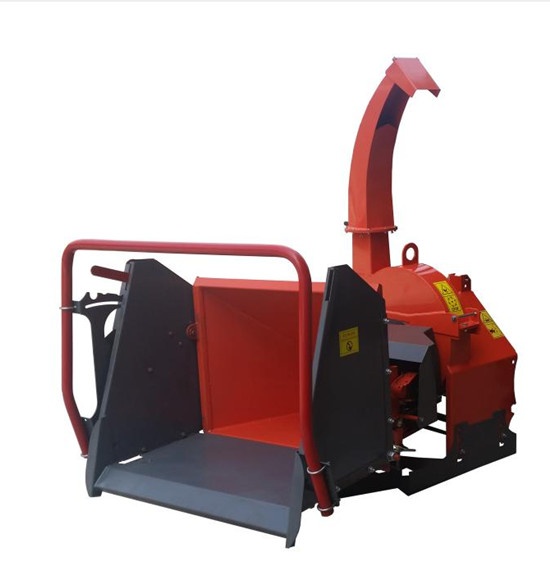

Hydraulic Wood Chipper BX52R
Product Description
BXR Series hydraulic wood chipper has a direct drive rotor with the hopper mounted at an angle to the rotor, another two pipeline
connect to the tractor hydraulic station, the hydraulic flow feeding two hydraulic motors to drive the two teeth rollers input and output
stop action to continuous chip the branches, limbs, so you just put the branches inside, other job works by chipper self. The feeding
speed also can adjust by yourselves whatever you want. The feed chute folds up easily and securely, making it easy to travel with on
narrow paths and to store in the shed. If you have a compact tractor in the 30-100/65-150 Hp range this wood chipper is perfect , Just
needed small farms and lifestyle blocks.
Specification Detail
|
Model Number
|
BX42S
|
BX42R
|
BX62S
|
BX62R
|
BX92R
|
|
Cutter Diameter
|
630mm
|
630mm
|
740mm
|
740mm
|
940mm
|
|
Cutter Thickness
|
18mm
|
18mm
|
25mm
|
25mm
|
32mm
|
|
Cutter Weight
|
50kg
|
50kg
|
94.5kg
|
94.5kg
|
171kg
|
|
Blade qty
|
4
|
4
|
4
|
4
|
4
|
|
Blade material
|
65mn
|
65mn
|
65mn
|
65mn
|
65mn
|
|
blade size
|
210*60*9
mm
|
210*60*9
mm
|
240*60*9
mm
|
240*60*9
mm
|
320*100*17
mm
|
|
Feed Hopper size
|
500*500
mm
|
500*500
mm
|
580*580
mm
|
580*580
mm
|
620*620
mm
|
|
Chip Mouth size
|
100mm
|
100mm
|
150mm
|
150mm
|
220mm
|
|
Wood Chip size
|
≤6mm
|
≤6mm
|
≤6mm
|
≤6mm
|
≤9mm
|
|
Package Size
|
1140*910*1260mm
|
1130*810*1800mm
|
980*920*1950mm
|
1220*910*2100mm
|
1210*1130*2000mm
|
|
Package weight
|
250kg
|
340kg
|
360kg
|
557kg
|
783kg
|
|
Match Power
|
25-50HP
|
35-60HP
|
35-60HP
|
60-100HP
|
75-120HP
|

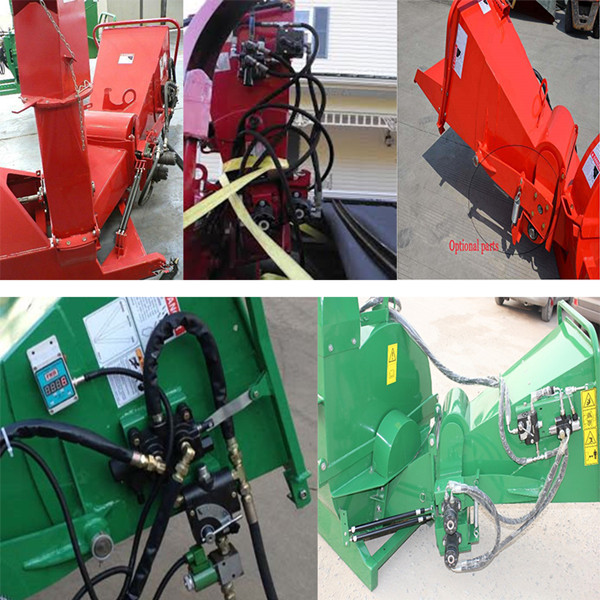

Detailed Images

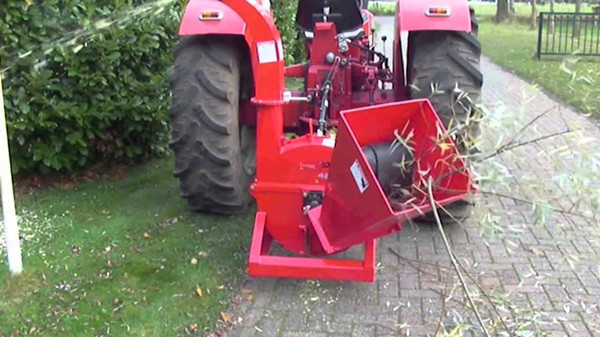

Working on Site
Packaging & Shipping
