BX62S Wood Chipper
Product Description
BXS Series wood chipper has a direct drive rotor with the hopper mounted at an angle to the rotor this controls the flow of branches,
limbs and brush for continuous chipping at maximum capacity. The brush is dragged into the chipper by the blade pulling at it as it cuts ,
so you can be ready with the next piece, keeping your hands well away from the business end in the process. The feed chute folds up
easily and securely, making it easy to travel with on narrow paths and to store in the shed. If you have a compact tractor in the 30-100Hp
range this wood chipper is perfect , Just needed small farms and lifestyle blocks.
Specification Detail
|
Model Number
|
BX42S
|
BX42R
|
BX62S
|
BX62R
|
BX92R
|
|
Cutter Diameter
|
630mm
|
630mm
|
740mm
|
740mm
|
940mm
|
|
Cutter Thickness
|
18mm
|
18mm
|
25mm
|
25mm
|
32mm
|
|
Cutter Weight
|
50kg
|
50kg
|
94.5kg
|
94.5kg
|
171kg
|
|
Blade qty
|
4
|
4
|
4
|
4
|
4
|
|
Blade material
|
65mn
|
65mn
|
65mn
|
65mn
|
65mn
|
|
blade size
|
210*60*9
mm
|
210*60*9
mm
|
240*60*9
mm
|
240*60*9
mm
|
320*100*17
mm
|
|
Feed Hopper size
|
500*500
mm
|
500*500
mm
|
580*580
mm
|
580*580
mm
|
620*620
mm
|
|
Chip Mouth size
|
100mm
|
100mm
|
150mm
|
150mm
|
220mm
|
|
Wood Chip size
|
≤6mm
|
≤6mm
|
≤6mm
|
≤6mm
|
≤9mm
|
|
Package Size
|
1140*910*1260mm
|
1130*810*1800mm
|
980*920*1950mm
|
1220*910*2100mm
|
1210*1130*2000mm
|
|
Package weight
|
250kg
|
340kg
|
360kg
|
557kg
|
783kg
|
|
Match Power
|
25-50HP
|
35-60HP
|
35-60HP
|
60-100HP
|
75-120HP
|

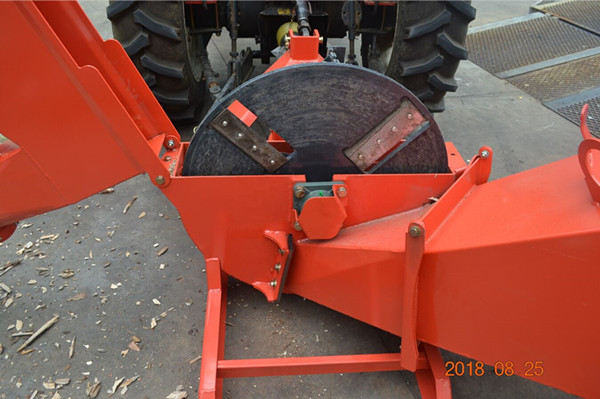

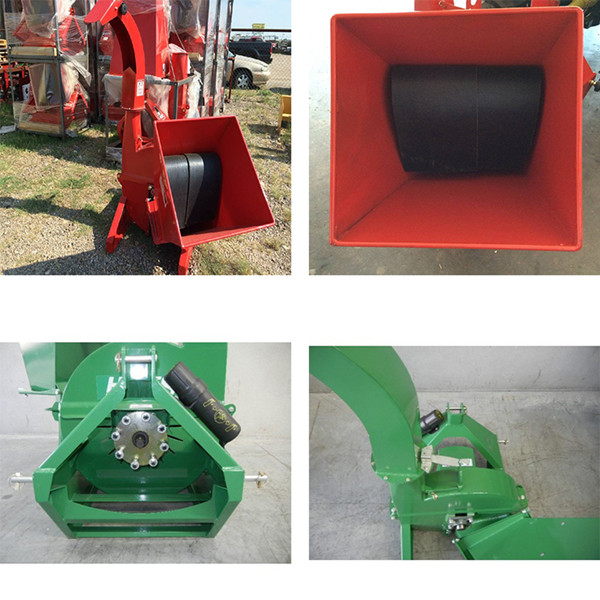

Detailed Images

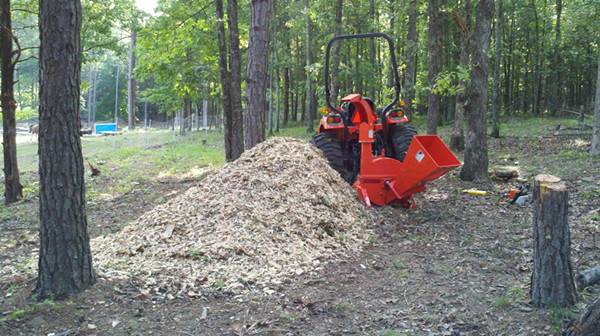

Working on Site
Packaging & Shipping
