Wuhan XinKai Machinery Co.,Ltd

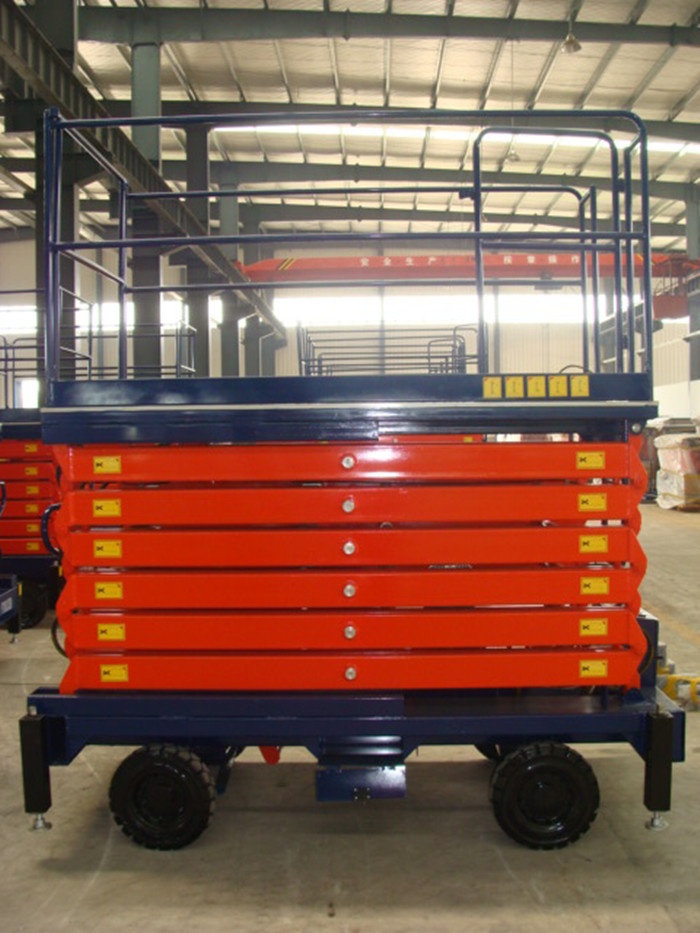

 Mobile Scissor Lift with Capacity 500kg

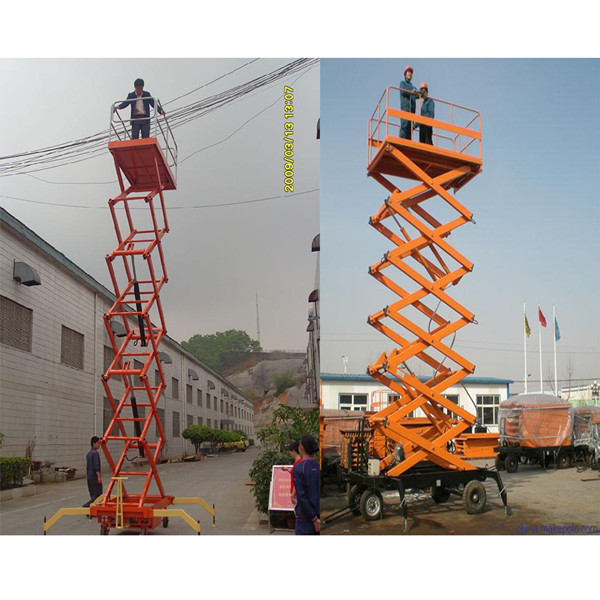

1. SJY mobile scissor scissor lift is widely used for high-altitude equipment installation, maintenance, decoration and so on, also
multi-layer workshop, warehouses, production lines, transfer of goods with height difference and truck loading and unloading, etc.
2. Lifting Oil Cylinder is equipped with unloading flow-limiting valves to ensure the steady falling when lifted to the highest.
3. Electic switch or remote control lift switch  (optional) for people both on the ground and platform to operate.
4. Equipped with manual oil pump  (optional) to ensure operation without power supply.

Model			SJY0.5-6	SJY0.5-9	SJY0.5-11	SJY0.5-14
Rated Capacity (kg)			500
Max. Plate Height(mm)			6000	9000	11000	14000
Min.Plate Height(mm)			1290	1558	1560	2164
Plate size( LxW) mm			1830*1000		2100*1140	2500*1500
(Optional) Manual Pump	Discharge		22
	Lifting Height		16	10		/
(Optional)Motor	380V	Power(kw)	1.5			2.2
	220V	Power(kw)	2.2			/
Overall Dimensions	Length(mm)		1900		2280	2500
	Width(mm)		1200		1340	1695
	Height(mm)		2326	2594	2596	3200
Net. Weight(kg)			1200	1340	1660	2850
