Products > Farm Implements > Seeders/Planters > 4 Rows Pneumatic Seeder

Product name : 4 Rows Pneumatic Seeder

Product No. : 20219715305

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

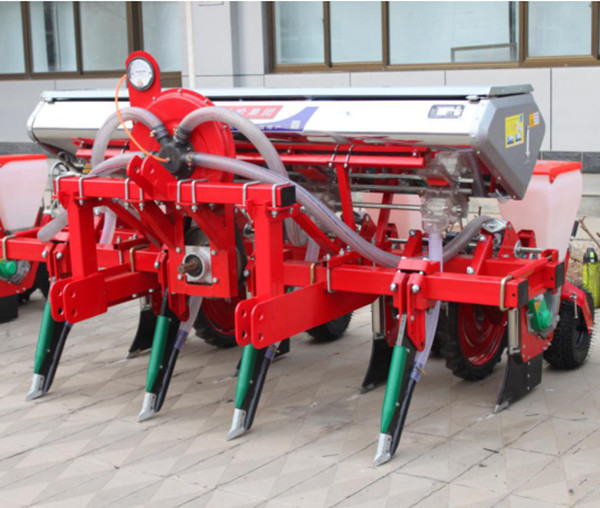

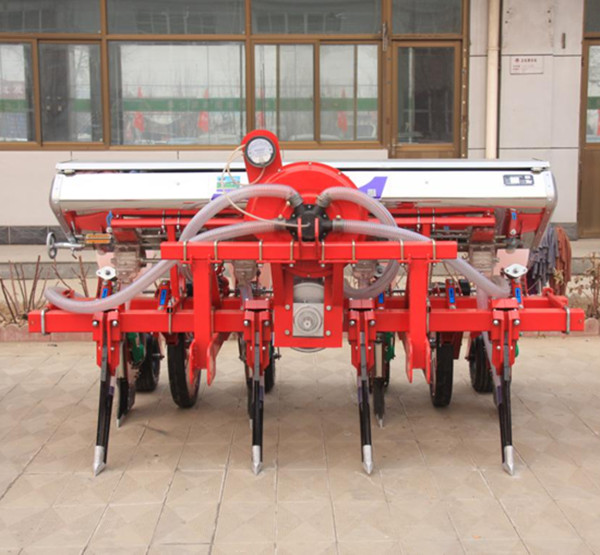

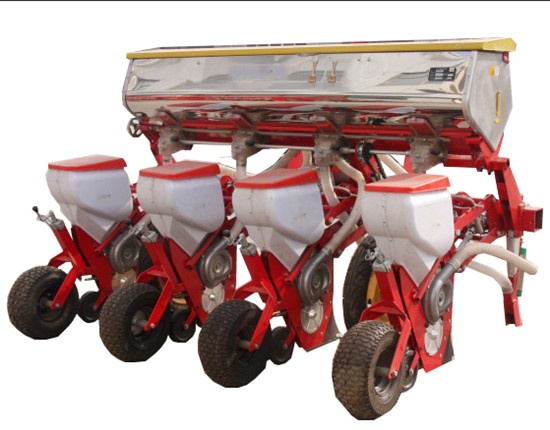

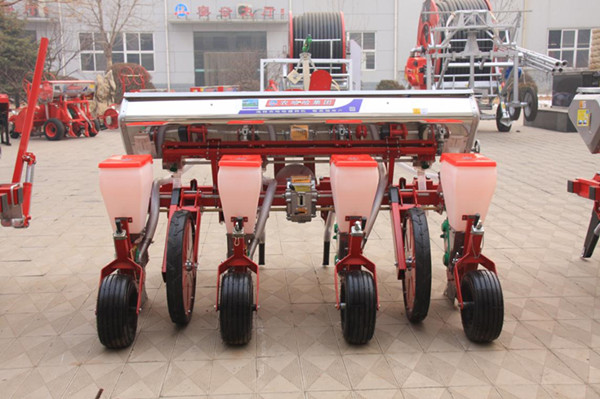

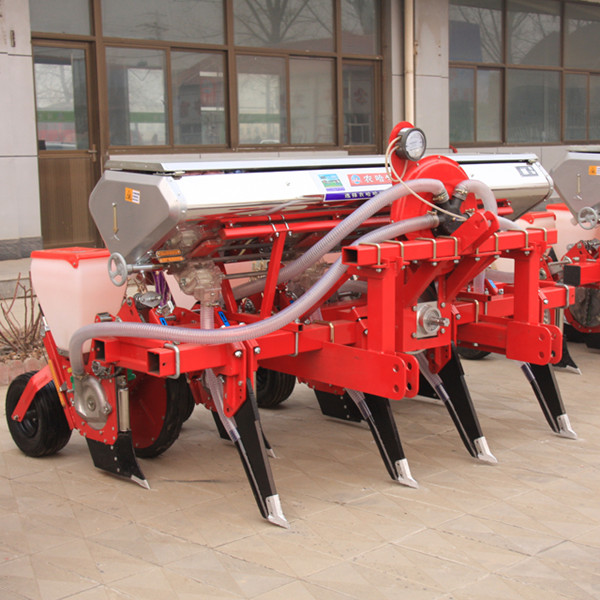

4 Rows Pneumatic Seeder

Product Description

It worked with wheel tractors, connecting tractor via 3 point linkage and driven by tractor rear PTO.

It has both function of plant and fertilizer, suitable for corn and soybean. It finished fertilizer when seed
and makes crops grow better.

The seeding device of this machine is driven by the ground wheel, and the air suction type seeding mechanism
can realize single-grain fine sowing, accurate sowing, no seed damage.
Specification Detail

Model	2BYQF-4	2BYQF-6	2BYQF-8
Overall Dimension（mm）	1750×2250×1250	1830×3600×1350	1650×4500×1450
Weight（kg）	530	920	1090
Line Spacing（mm）	500~620	500~620	500~620
Rows	4	6	8
Fertilizer Depth（mm）	30-60 (Distance with seed 60mm）
Fertilizer consumption/ mu（kg）	0~140
Seed Depth（mm）	20~50
Fertilizer Tank（L）	260	195×2	260×2
Seed Tank（L）	18×4	18×6	18×8
Row Spacing（mm）	80、100、120、130、140、150、160、170、 180、200、230、250、280、300、330、360
Matched Power（KW）（HP）	33.1~58.9 （45~80）	73.5~88.2 （100~120）
Rotate Speed（r/min）	4800~5500
Single grain rate of sowing	＞92%
Hole Rate	＜3%
