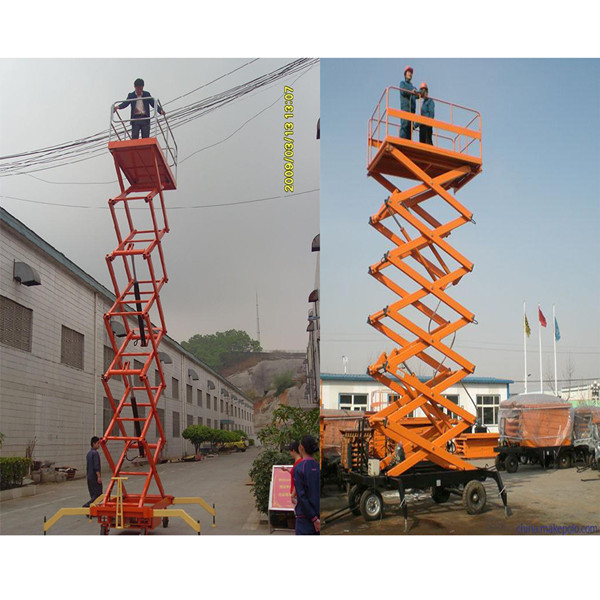

1. SJY mobile scissor scissor lift is widely used for high-altitude equipment installation, maintenance, decoration and so on, also suitable for
multi-layer workshop, warehouses, production lines, transfer of goods with height difference and truck loading and unloading, etc.
2. Lifting Oil Cylinder is equipped with unloading flow-limiting valves to ensure the steady falling when lifted to the highest.
3. Electic switch or remote control lift switch  (optional) for people both on the ground and platform to operate.
4. Equipped with manual oil pump  (optional) to ensure operation without power supply.

Model			SJY0.3-6	SJY0.3-9	SJY0.3-11	SJY0.3-14	SJY0.3-16
Rated Capacity (kg)			300
Max. Plate Height(mm)			6000	9000	11000	14000	16000
Min.Plate Height(mm)			1127	1343	1560	1940	2350
Plate size( LxW) mm			1830*1000		2100*1140	2400*1250	2750*1600
(Optional) Manual Pump	Discharge		22				/
	Lifting Height		16		10	/	/
(Optional)Motor	380V	Power(kw)	1.5			2.2	/
	220V	Power(kw)	2.2			/	/
Overall Dimensions	Length(mm)		1900		2800	2500	3020
	Width(mm)		1200		1340	1645	1960
	Height(mm)		2163	2379	2596	2976	3386
Net. Weight(kg)			940	1100	1535	2280	3750
