Tube Disc Plough 1LYX-430
Product Description
The 1LYX disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil.
Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and
with many stones and break brickbat, etc. In the field, it is good at cutting grasses and straw, free from stopped by the grasses,
soil or stones. etc. It is efficient in the work. It is of good quality during operation. It is easy to adjust and strong and durable.
Specification Detail
|
Type
|
1LYX-230
|
1LYX-330
|
1LYX-430
|
1LYX-530
|
1LYX-630
|
|
Working width (mm)
|
600
|
900
|
1200
|
1500
|
1800
|
|
Working depth (mm)
|
250-300
|
|
No. of disc (pc)
|
2
|
3
|
4
|
5
|
6
|
|
Dia of disc (mm)
|
660/710
|
|
Weight (kg)
|
320
|
400
|
490
|
650
|
750
|
|
Linkage
|
Three point mounted
|
|
Matched power (hp)
|
40-50
|
60-80
|
80-100
|
100-120
|
120-160
|

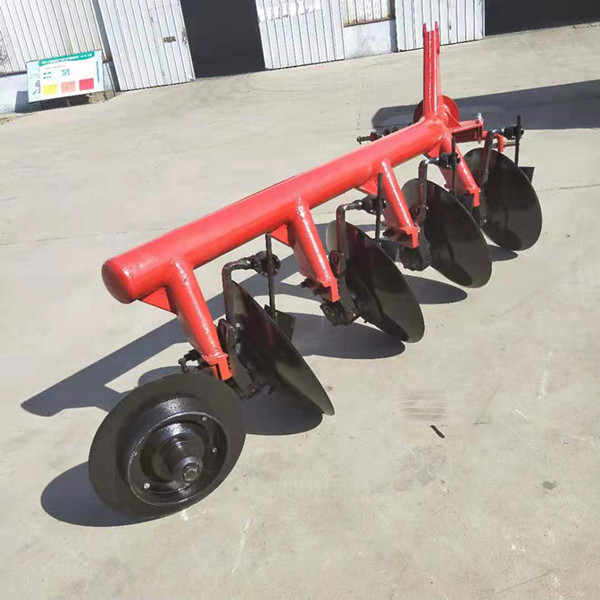

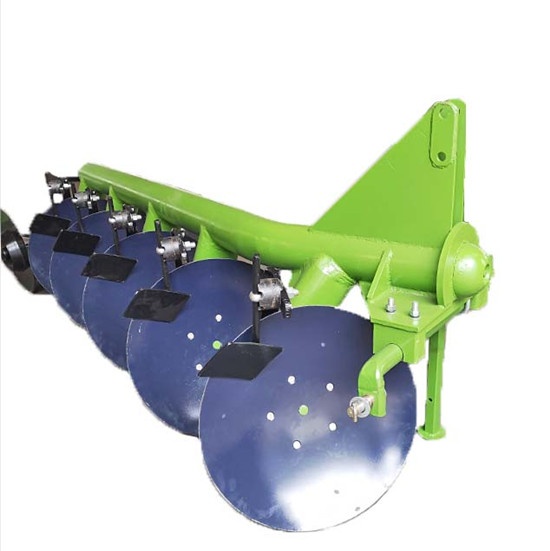

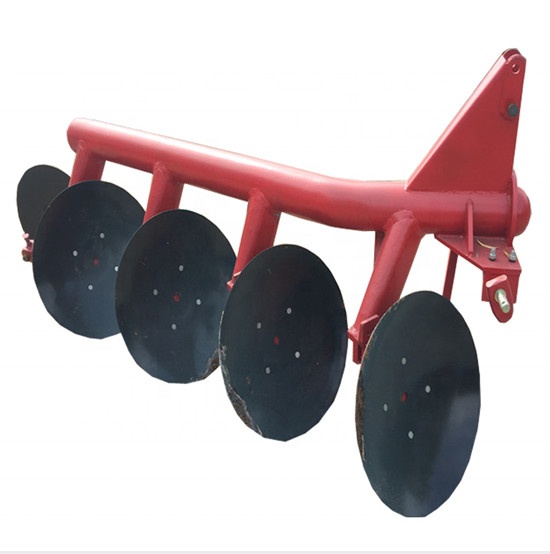

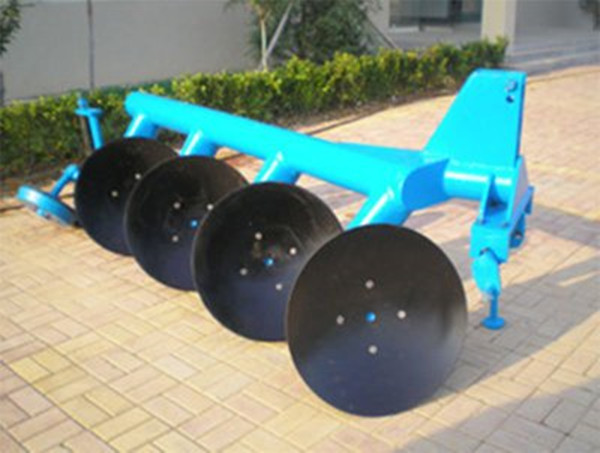

Detailed Images

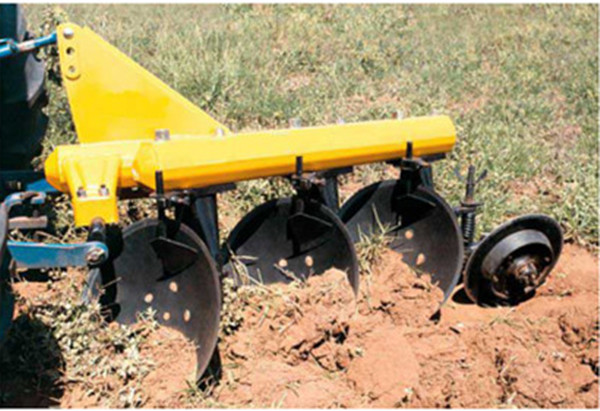

Working on Site
Packaging & Shipping
