Products > Farm Implements > Harrows > 4m Heavy Duty Disc Harrow

Product name : 4m Heavy Duty Disc Harrow

Product No. : 202181310345

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

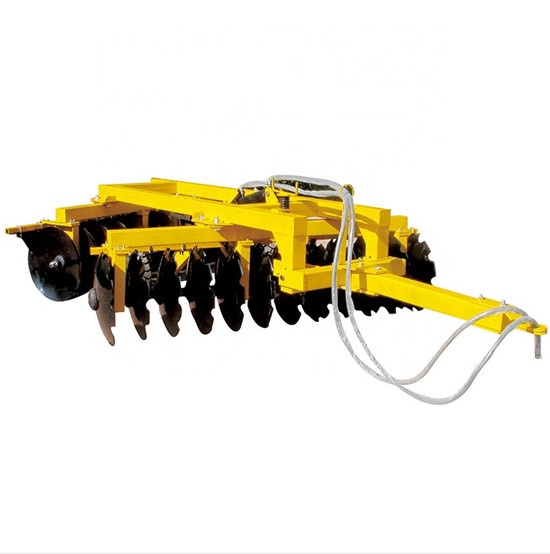

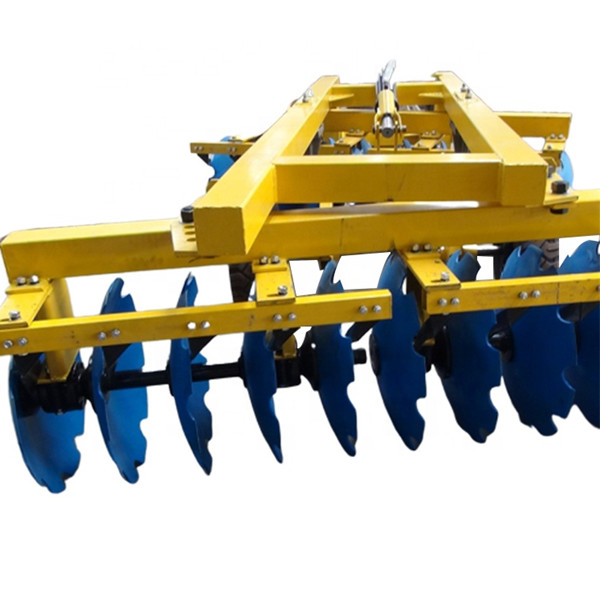

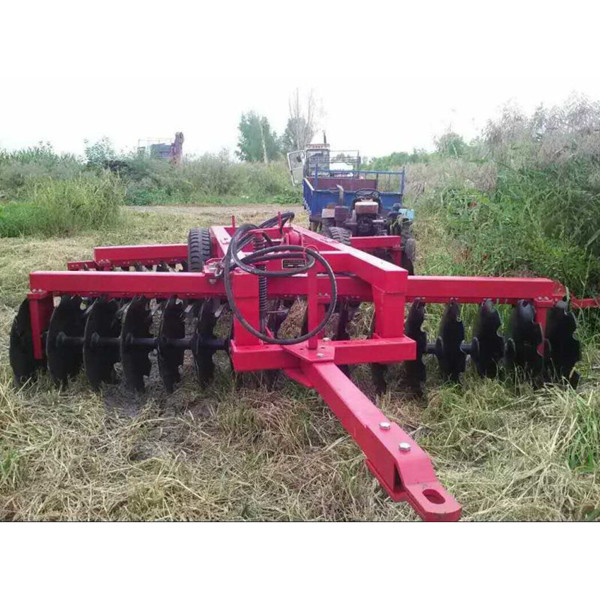

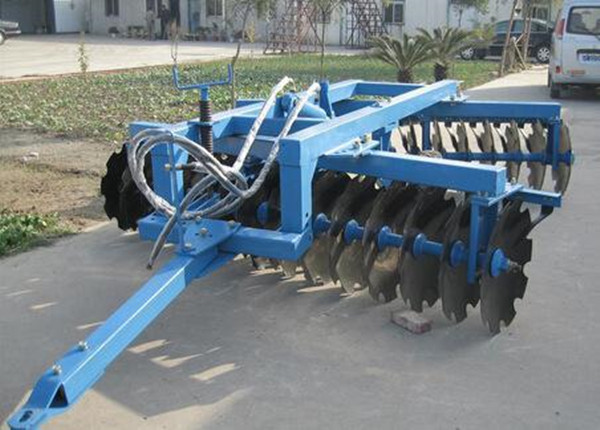

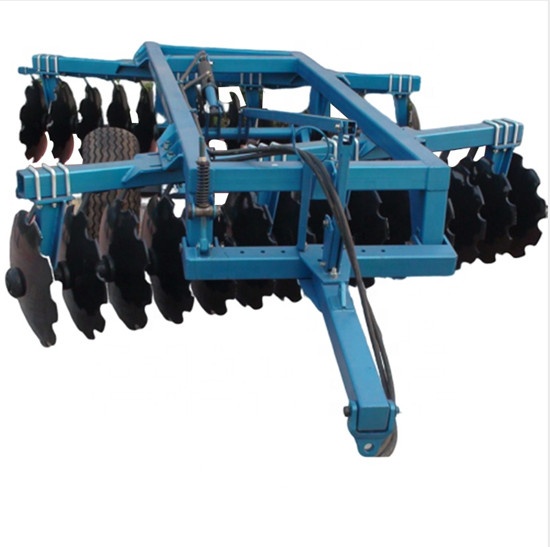

4m Heavy Duty Disc Harrow

Product Description

1BZ series of Hydraulic offset heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well,
mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil,
and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.

Specification Detail

Model	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Width of cut (mm)	1800	2200	2500	3000	3400	4000	5300
Depth of cut (mm)	200
Dia. of disc (mm)	660
QTY of disc	16	20	24	28	32	36	48
Weight (kg)	1160	1250	1350	1430	1550	1900	2500
Tractor power (hp)	70	80	90	100	120	150	180
