Products > Warehouse Equipment > > Single Mast Aerial Work Platform
Single Mast Aerial Work Platform Single Mast Aerial Work Platform Single Mast Aerial Work Platform

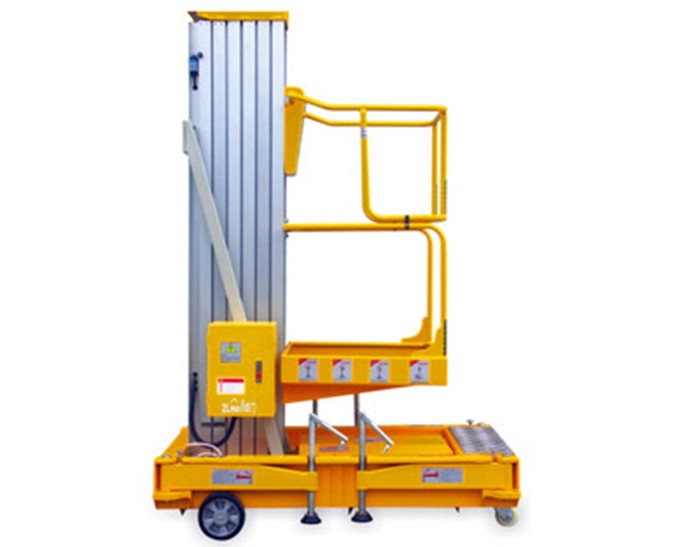

Product name : Single Mast Aerial Work Platform
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

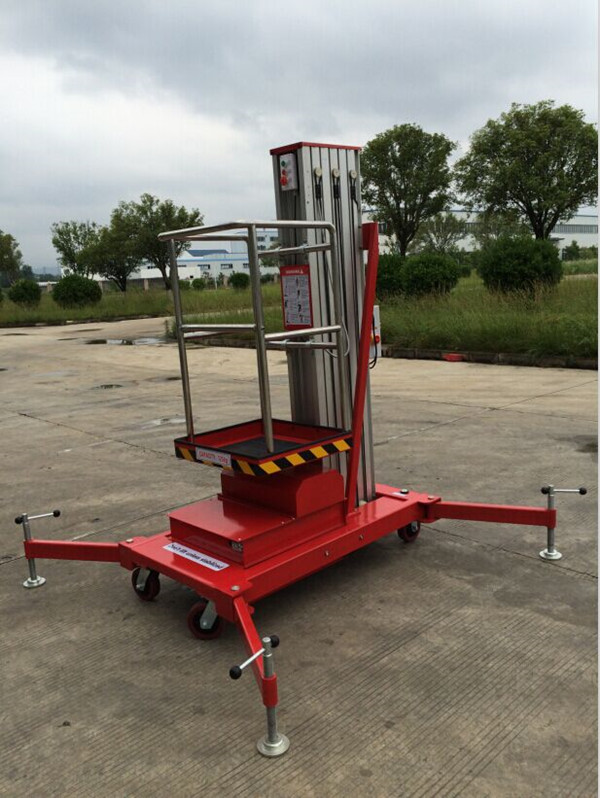

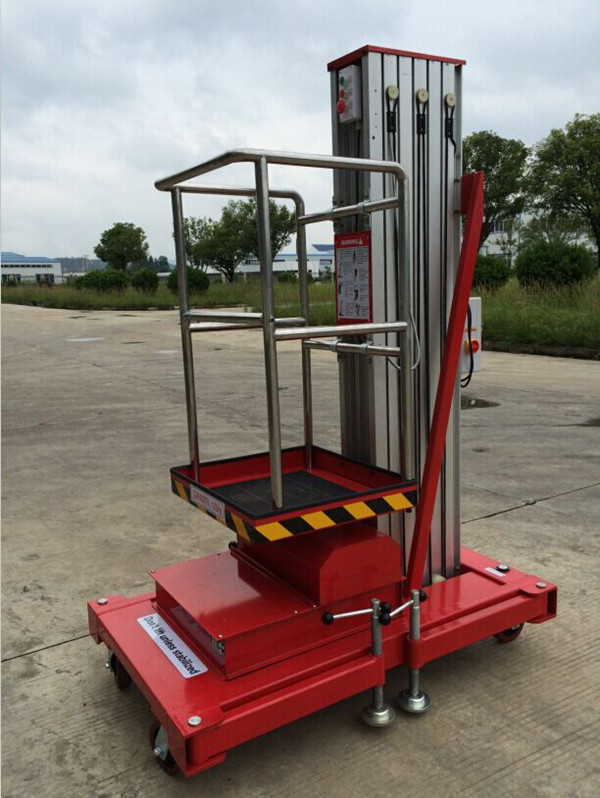

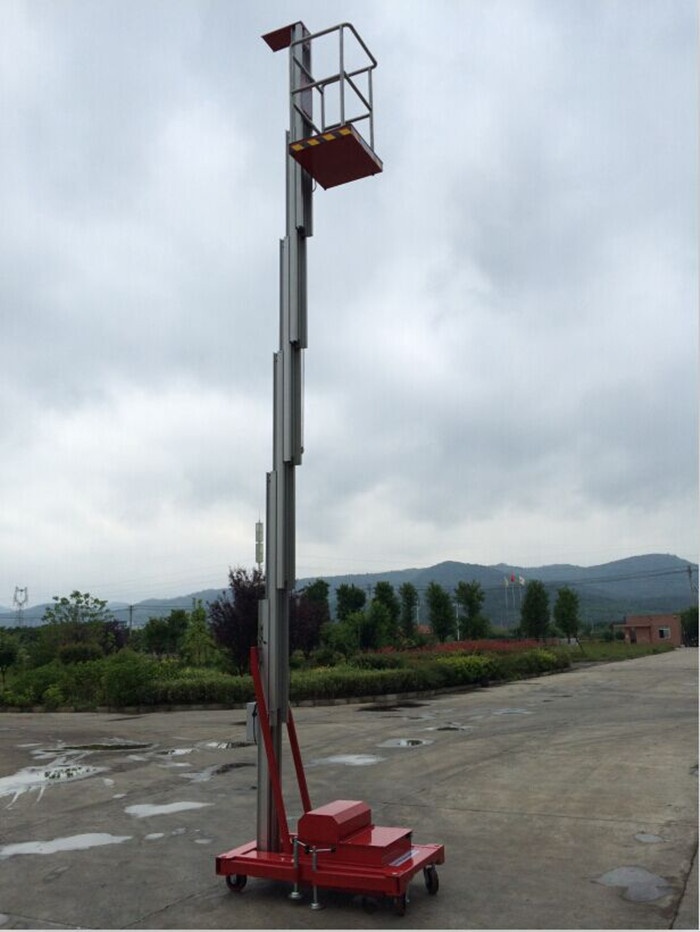

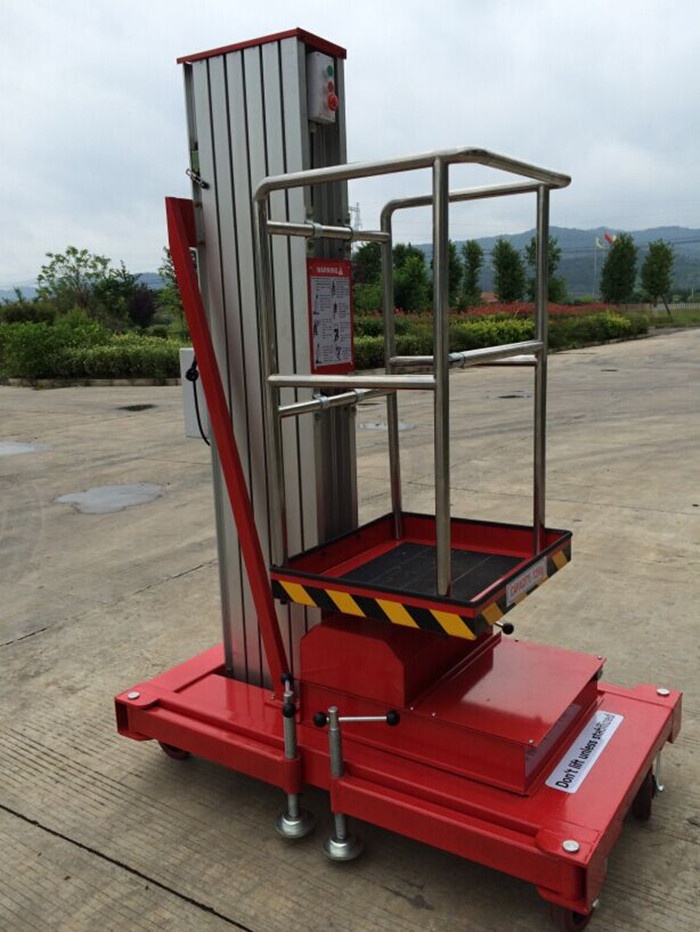

Single Mast Aerial Work Platform

1. Stable ascending and descending. Masts are made of aluminum. Chains are tightly connected.
2. Safe operation. Four supporting rods prevent operators from leaning.
3. Easy to use. Only one person can push forward. When folded, it can enter general standard size door or corridor, as well as electrical lift of buildings.

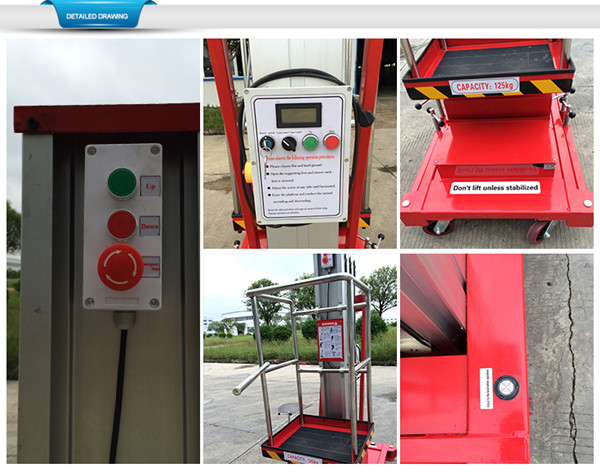

4. Operation system on the lift platform and emergency stop button on the base plate to ensure safety.

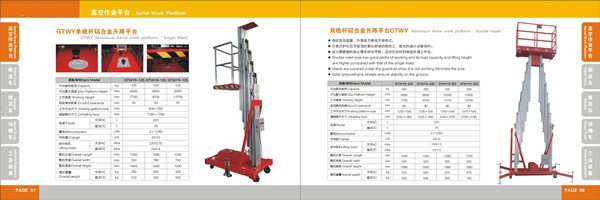

Model



GTWY6-125

GTWY8-125

GTWY9-125

Capacity

kg

125

125

125

Max.Platform Height

mm

6000

8000

9000

Working Height

7700

9700

10700

Ground Clearance

50

Working Platform Size

600x550

Unfolding Size

1780x1780

Power

AC

V

220

DC

24

Battery

V/Ah

2x12/85

Charger

V/A

24/10

Lifting Motor

AC

v/kw

220/0.75

DC

24/0.8

Overall Length

mm

1280

1280

1340

Overall Width

760

Overall Height

1940

Overall Weight

AC

kg

280

300

320

DC

310

330


350
