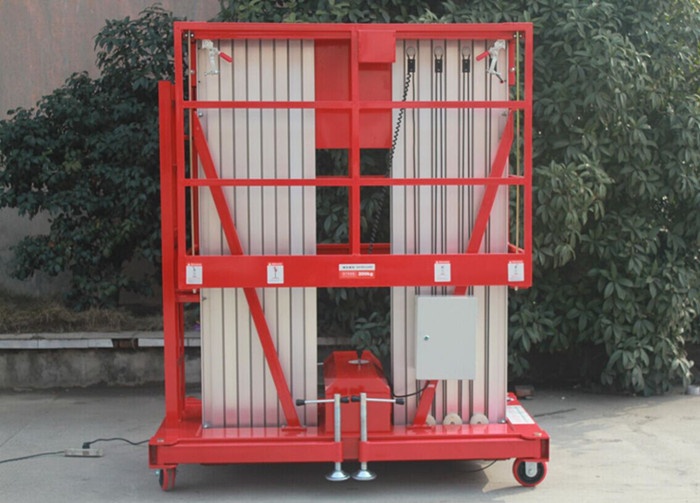

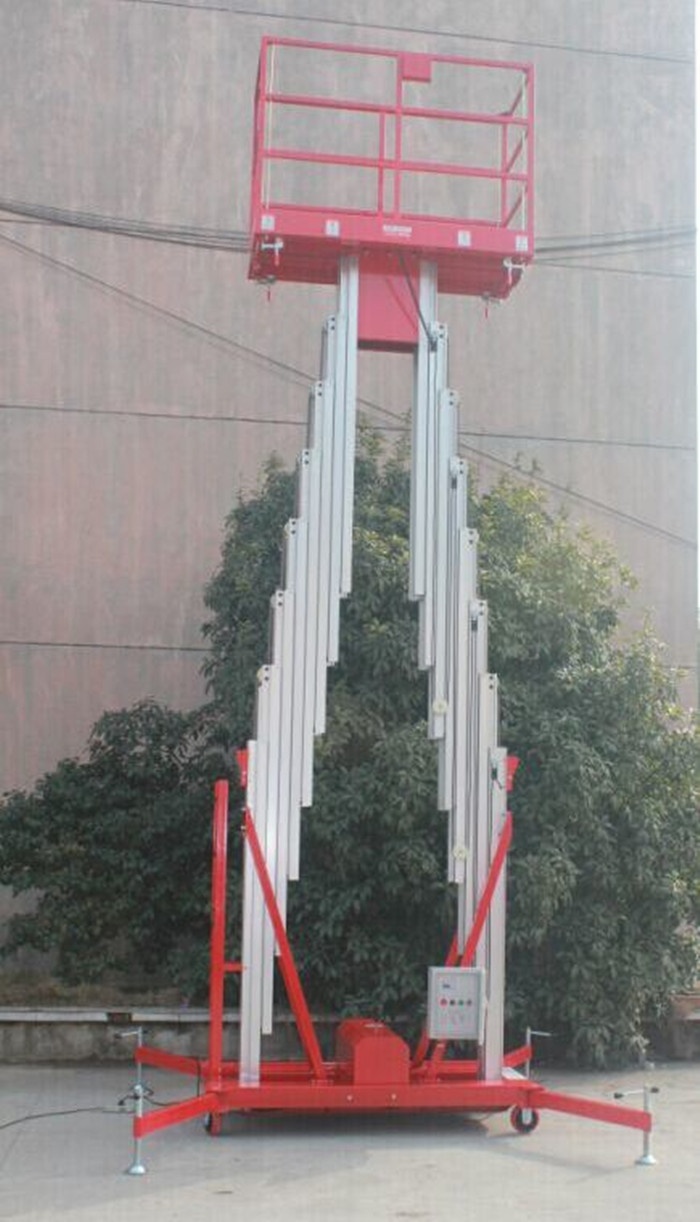

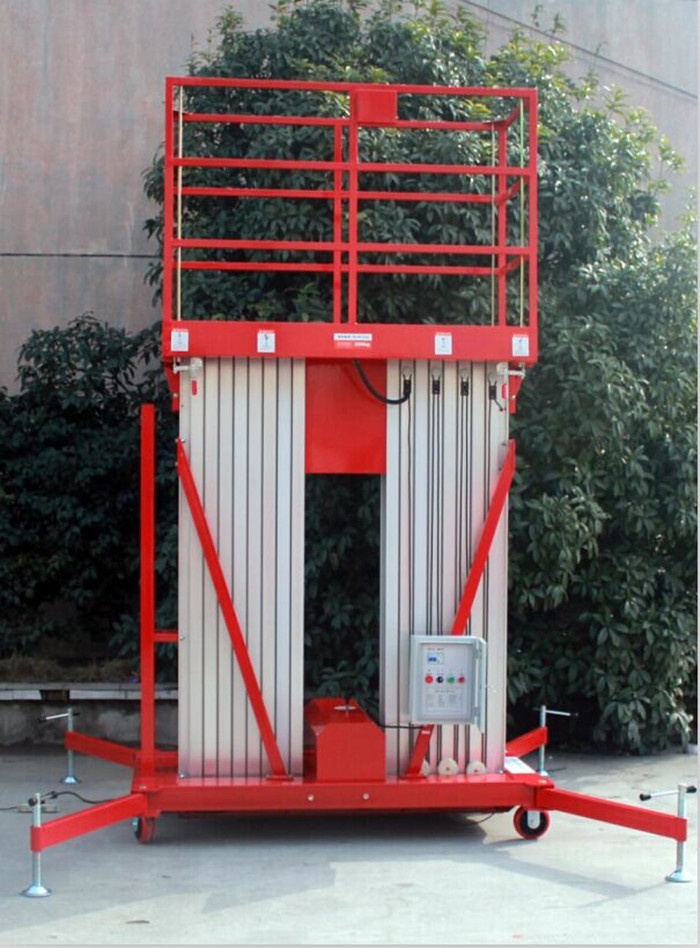

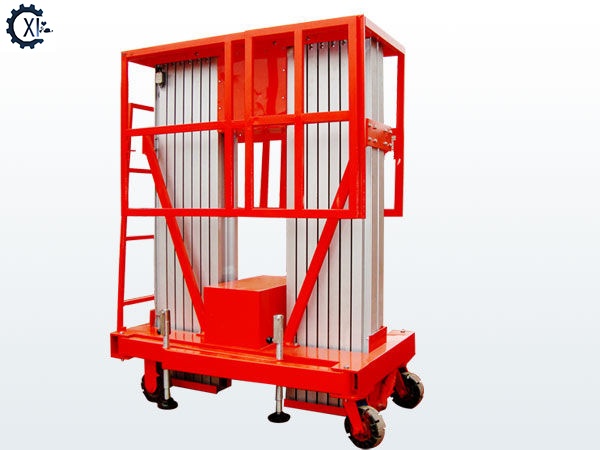

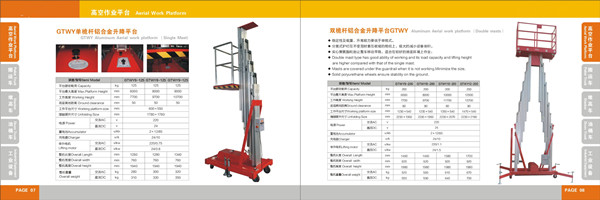

Aluminum Work Platform with Double Mast
1. Double mast type has good ability of working and its load capacity and lifting height are higher compared with that of the single mast.
2. Masts are covered under the guardrail when it is not working, Minimize the size.
3. Solid polyurethane wheels ensure stability on the ground.

Model			GTWY6-200	GTWY8-200	GTWY10-200	GTWY12-200
Capacity		kg	200	200	200	200
Max.Platform Height		mm	6000	8000	10000	12000
Working Height			7700	9700	11700	13700
Ground Clearance			80
Working Platform Size			1230x540		1350x540	1470x540
Unfolding Size			2230x1950		2230x2070	2230x2190
Power	AC	V	220
	DC		24
Battery		V/Ah	2x12/85
Charger		V/A	24/10
Lifting Motor	AC	v/kw	220/1.1
	DC		24/1.5
Overall Length		mm	1460	1460	1580	1700
Overall Width			920
Overall Height			1980
Overall Weight	AC	kg	520	560	610	670
	DC		550	590	640	700
