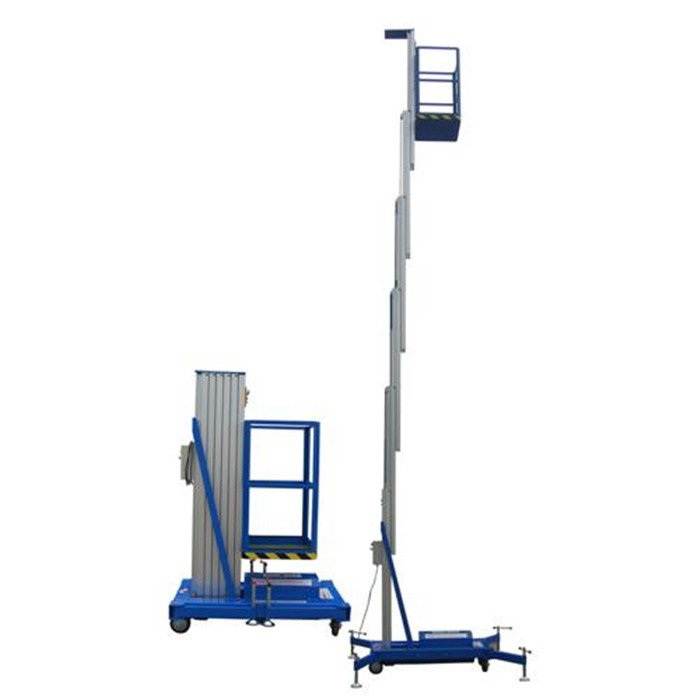

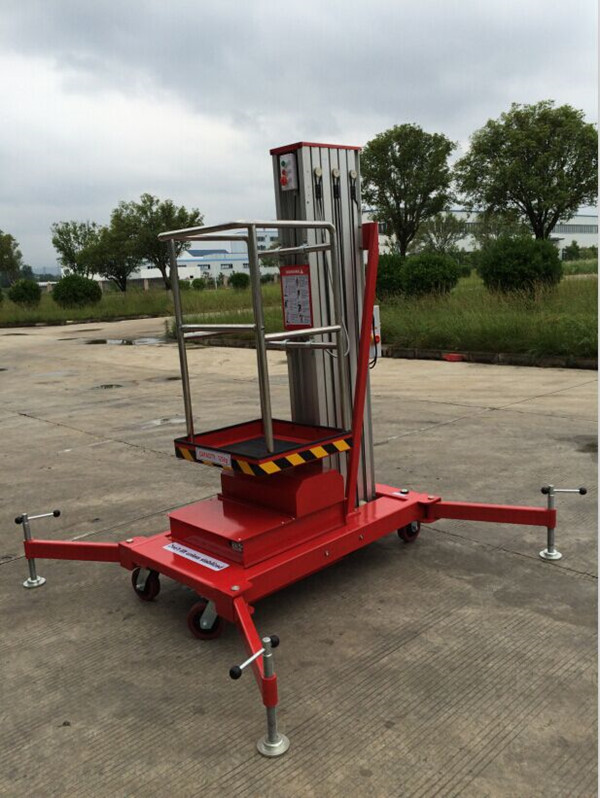

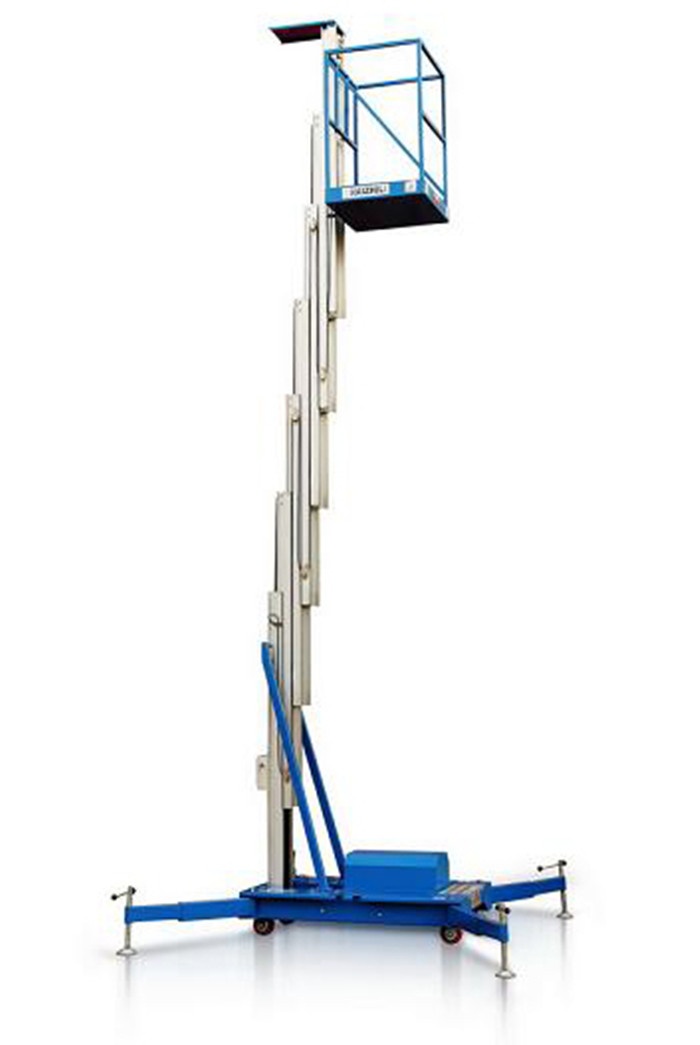

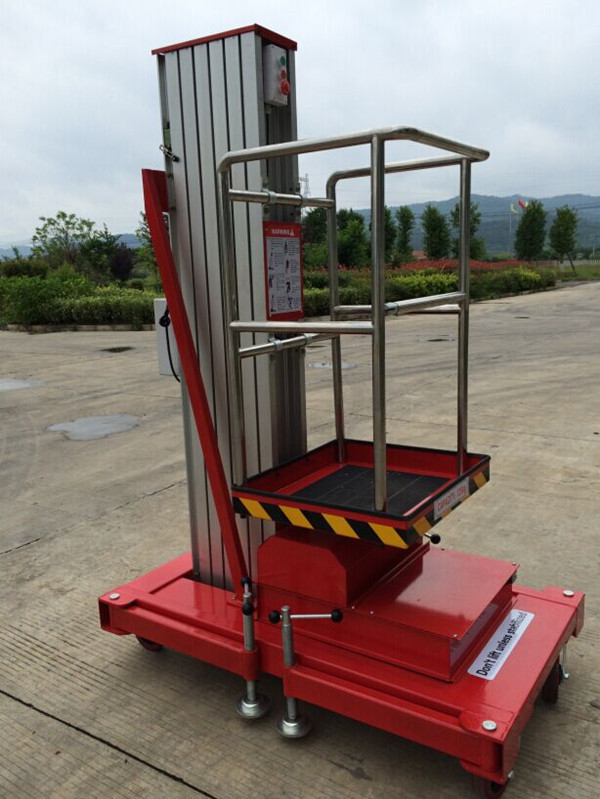

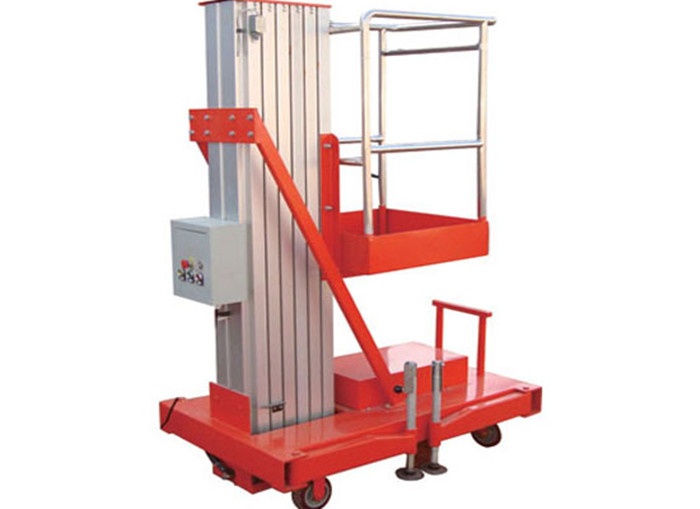

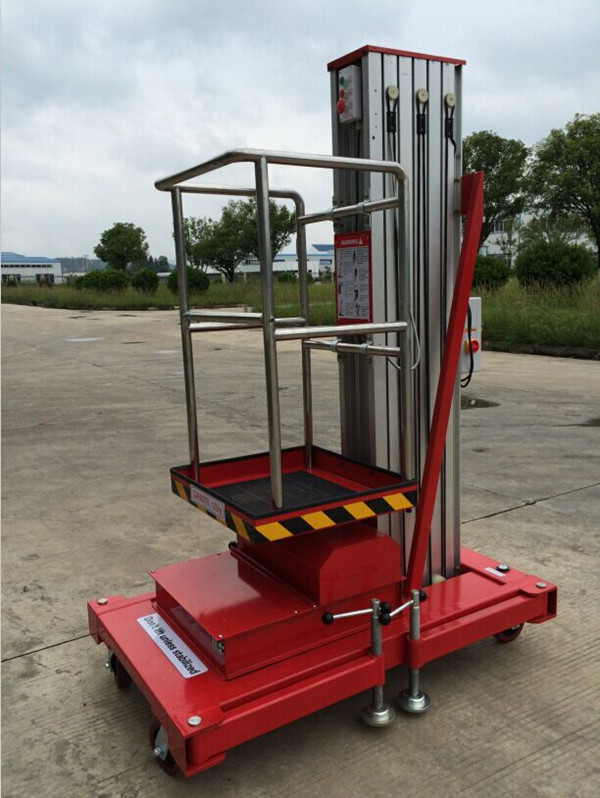

Portable Aluminum Stage Platform
1. Stable ascending and descending. Masts are made of aluminum. Chains are tightly connected.
2. Safe operation. Four supporting rods prevent operators from leaning.
3. Easy to use. Only one person can push forward. When folded, it can enter general standard size door or corridor, as well as electrical lift of buildings.

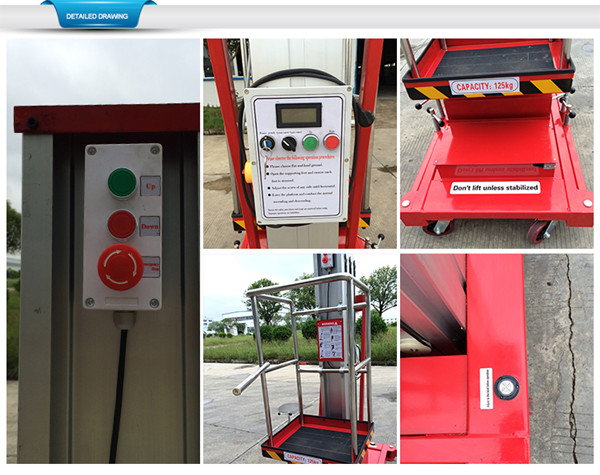

4. Operation system on the lift platform and emergency stop button on the base plate to ensure safety.

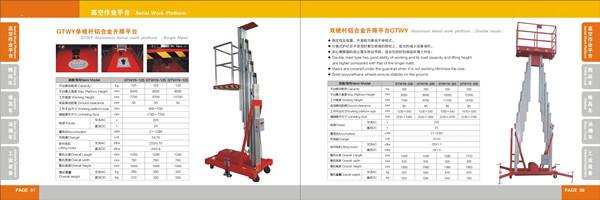

Model			GTWY6-125	GTWY8-125	GTWY9-125
Capacity		kg	125	125	125
Max.Platform Height		mm	6000	8000	9000
Working Height			7700	9700	10700
Ground Clearance			50
Working Platform Size			600x550
Unfolding Size			1780x1780
Power	AC	V	220
	DC		24
Battery		V/Ah	2x12/85
Charger		V/A	24/10
Lifting Motor	AC	v/kw	220/0.75
	DC		24/0.8
Overall Length		mm	1280	1280	1340
Overall Width			760
Overall Height			1940
Overall Weight	AC	kg	280	300	320
	DC		310	330	350
