10ton Big Double Axis Trailer
Product Description
The 7C series farm trailer has various types from 0.5T to 15T. The product has reasonable structure; beautiful appearance,
economic and durable and can match various types of tractors. The 7C series agriculture divide into the suspension type and
half suspension type with the trailer, self-discharging and not self-discharging and so on. The load-carrying capacity matching
with each kind of 8-120 horsepower tractor is suitable for road and the field transportation.
Specification Detail
|
Model
|
7CX-5
|
7CX-6
|
7CX-8
|
7CX-10
|
|
Loading size(mm)
|
4000*2150*400
|
4200*2150*400
|
5300*2150*500
|
5600*2150*600
|
|
Outside dimension(mm)
|
5800*2250*1850
|
6300*2250*1950
|
7100*2250*2050
|
7300*2250*2250
|
|
loading capacity
|
5 ton
|
6 ton
|
8 ton
|
10 ton
|
|
dead weight
|
1200kgs
|
1400kgs
|
2300kgs
|
3200kgs
|
|
tire/QTY
|
750-16 / 4
|
825-16 / 4
|
750-16 / 8
|
825-16 / 8
|
|
Brake forms
|
Air brake
|
Air brake
|
Air brake
|
Air brake
|
|
match power
|
30-60hp
|
30-60hp
|
50-100hp
|
80-150hp
|

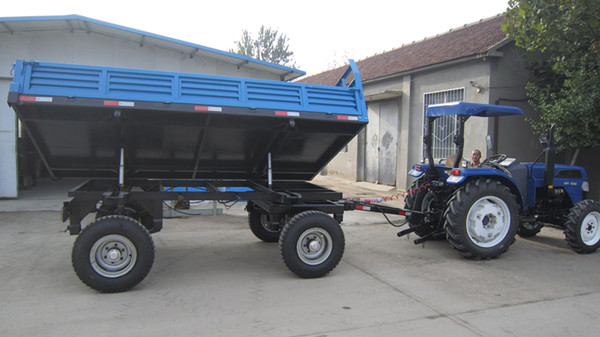

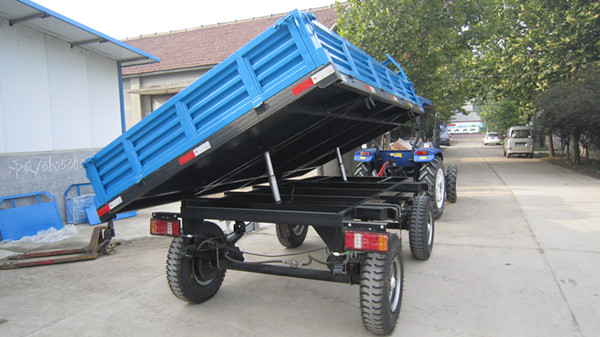

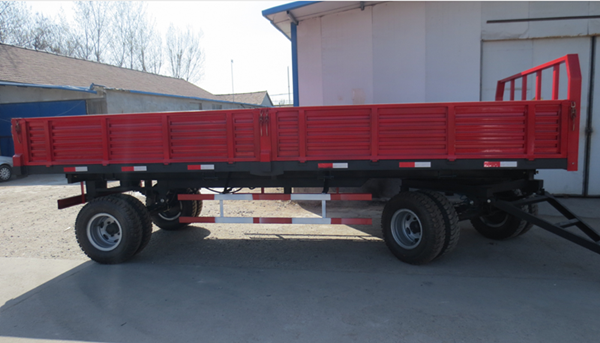

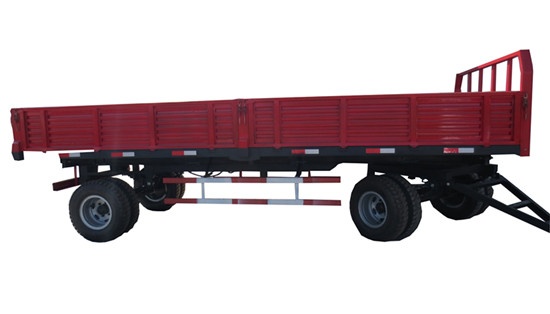

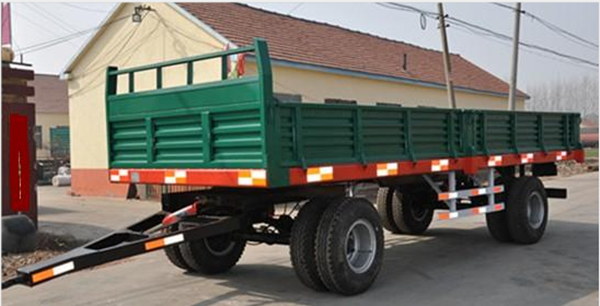

Detailed Images
Working on Site
Packaging & Shipping
