Products > Mini Backhoes > > PTO Driven Farm Backhoe for Sale LW-12

Product name : PTO Driven Farm Backhoe for Sale LW-12

Product No. : 20217716443

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

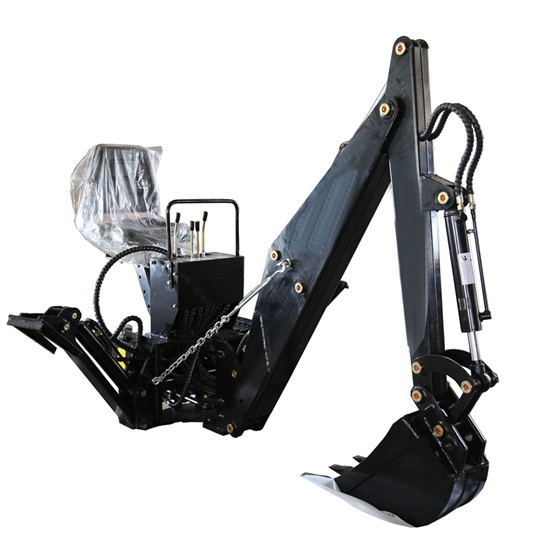

PTO Driven Farm Backhoe for Sale LW-12

Product Description

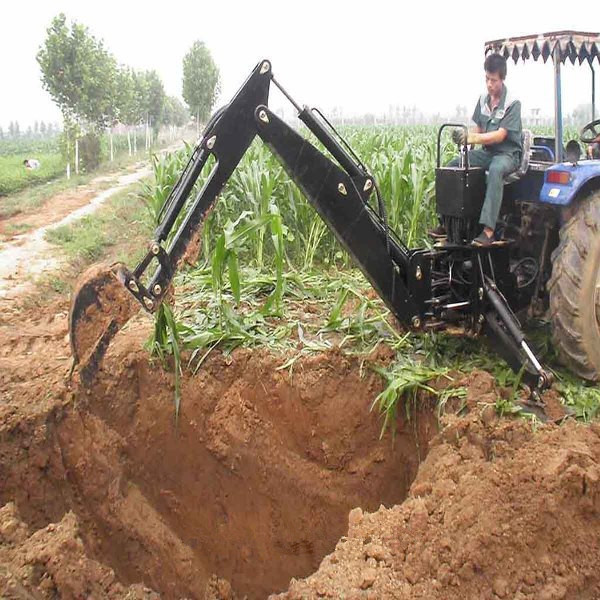

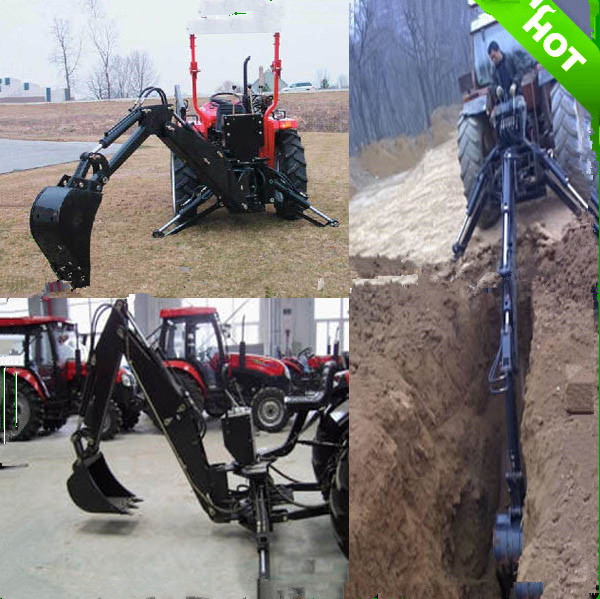

1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction
and building roads.

2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick
mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation.

3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected and mounted
on it.

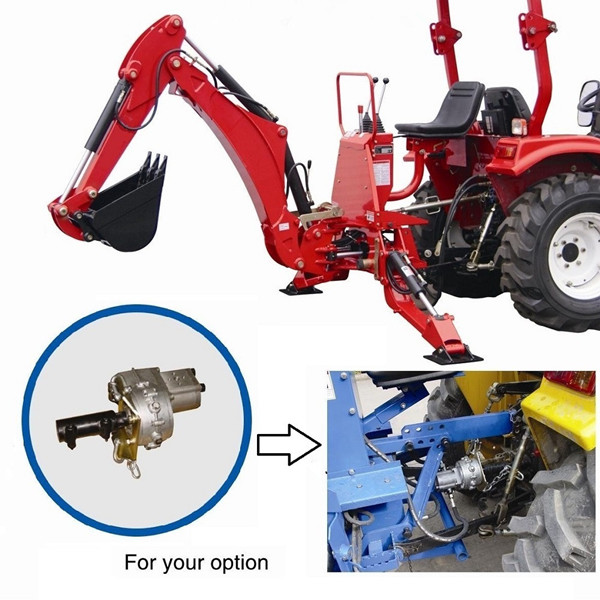

4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank
Specification Detail

Model	LW—8	LW—9	LW—10	LW—12
Matched Power	45-85hp	50-100 hp	70—125hp	80-150hp
Max Digging Deep	2640 mm	2900 mm	3000 mm	3500mm
Digging depth on ground	2500 mm	2760 mm	2800 mm	3350mm
Max Digging Height	3510 mm	3900 mm	4000 mm	4300mm
Max Unloading Height	2000 mm	2327mm	2362 mm	2700mm
Loading Height	1952 mm	2413 mm	2540 mm	2770mm
Max Digging Radius	3930 mm	3977 mm	3986 mm	4300
Digging Force	1600 kg	1900 kg	2600 kg	2700
Digging Force for Digging Stick	1000 kg	1270 kg	1720 kg	1900
Swing Angle for Bucket	160°	150°	150°	172°
Swing Angle for Boom	140°	160°	160°	180°
Operation Pressure	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket Width	450 mm	480 mm	500 mm	550 mm
Bucket Cubage	0.048 m3	0.054 m3	0.06 m3	0.07 m3
