Products > Mini Backhoes > > LW-10 Three Point Hitch Backhoe for Tractor

Product name : LW-10 Three Point Hitch Backhoe for Tractor

Product No. : 202177152849

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

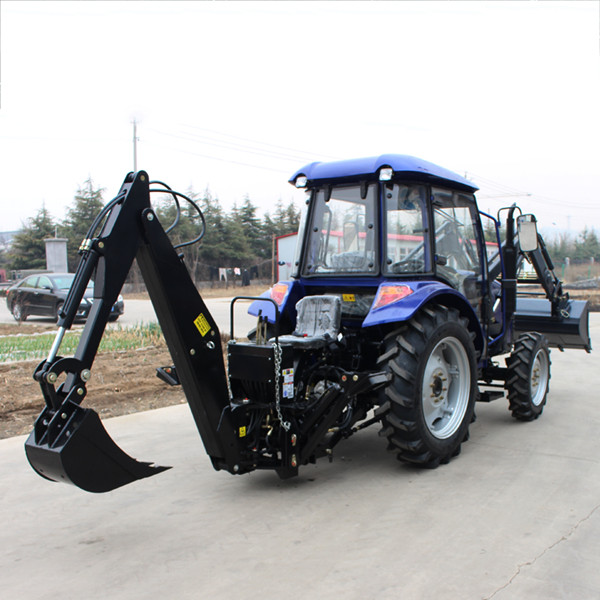

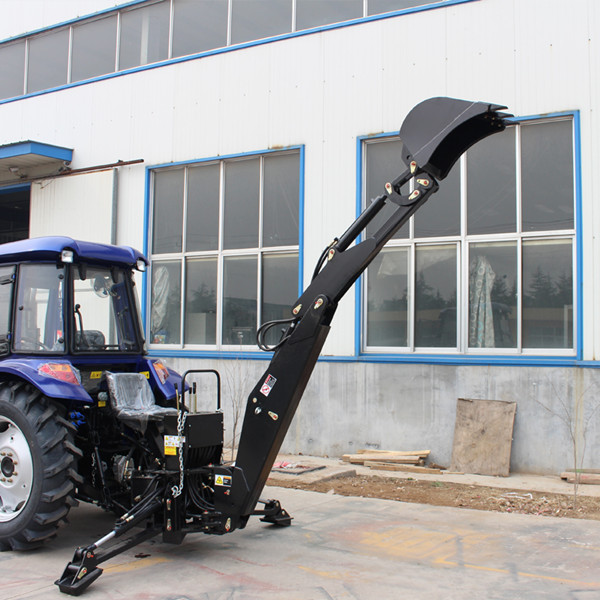

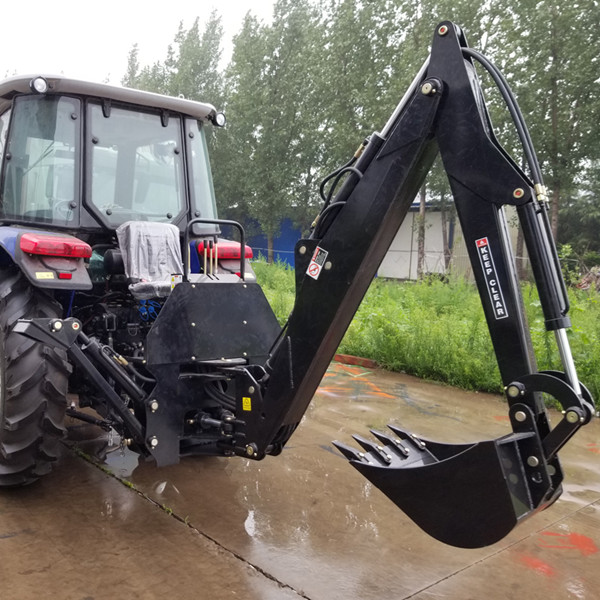

LW-10 Three Point Hitch Backhoe for Tractor

Product Description

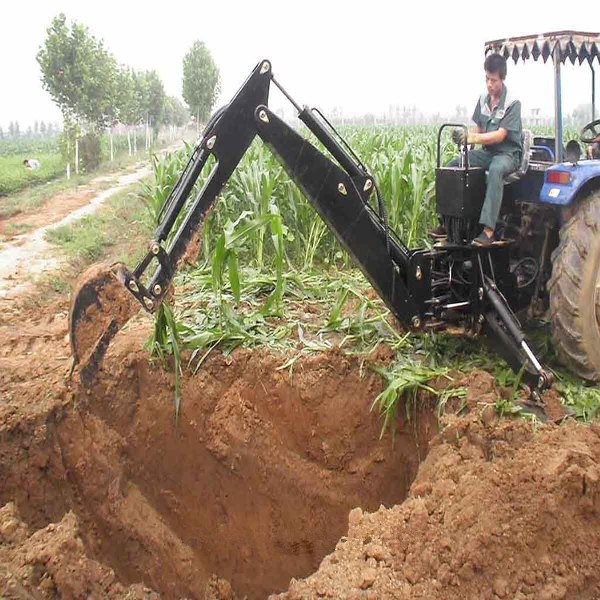

1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in
construction and building roads.

2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation
and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized,
convenient for operation.

3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected
and mounted on it.

4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank
Specification Detail

Model	LW—6	LW—7	LW—8	LW—9	LW—10	LW—12
Matched Power	16-35 hp	25-75 hp	45-85hp	50-100 hp	70—125hp	80-150hp
Max Digging Deep	1850 mm	2150 mm	2640 mm	2900 mm	3000 mm	3500mm
Digging depth on ground	1600 mm	2000 mm	2500 mm	2760 mm	2800 mm	3350mm
Max Digging Height	2500 mm	3400 mm	3510 mm	3900 mm	4000 mm	4300mm
Max Unloading Height	1400 mm	1760 mm	2000 mm	2327mm	2362 mm	2700mm
Loading Height	1733 mm	1878 mm	1952 mm	2413 mm	2540 mm	2770mm
Max Digging Radius	2800 mm	3360 mm	3930 mm	3977 mm	3986 mm	4300
Digging Force	1300 kg	1200 kg	1600 kg	1900 kg	2600 kg	2700
Digging Force for Digging Stick	790 kg	950 kg	1000 kg	1270 kg	1720 kg	1900
Swing Angle for Bucket	160°	160°	160°	150°	150°	172°
Swing Angle for Boom	140°	140°	140°	160°	160°	180°
Operation Pressure	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket Width	300 mm	400 mm	450 mm	480 mm	500 mm	550 mm
Bucket Cubage	0.03 m3	0.036 m3	0.048 m3	0.054 m3	0.06 m3	0.07 m3
