Products > Mini Backhoes > > Mini 3 Point Towable Backhoe LW-6

Product name : Mini 3 Point Towable Backhoe LW-6

Product No. : 202176181129

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

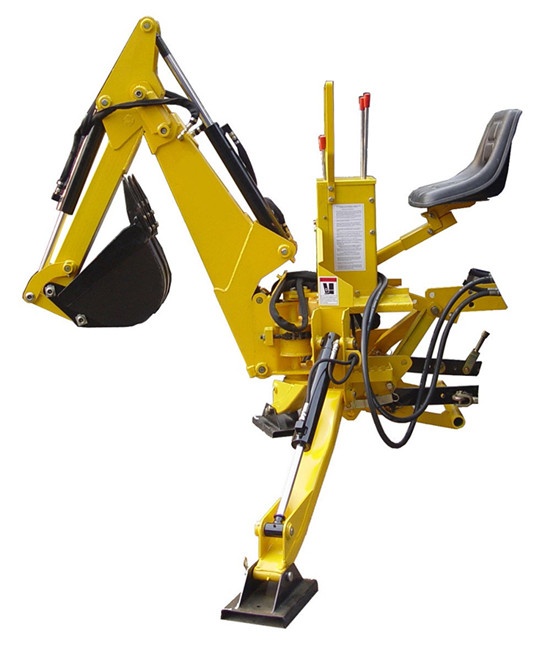

Mini 3 Point Towable Backhoe LW-6

Product Description

1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction
and building roads.

2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick
mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation.

3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected and
mounted on it.

4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank.
Specification Detail

Model		LW-6
Specification		Inch	Metric
Tractor HP		25-45HP
3-point Linkage		Cat-1
Structure Weight		1060lb	480kg
A	Digging Depth(two foot flat bottom)	5.74’	1750mm
B	Reach from center line of Swing pivot	8.53'	2600mm
C	Loading Height(bucket at 60°)	5.64’	1720mm
D	Transport Height(maximum)	6.03’	1840mm
E	Extend Height	9.41'	2870mm
F	Loading Reach(bucket at 60°)	3.11’	950mm
G	Transport Overhang	3.54'	1080mm
H	Undercut	2.4'	730mm
I	Bucket Rotation	180°
J	Stabilizer Spread(up position)	4.3’	1310mm
K	Stabilizer Spread(down position)	4.3’	2100mm
L	Swing Arc	180°
M	Bucket width	300mm
N	Bucket cubage	0.036
