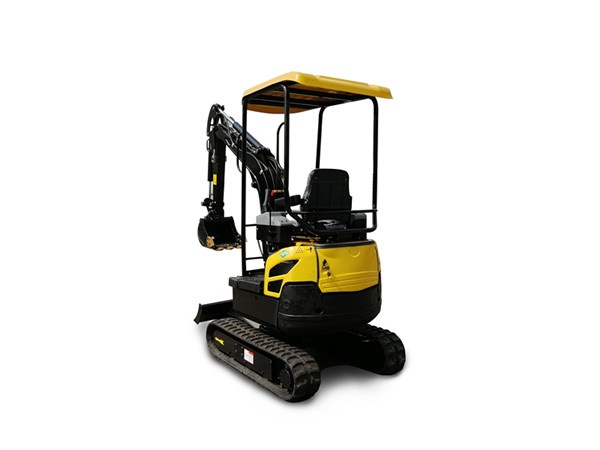

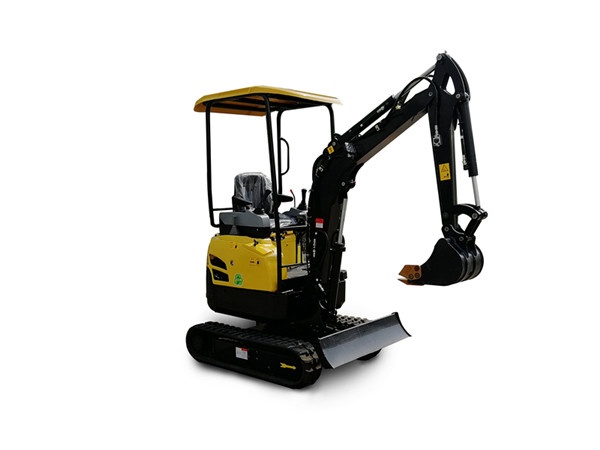

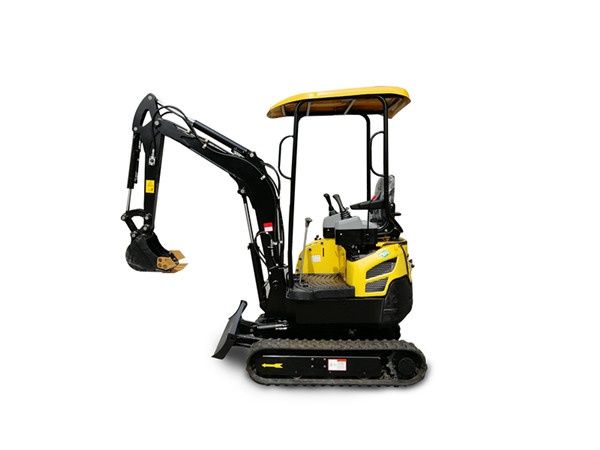

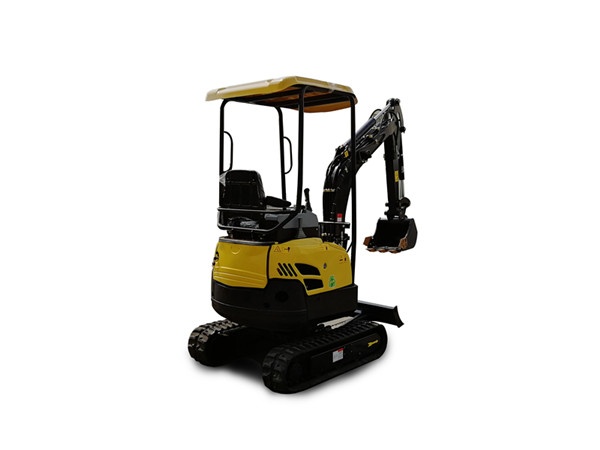

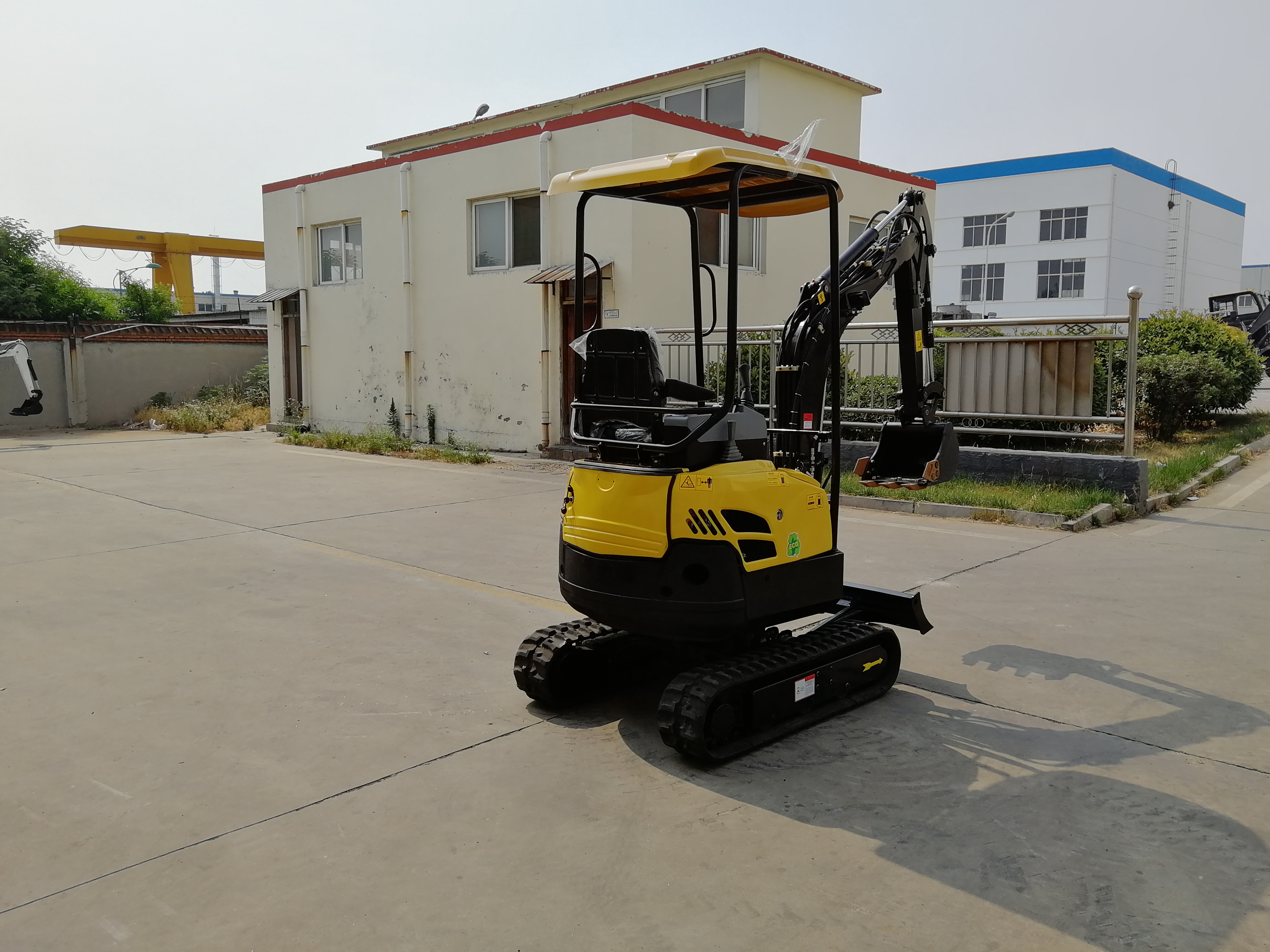

2ton Crawler Excavator with CE
Our products are smart and superior in performance, low in fuel consumption and achieve wide range of operation .
Our products are suitable for narrow space construction work such as ditch digging, concrete pavement crushing, sand and stone mixing, municipal garden greening, orchard nursery trenching and digging.
The fuselage can be rotated at 360 degrees and the side pendulum of the large arm is convenient and flexible, and the construction is fast.
1. The engine is optional according to your demands.
2. It is easy to operate, small and flexible, convenient transportation, it can work in a narrow space.
3. It has many functions such as excavating, breakage, ditch cleaning, drilling and so on. It can quickly replace the accessories . The utilization rate of the machine is greatly improved.
4. The fuselage can be rotated in 360 degrees with the adjustable dozer blade and the side pendulum of the big arm can be realized.
5. It is optional to match the hydraulic breaker, log grapple, auger and some other attachments to achieve smooth and efficient operation, and the world level of security performance.
| TYPE |
KV20 |
| WEIGHT(T) |
1.88 |
| BUCKET CAPACITY(M3) |
0.045 |
| WORKING METHOD |
BACKHOE |
| ENGINE MODEL |
YANMAR 3TNV74 |
| RATED POWER(KW/RMP) |
10KW/2200/R/MIN |
| SYSTEM PRESSURE(MPA) |
22 |
| BACK SPEED(RMP) |
10-12 |
| MAX CLIMBING ANGLE |
30 degree |
| WALKING SPEED(KM/H) |
3.4/1.9 |
| HYDRAULIC OIL TANK VOLUME(L) |
15.3 |
| FUEL TANK(L) |
19 |
| WHOLE HEIGHT(MM) |
2170 |
| MAX.GROUND DIG RADIUS(MM) |
3700 |
| MAX.DIG DEPTH(MM) |
2150 |
| MAX.DIG HEIGHT(MM) |
3275 |
| MAX.UNLOADING DEPTH(MM) |
2385 |
| MAX.VERTICAL DIG DEPTH(mm) |
1740 |
| DOZER BLADE MAX LIFTING HEIGHT(MM) |
275 |
| DOZER BLADE MAX DIGGING DEPTH(MM) |
180 |
