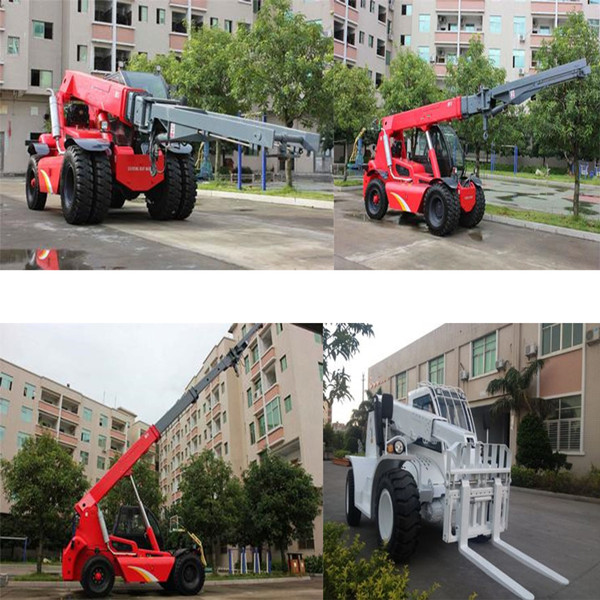

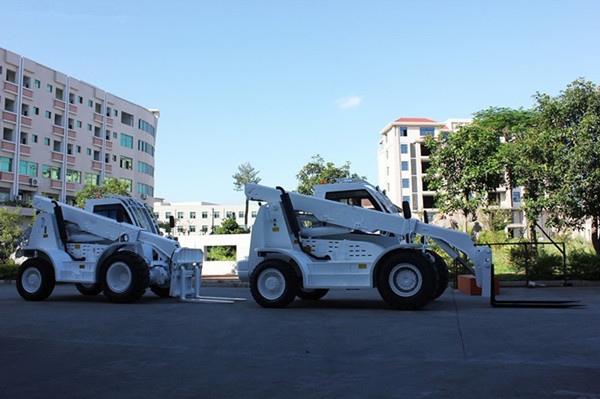

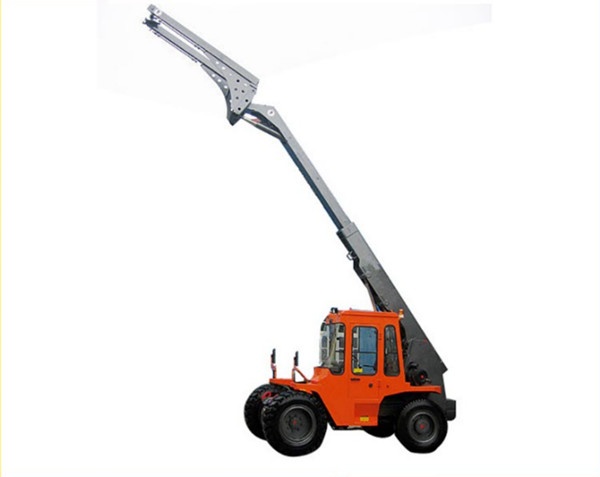

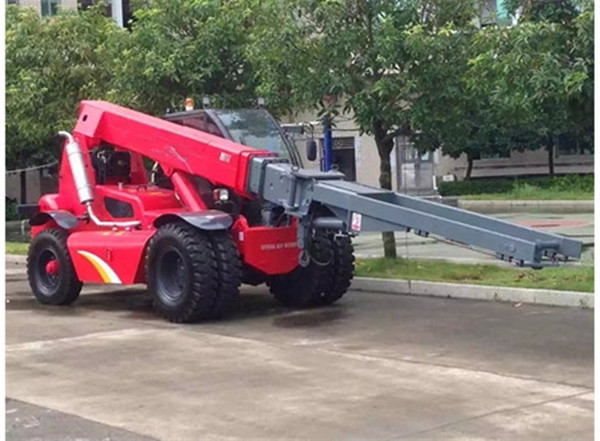

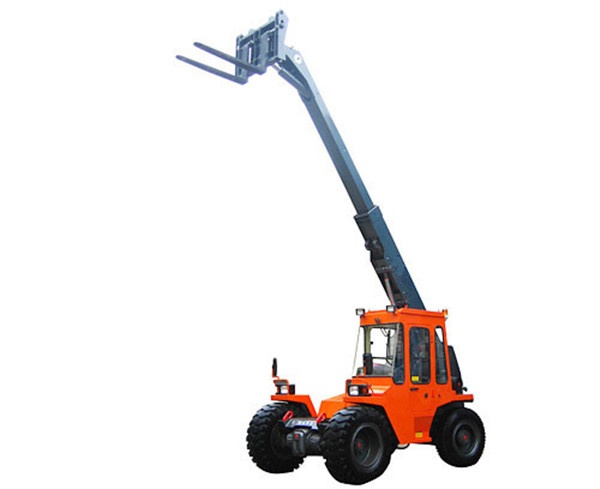

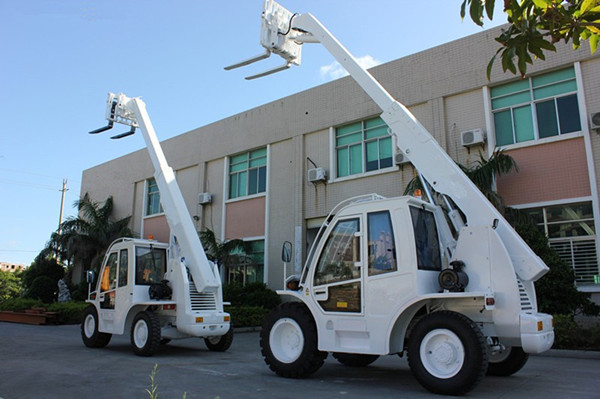

2.5ton Telescopic Forklift Loader

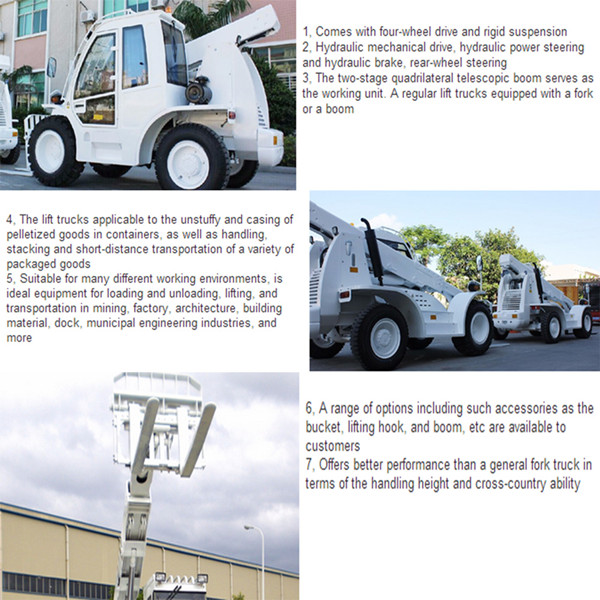

Our HNT25 telescopic loader comes with two/four-wheel drive and rigid suspension. The 2.5T telehandler
provides hydraulic-mechanical transmission, hydraulic power steering, hydraulic braking and rear-wheel
steering. The two-stage quadrilateral telescopic boom serves as the working unit. A regular loader is equipped
with a fork or a boom. In addition, a range of options including such accessories as the bucket, lifting hook,
and boom, etc. are available to customers. The telescopic loader offers better performance than a general
fork truck in terms of the handling height and cross-country ability.

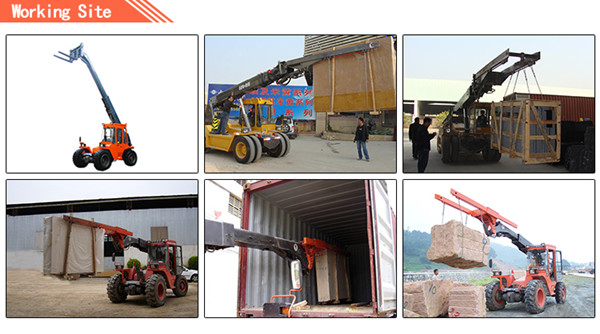

The telescopic loader is applicable to the unstuffing and of palletized goods in containers, as well as handling,
stacking and short-distance transportation of a variety of packaged goods. The telescopic loader, suitable for
many different working environments, is ideal equipment for loading and unloading, lifting, and transportation
in mining, factory, architecture, building material, dock, municipal engineering industries, and more.
|
Item
|
Unit
|
HNT25-2
|
HNT25-4
|
|
Rated lifting capacity
|
Kg
|
2500
|
2500
|
|
Lifting capacity at maximum extension
|
Kg
|
1000
|
1000
|
|
Max. lifting height of basic boom
|
Mm
|
4300
|
4300
|
|
Max. lifting height at full extension of the boom
|
Mm
|
6000
|
6000
|
|
Max. traveling speed
|
Km/h
|
28
|
28
|
|
Min. ground clearance
|
Mm
|
310
|
310
|
|
Min. turning diameter (center of outer wheel)
|
Mm
|
10000
|
12500
|
|
Gradeability
|
%
|
20
|
30
|
|
Deadweight
|
Kg
|
7100
|
7100
|
|
Overall dimensions (L * W * H)
|
Mm
|
5560*2270*2560
|
5560*2270*2560
|
|
Engine
|
Model
|
|
Dongfeng Cummins 4BT3.9-C80
|
Dongfeng Cummins 4BT3.9-C80
|
|
|
Rated power
|
Kw
|
60
|
60
|
|
|
Rated speed
|
r/min
|
2000
|
2000
|
|
Tyre
|
Front wheel
|
|
16/70-20
|
16/70-20
|
|
|
Rear wheel
|
|
8.25-15
|
8.25-20-14
|
