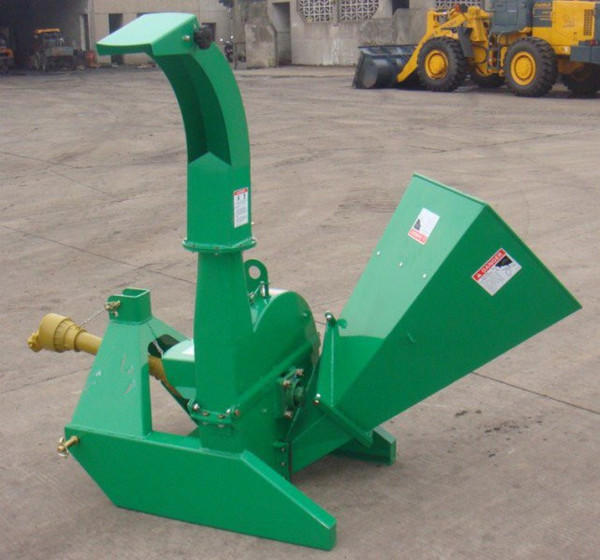

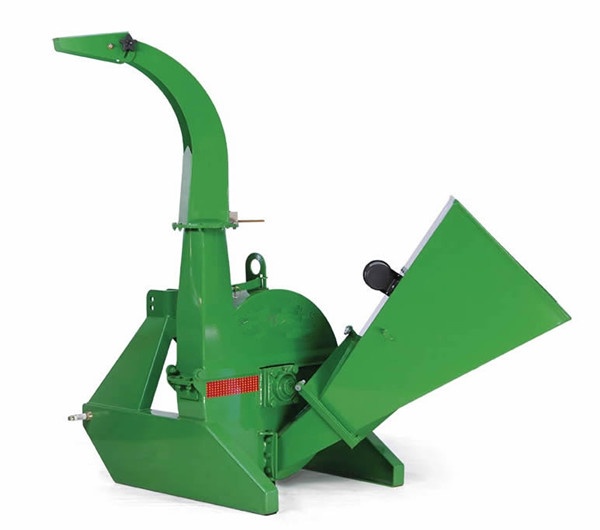

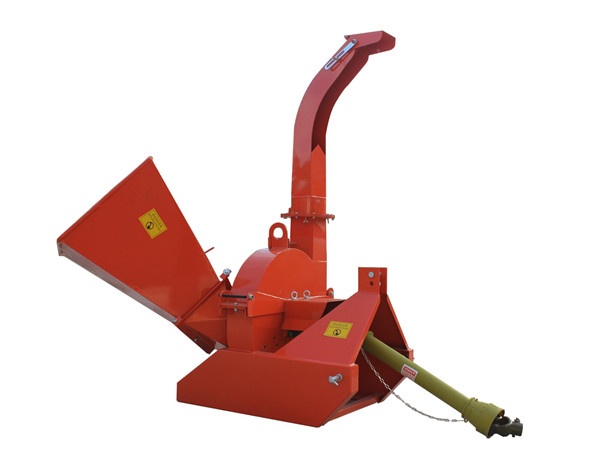

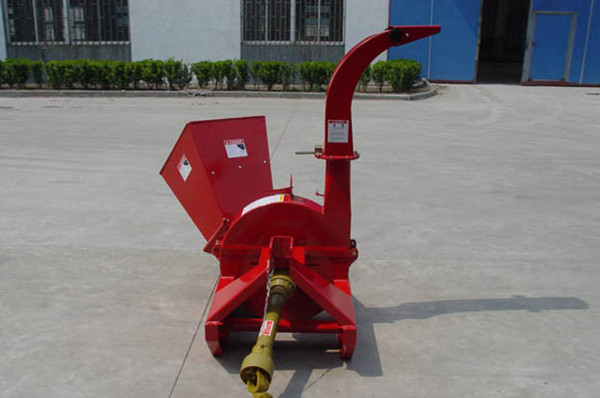

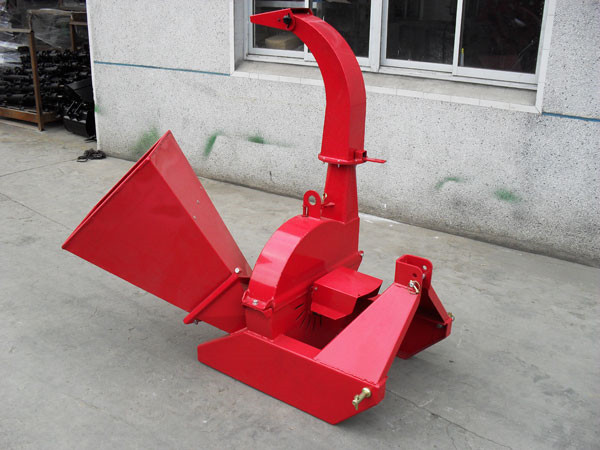

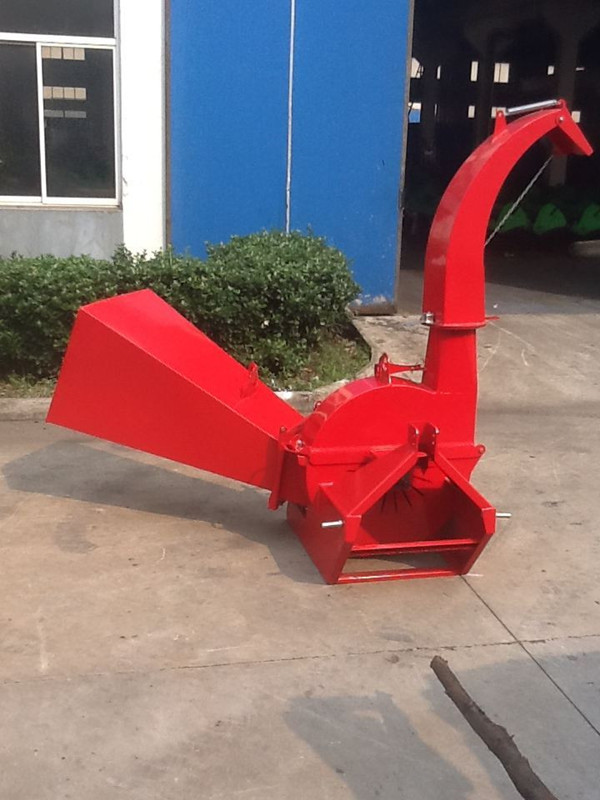

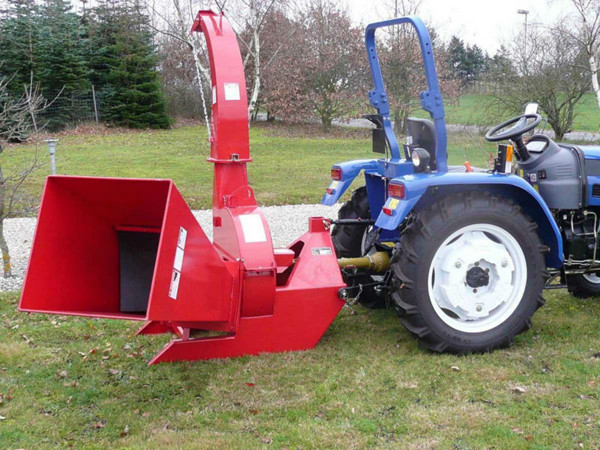

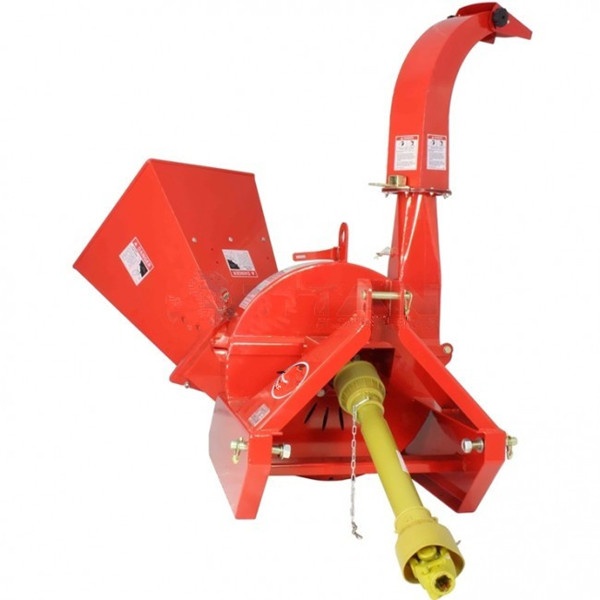

BXS Series Wood Chipper

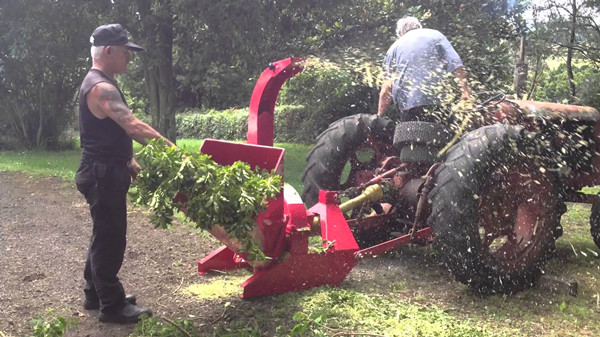

BXs Series wood chipper has a direct drive rotor with the hopper mounted at an angle to the rotor this
controls the flow of branches, limbs and brush for continuous chipping at maximum capacity. The brush
is dragged into the chipper by the blade pulling at it as it cuts , so you can be ready with the next piece,
keeping your hands well away from the business end in the process. The feed chute folds up easily and

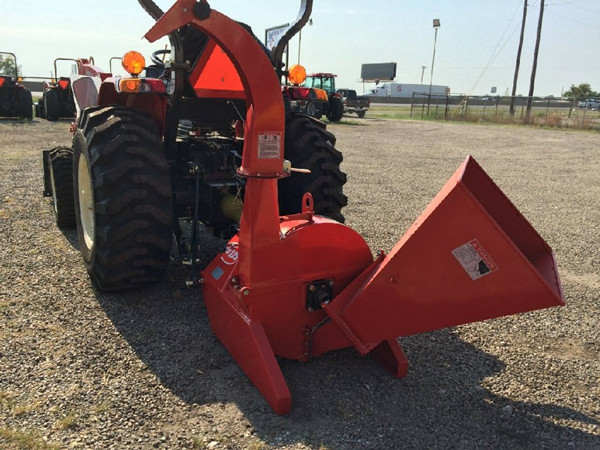

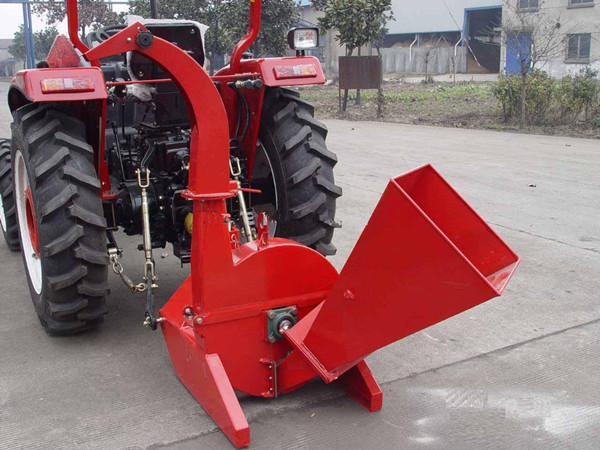

securely, making it easy to travel with on narrow paths and to store in the shed. If you have a compact
tractor in the 18-50/30-100 Hp range this wood chipper is perfect , Just needed small farms and lifestyle blocks.
BXS Series Wood Chipper-3PH,Self-Feed, 4-6" Diameter Capacity
|
BXs Series Parameters
|
BX42s
|
BX62s
|
|
Drive System
|
Direct drive, PTO
|
Direct drive, PTO
|
|
HP requirements for max. cap.
|
35-40
|
60-70
|
|
HP Range
|
18-50
|
30-100
|
|
Chipper Capacity
|
4" Dia.
|
6" Dia.
|
|
Chipper Housing Opening
|
4" x 10"
|
6.5" x 12"
|
|
Rotor Size
|
25”
|
30"
|
|
Number of Rotor Knives
|
4
|
4
|
|
Knife Type
|
Hardened tool steel
|
Hardened tool steel
|
|
Feeding System Feed
|
Self Feed
|
Self Feed
|
|
Mounting System
|
3 Point Hitch
|
3 Point Hitch
|
|
Dimensions (Hopper Folded)
|
40"L x 42"W x 60"H
|
50"L x 52"W x 74"H
|
|
Hopper Opening
|
20" x 20"
|
25" x 25"
|
|
Discharge Hood Rotation
|
360°
|
360°
|
|
Discharge Hood Height
|
60"
|
74"
|
|
Rated RPM
|
540-1000
|
540-1000
|
|
Weight
|
200kgs
|
350kgs
|
