Products > Mini Backhoes > > Backhoe for Tractor

Product name : Backhoe for Tractor

Product No. : 2017223131155

←[Previous Product]

Online Inquiry Email Us

Details:

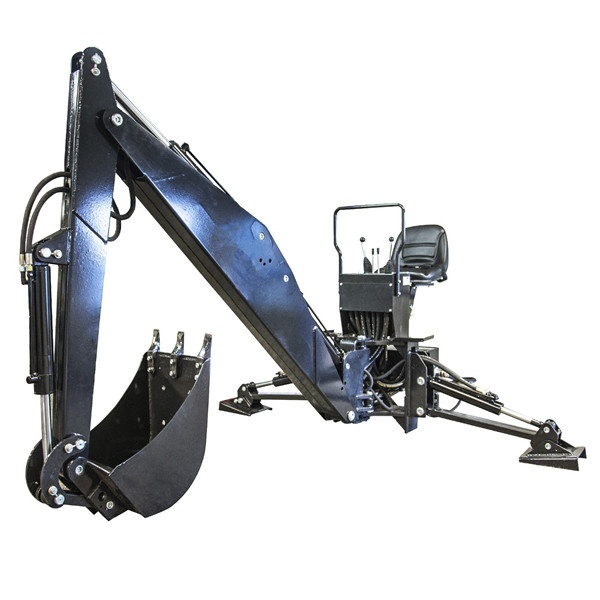

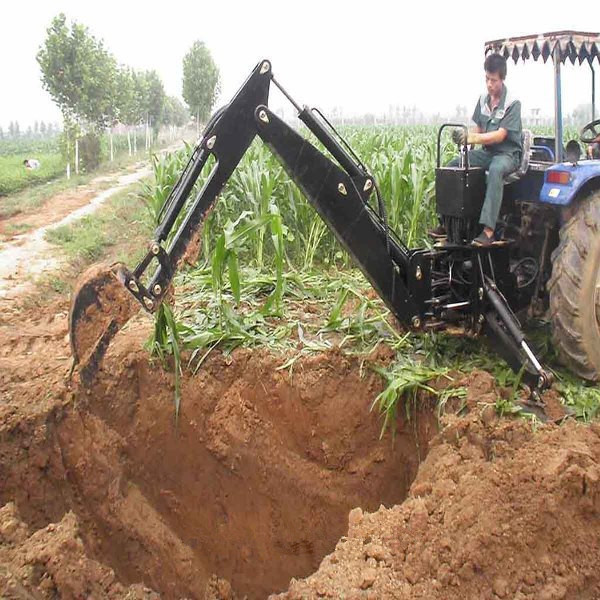

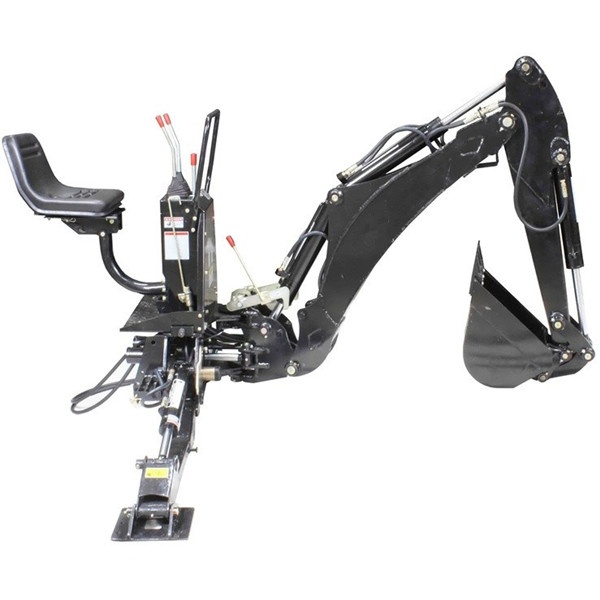

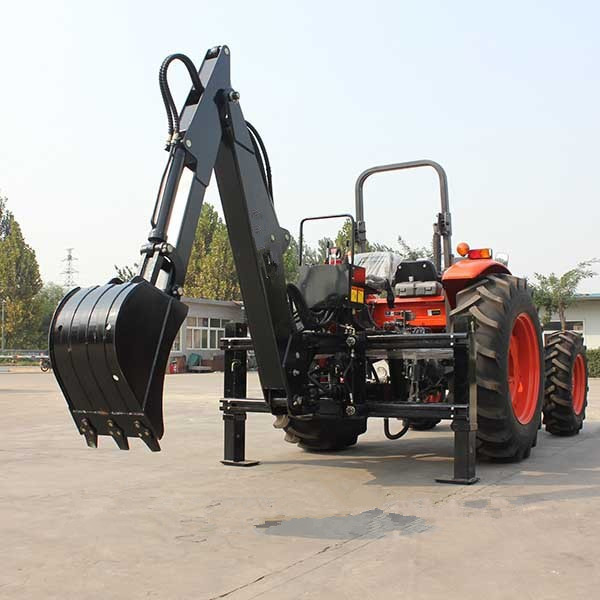

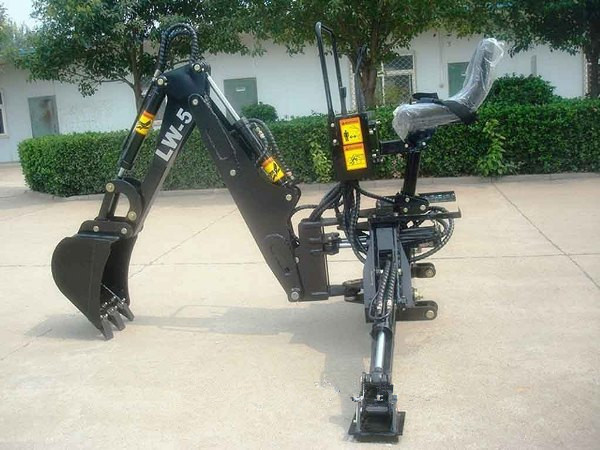

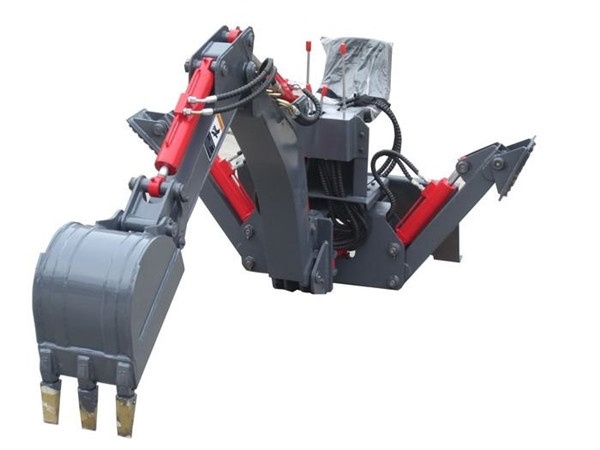

Backhoe for Tractor

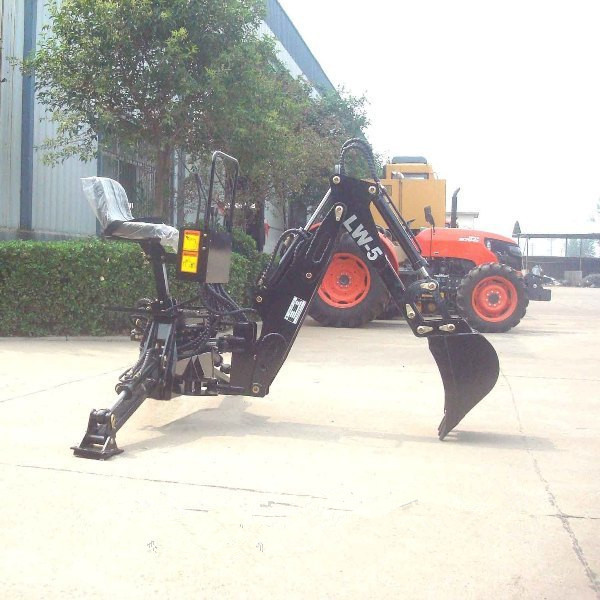

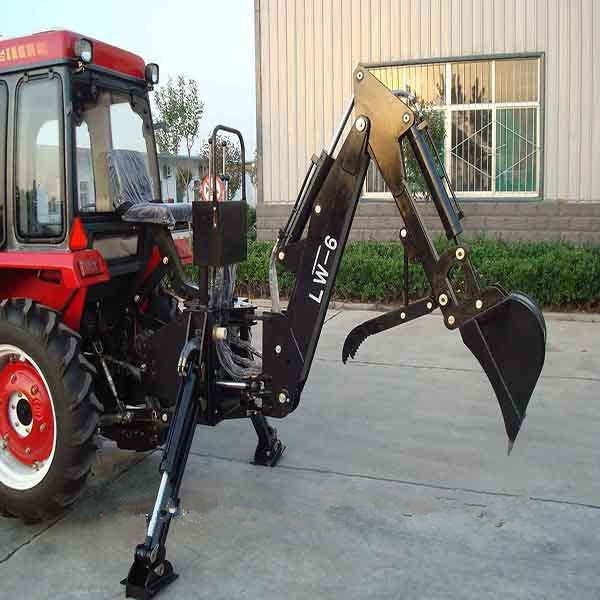

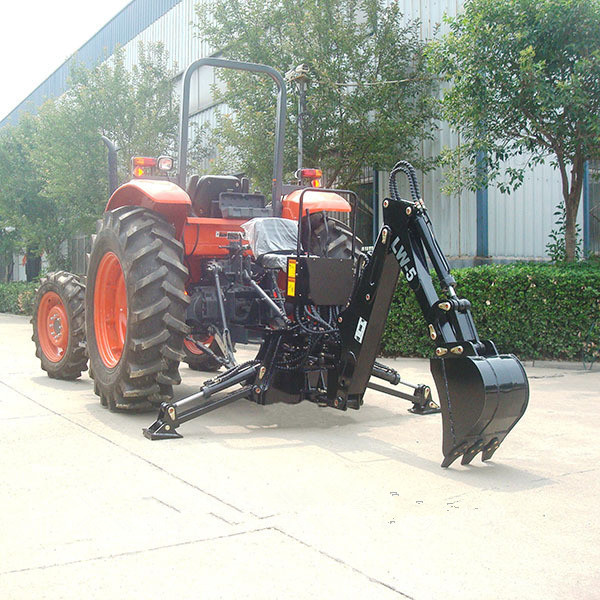

Model	LW-5	LW-6	LW-7	LW-8	LW-9	LW-10	LW-12
Matching Tractor(HP)	15-25	20-35	30-55	50-90	55-100	70-120	100-180
Max.Digging Depth (mm)	1650	2000	2400	2800	2900	3200	3655
Max.Unloading Height (mm)	1530	1860	2050	2380	2413	2650	3627
Max.Digging Height(mm)	2600	2970	3210	3460	3900	3770	5040
Working Radius (mm)	2300	2700	3140	3600	3977	3920	4510
Ground Clearance(mm)	450	450	450	500	500	500	700
Min.Transporting Width(mm)	1150	1700	1700	1700	1780	1850	2100
Max.Width of Supporting legs(mm)	2100	2200	2200	2200	2250	2300	2550
Standard Bucket Width (mm)	200-350	360	408	460	480	510	550-580
Bucket Capacity(m³）	0.03	0.04	0.05	0.06	0.055	0.07	0.13

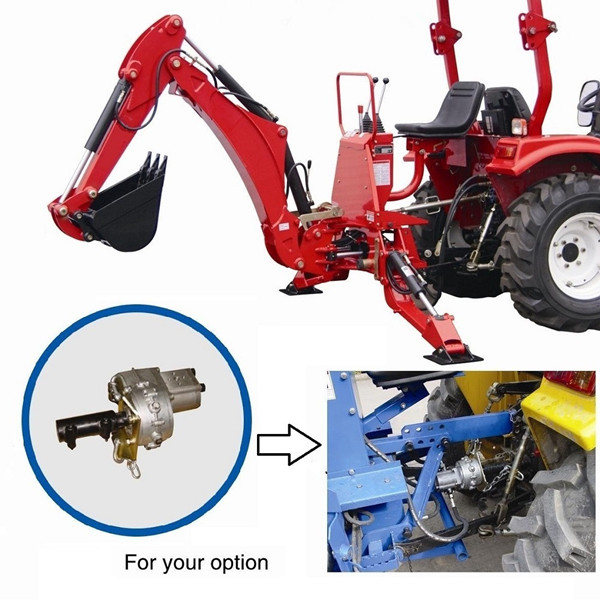

PTO Hydraulic system	6/8/21 (usual 6) Spline, Hydraulic Pump, Gearbox, Oil tank, Tubing
Net Weight(kg）	360	550	560	630	800	1000	1500
