Products > Farm Implements > > Front End Loader for Tractor

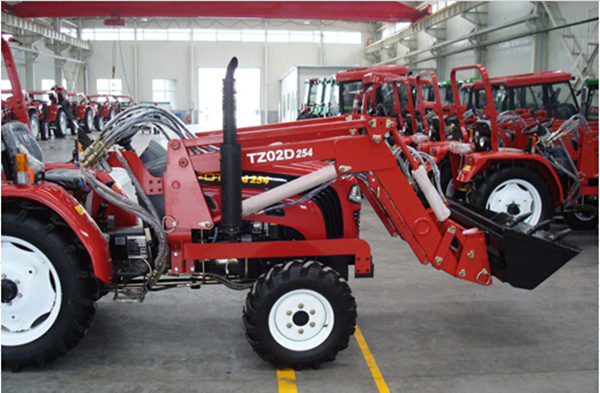

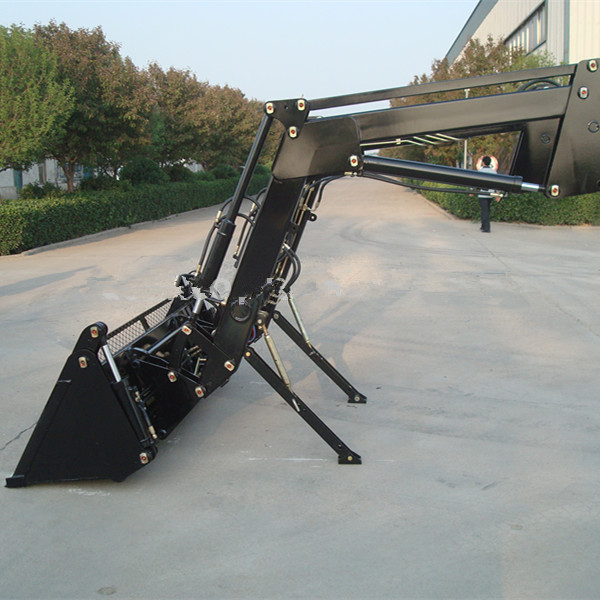

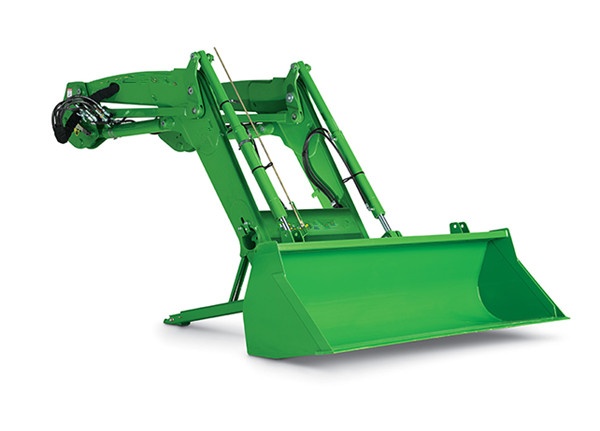

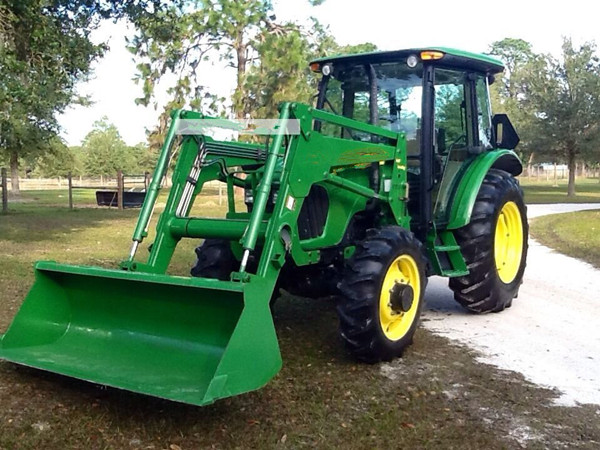

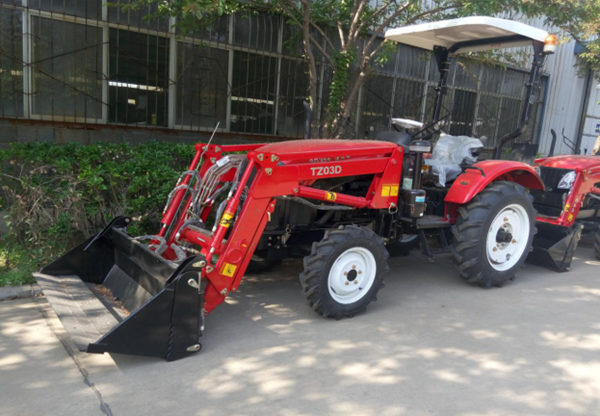

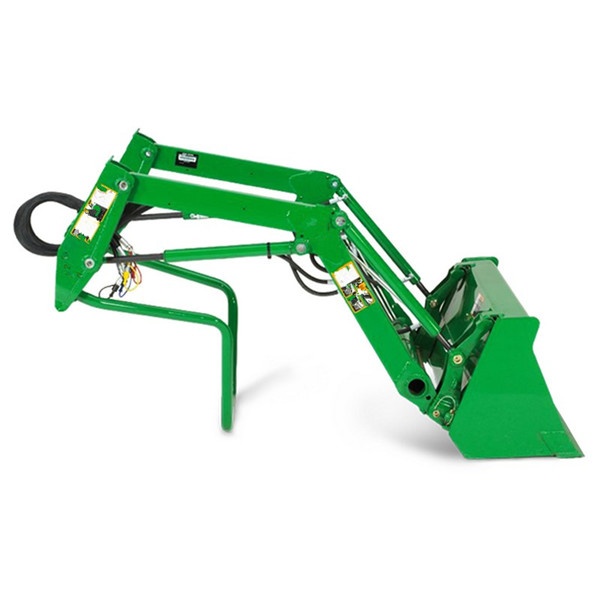

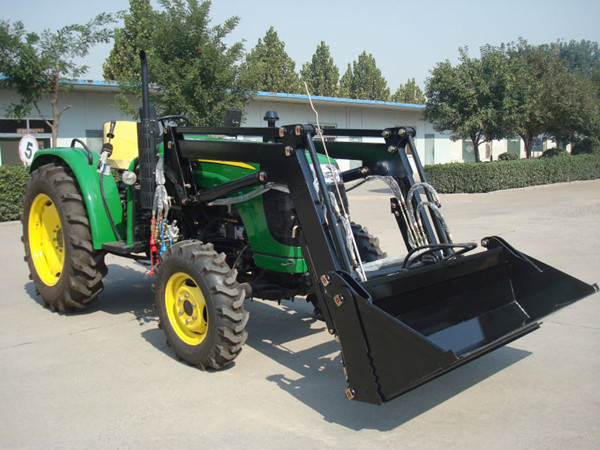

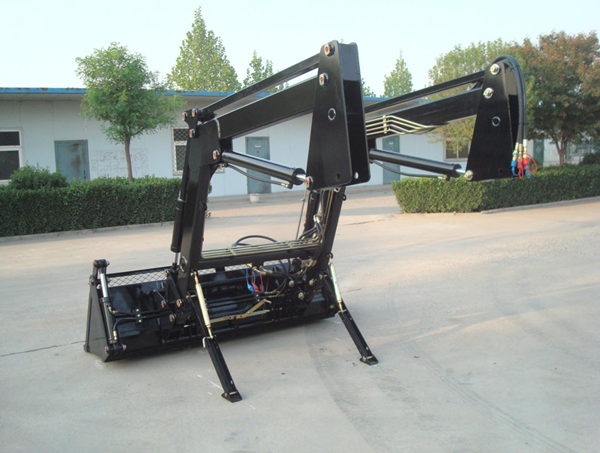

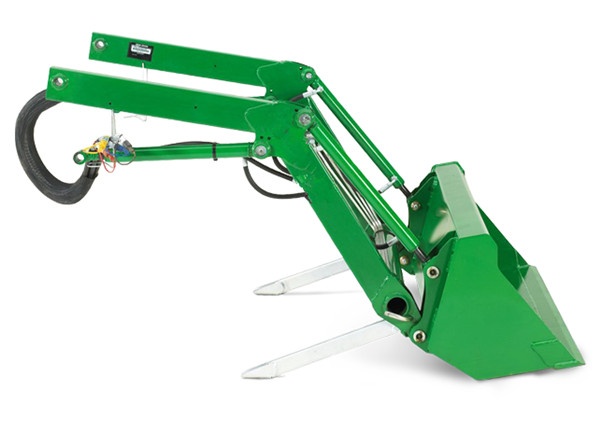

Product name : Front End Loader for Tractor

Product No. : 20172231155

Online Inquiry Email Us

Details:

Front End Loader for Tractor

Model	Unit	TZ02D	TZ03D	TZ04D	TZ06D	TZ08D	TZ10D	TZ12D	TZ16D
Matching Tractor	HP	15-25	20-40	30-55	45-60	55-75	70-100	90-140	140-180
Rated Lifting Capacity	kg	200	300	400	600	800	1000	1200	1600
Max.Lifting height	mm	2350	2550	2740	3010	3400	3710	3970	4260
Max.Dumping Height	mm	1730	1840	2100	2370	2480	2720	3000	3200
Overloading height	mm	2170	2370	2560	2830	3220	3490	3770	4000
Dumping distance	mm	370	500	600	640	690	740	900	900
Ground Clearance	mm	1120	1200	1360	1500	1630	1780	1930	1930
Digging depth	mm	90	100	100	120	140	180	200	2500
		1821	224	2144	2150	1997	2308	2403	2620
Max.lifting force	kg	1184	1474	1321	1286	1187	1452	1690	1850
Bucket width	mm	1250	1250	1400	1500	1600	1700	2000	2400
Bucket Capacity	m³	0.16	0.18	0.21	0.35	0.4	0.44	0.7	1.6
Max.Tip in Angle	°	48	48	48	48	54	54	54	54
Dump Angle	°	52	58	58	58	58	58	58	58
Crowd angle	°	140	135	135	135	135	145	145	145
Rated Lifting Capacity	kg	200	300	400	600	800	1000	1200	1600
